Home >> Lexus >> 2009 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Intake Manifold >> Service and Repair >> Components

Components








1UR-FSE INTAKE: INTAKE MANIFOLD: COMPONENTS

COMPONENTS

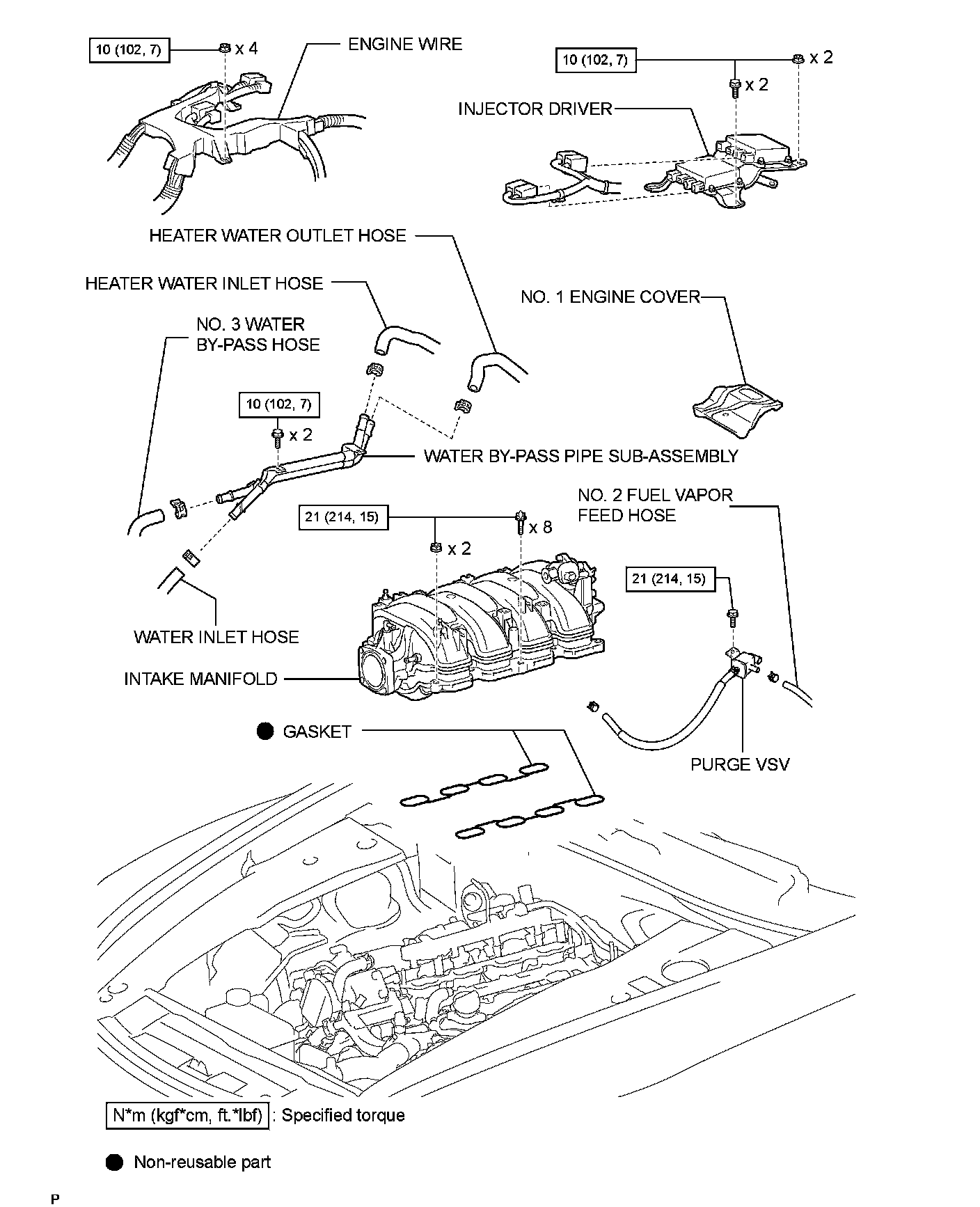

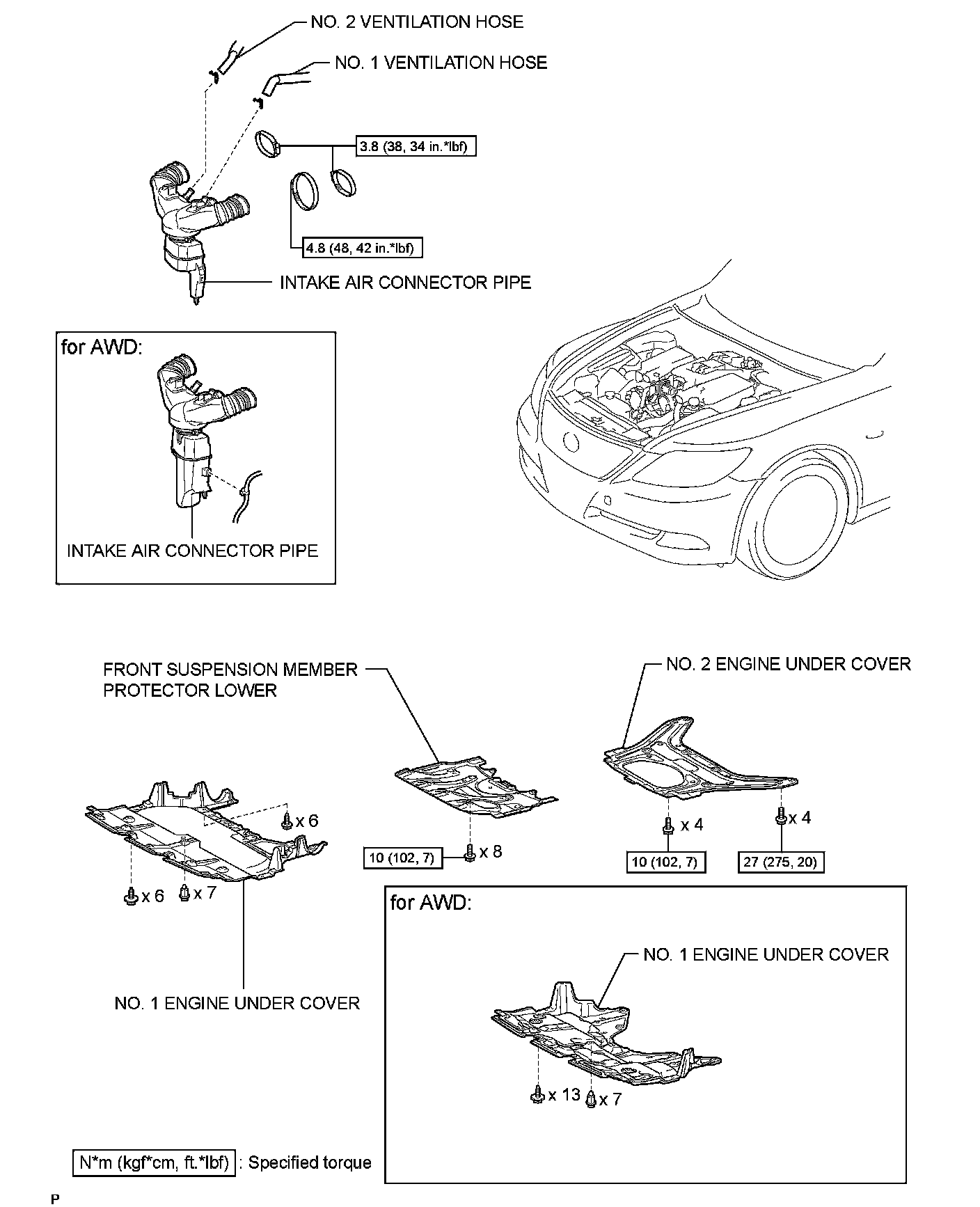

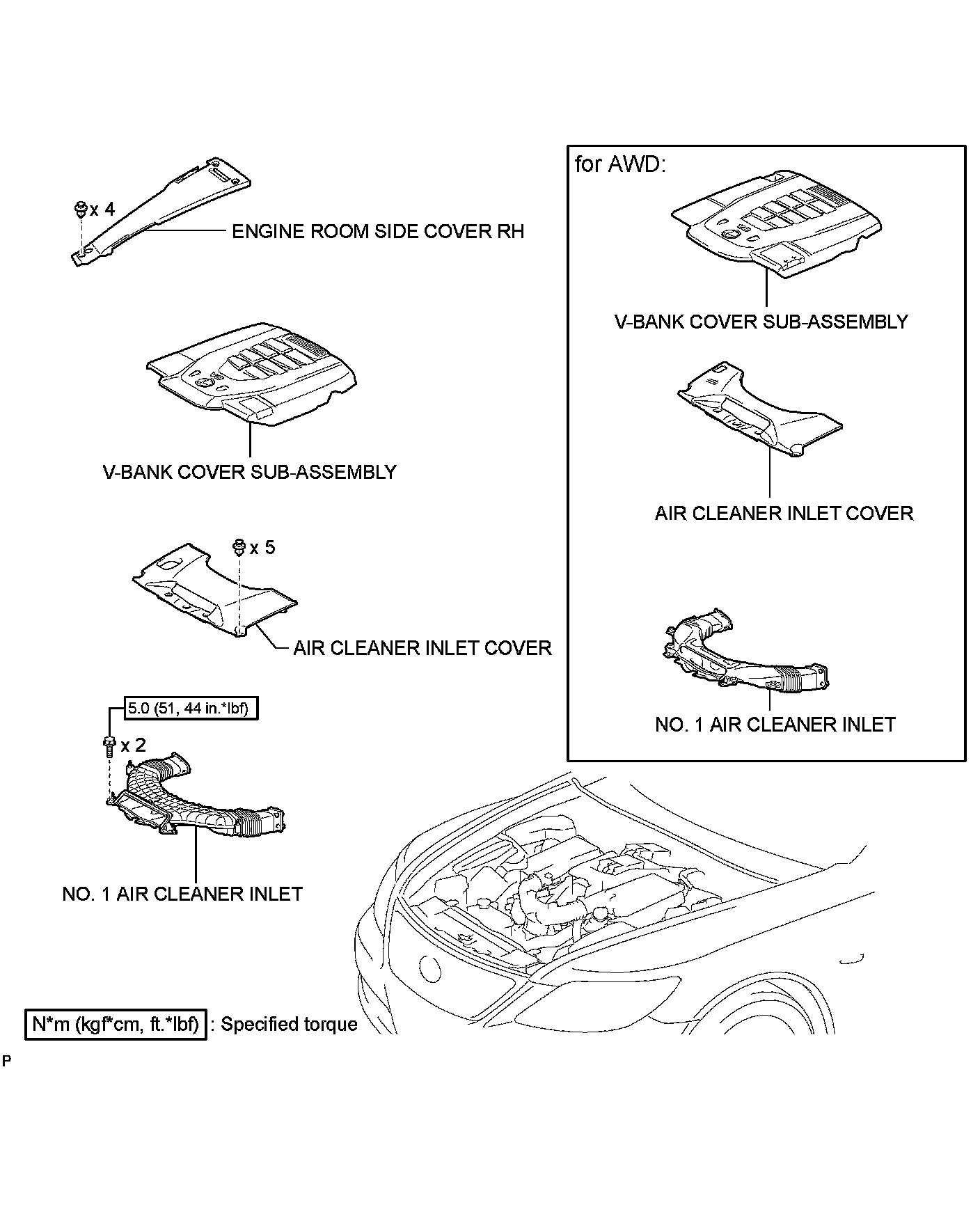

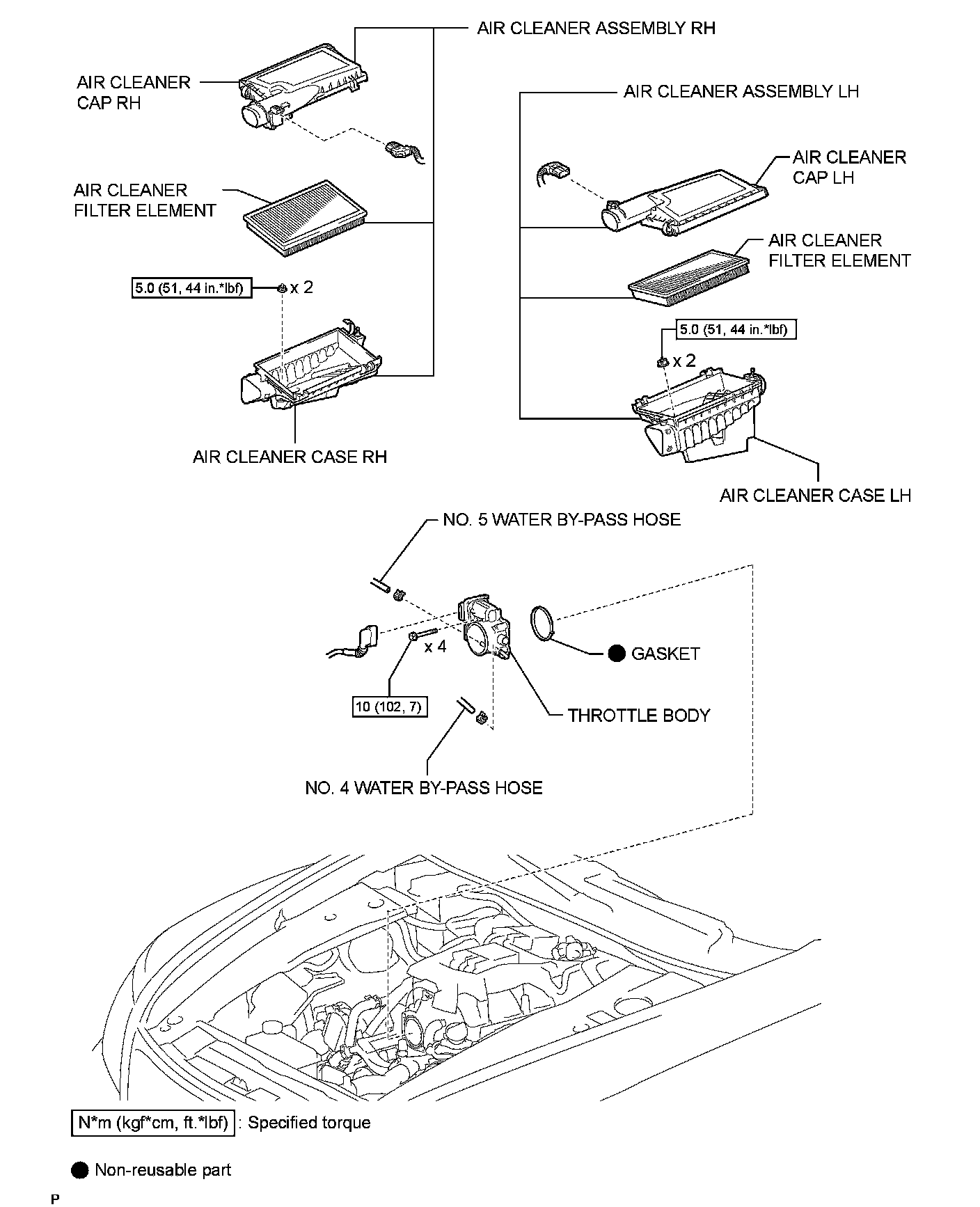

ILLUSTRATION
