1UR-FSE COOLING: THERMOSTAT: REMOVAL

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal
3. REMOVE NO. 1 AIR CLEANER INLET Removal
4. REMOVE ENGINE ROOM SIDE COVER RH Removal
5. REMOVE NO. 1 ENGINE UNDER COVER Service and Repair
6. DRAIN ENGINE COOLANT Service and Repair

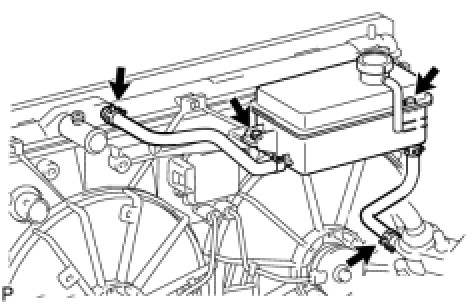

7. REMOVE RADIATOR RESERVOIR ASSEMBLY





(a) Disconnect the 2 reservoir hoses.
(b) Remove the 2 bolts and reservoir.
8. DISCONNECT NO. 2 RADIATOR HOSE
9. REMOVE WATER INLET SUB-ASSEMBLY WITH THERMOSTAT





(a) Remove the 3 nuts, water inlet with thermostat and gasket.
