Removal

1UR-FSE COOLING: COOLING FAN MOTOR (for AWD): REMOVAL

REMOVAL

1. REMOVE RADIATOR ASSEMBLY
(a) Remove the radiator from the vehicle Removal.
2. REMOVE FAN SHROUD WITH FAN AND MOTOR





(a) Remove the 2 bolts.
(b) Detach the claw, and then remove the fan shroud with fan and motor.
3. REMOVE FAN

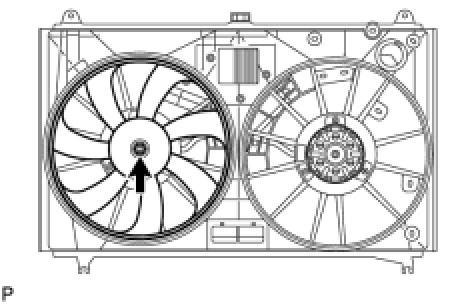

(a) Remove the nut and fan.
4. REMOVE NO. 2 FAN

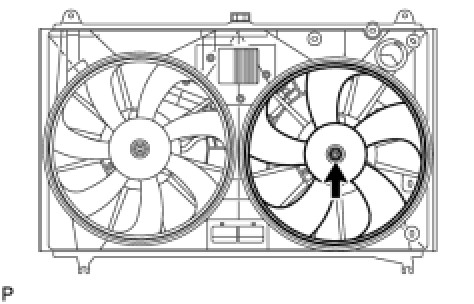

(a) Remove the nut and fan.
5. REMOVE COOLING FAN MOTOR

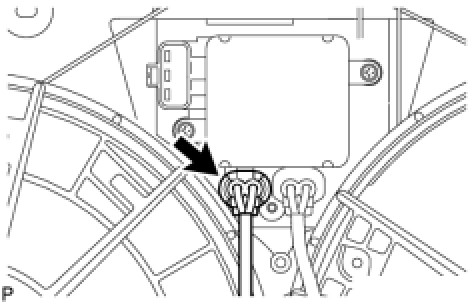

(a) Disconnect the connector.

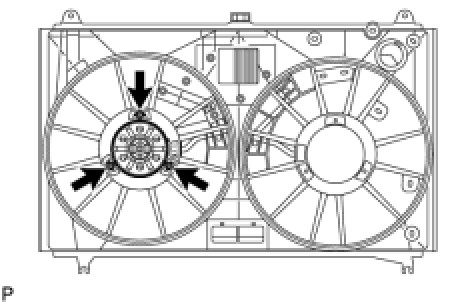

(b) Remove the 3 screws and motor.
6. REMOVE NO. 2 COOLING FAN MOTOR

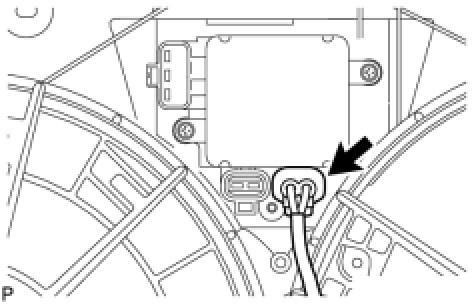

(a) Disconnect the connector.

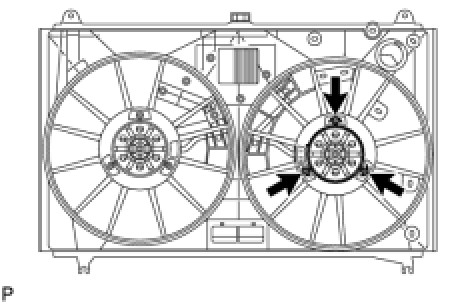

(b) Remove the 3 screws and motor.
