Audio System [w/ SDARS]

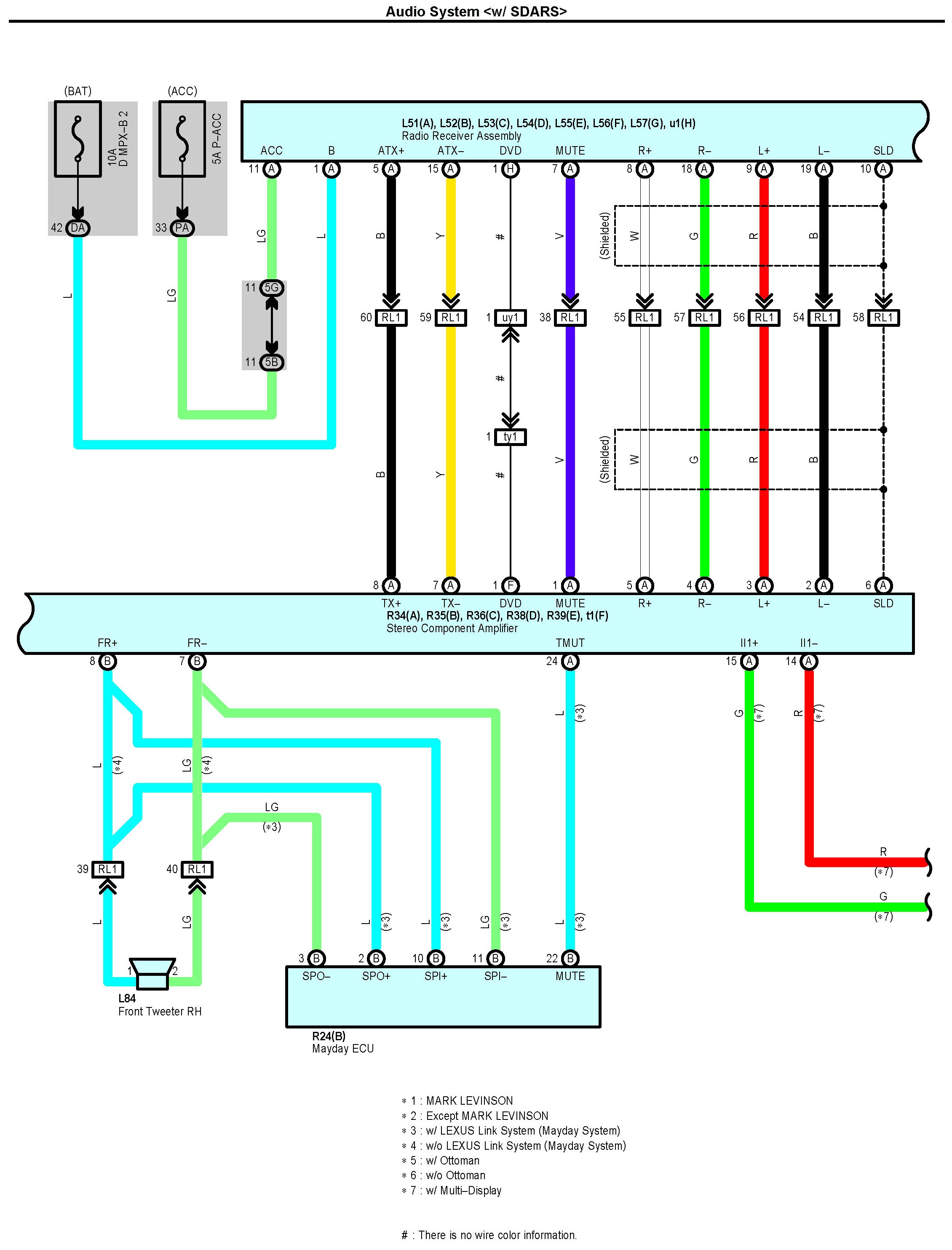

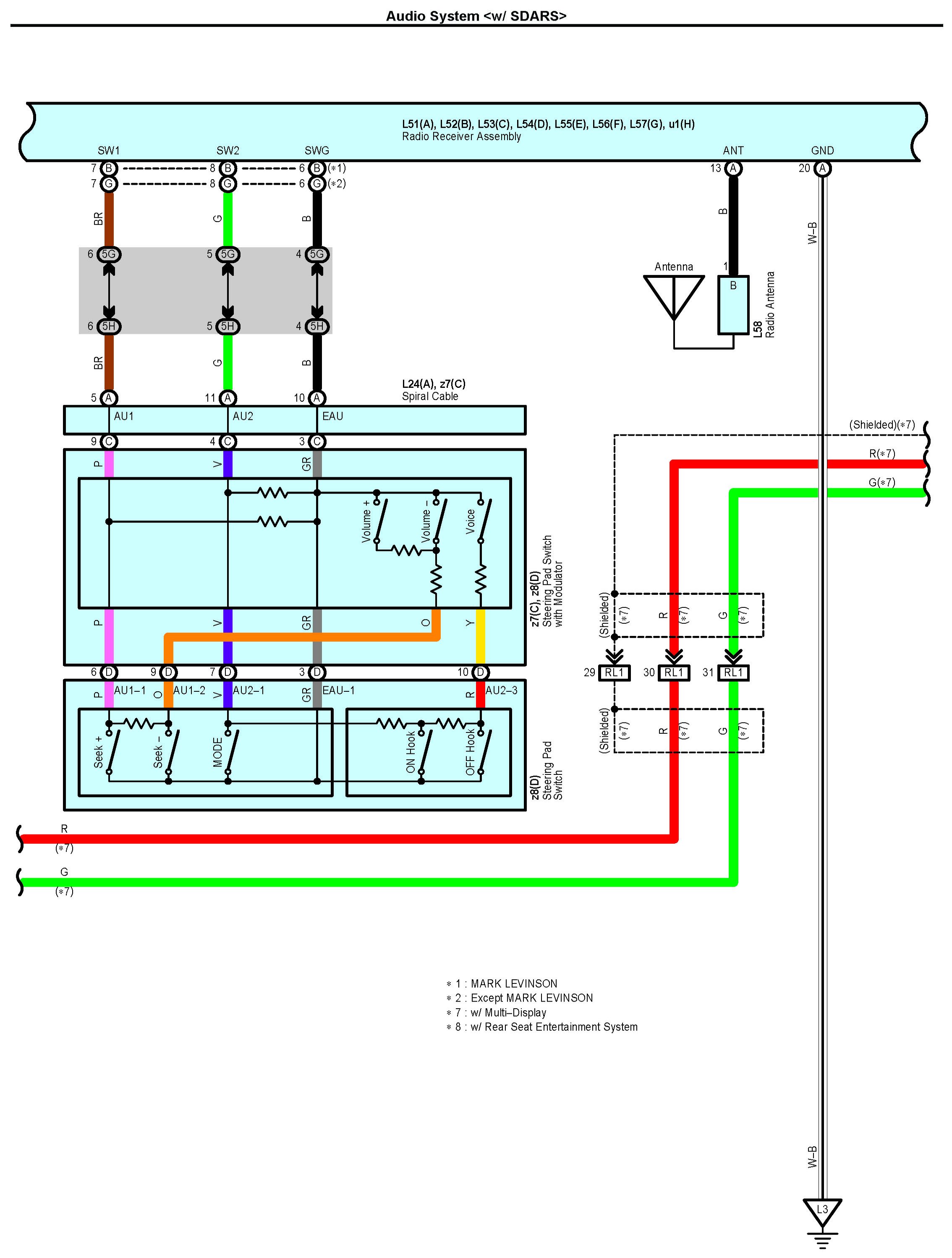

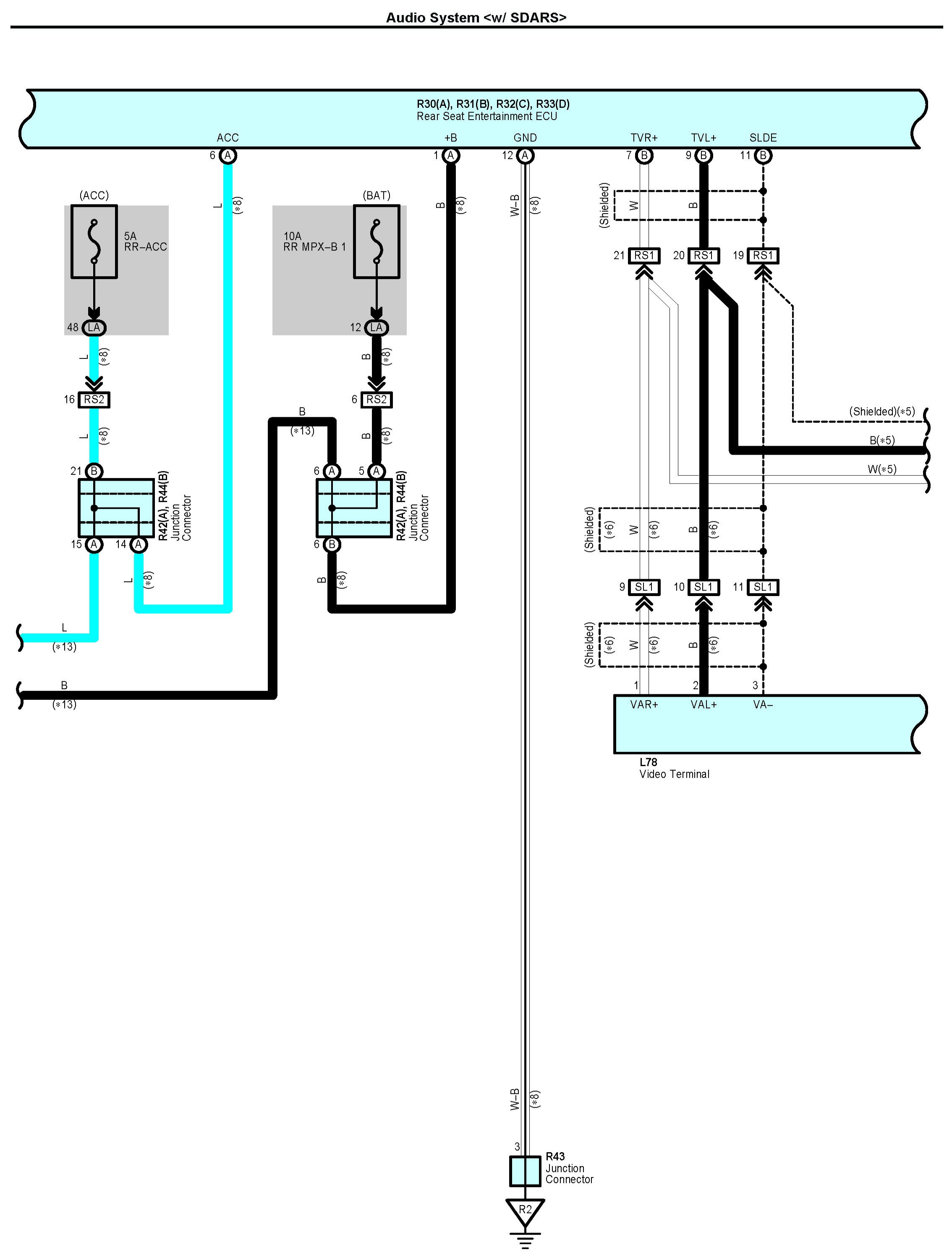

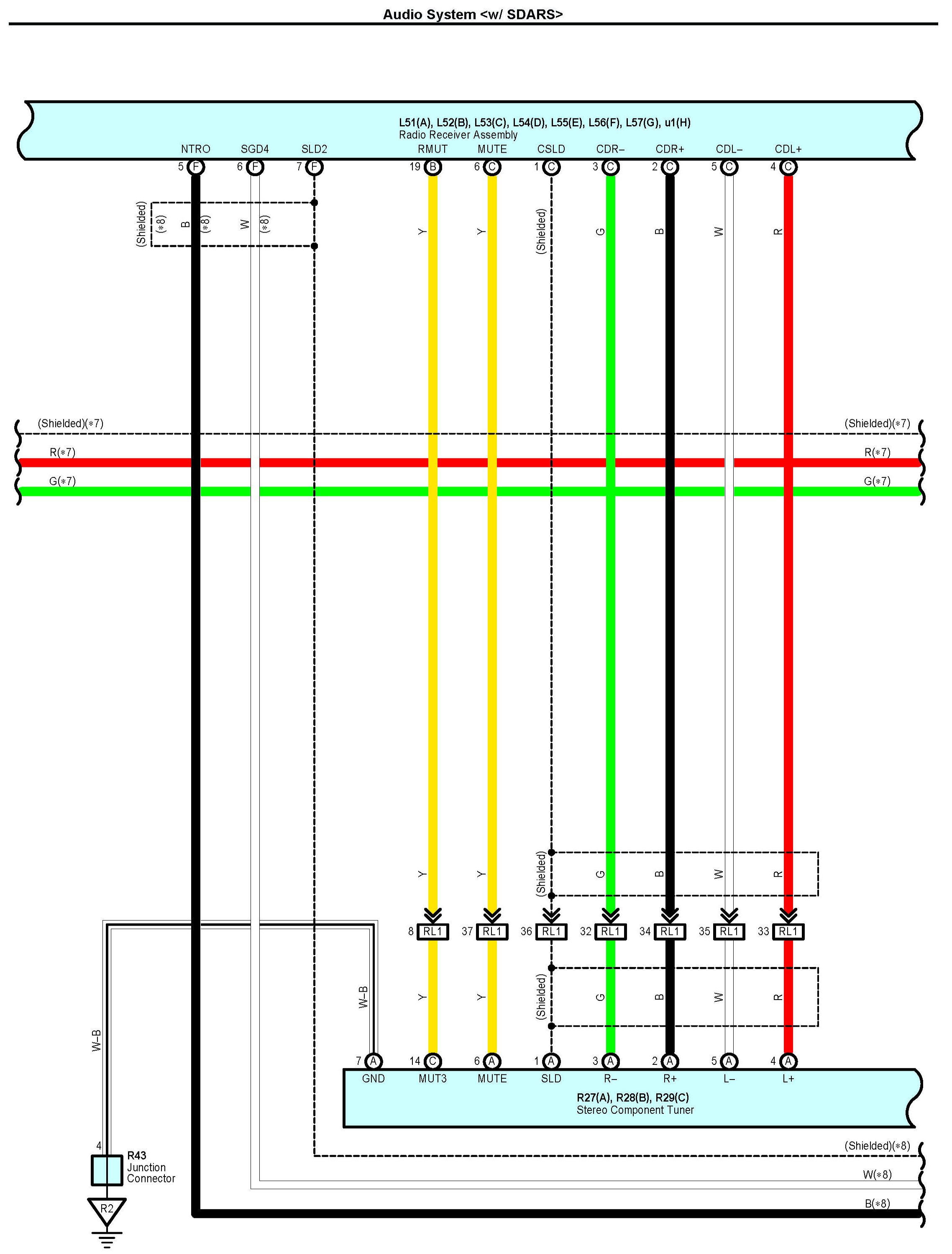

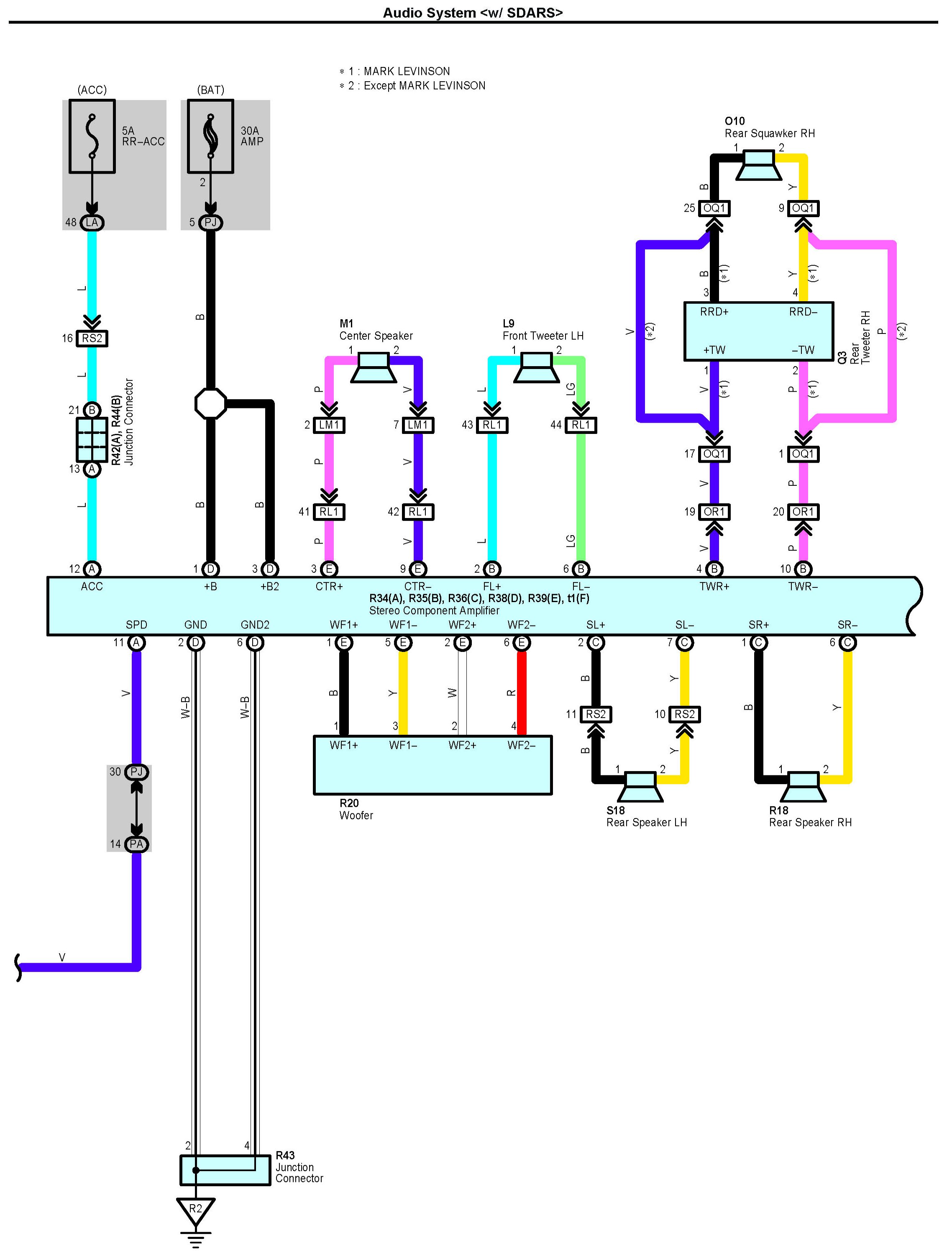

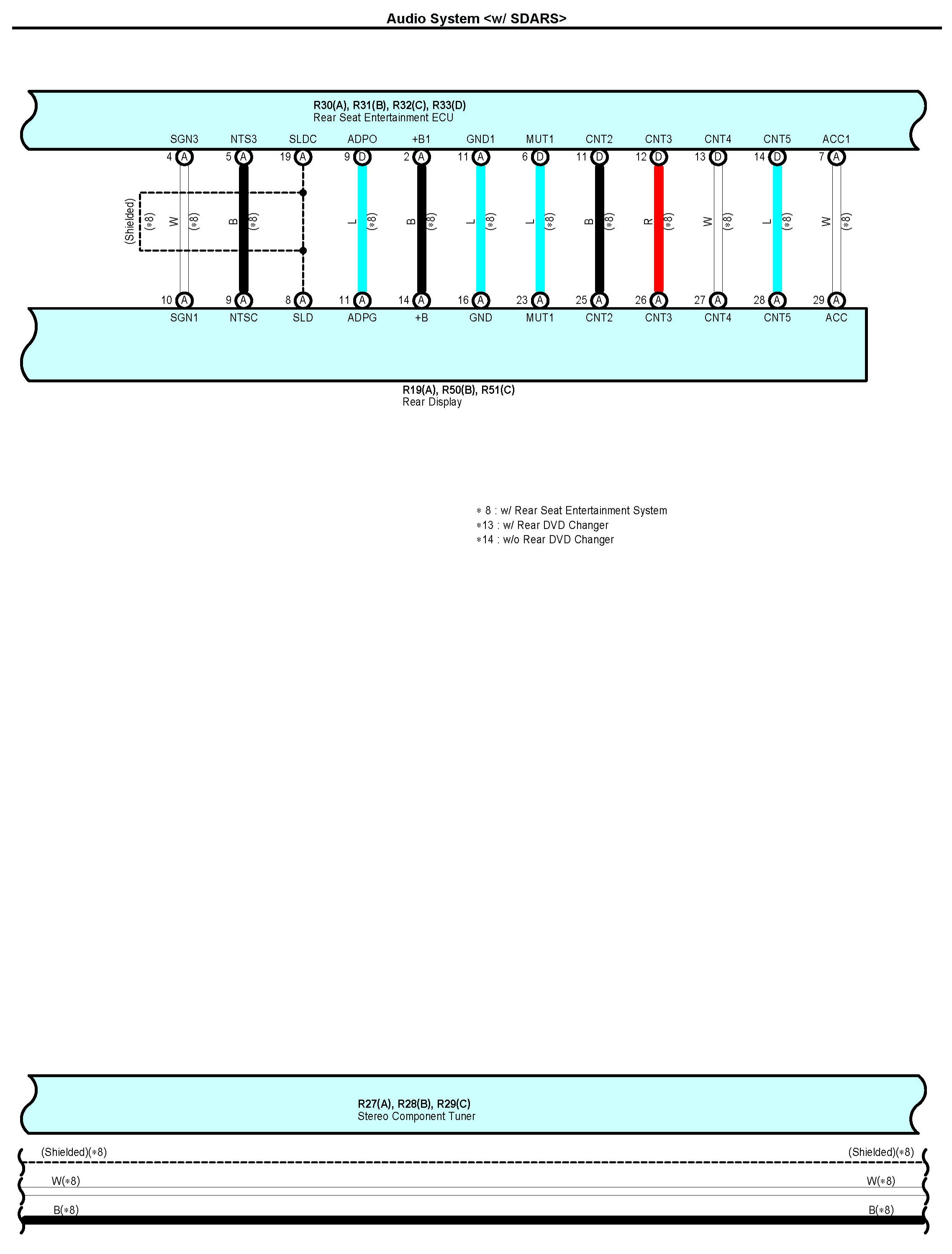

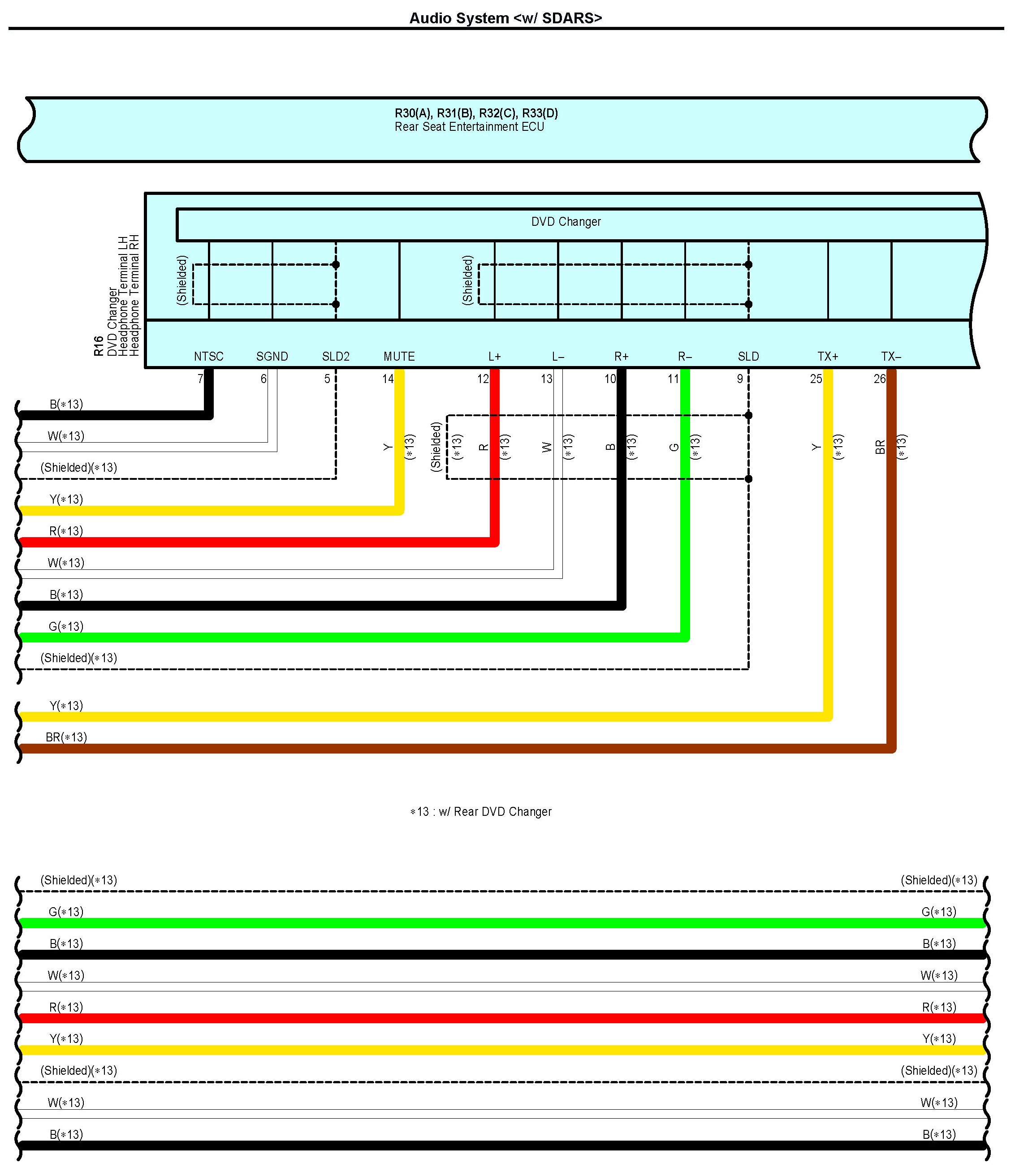

Audio System [w/ SDARS] Part 1:

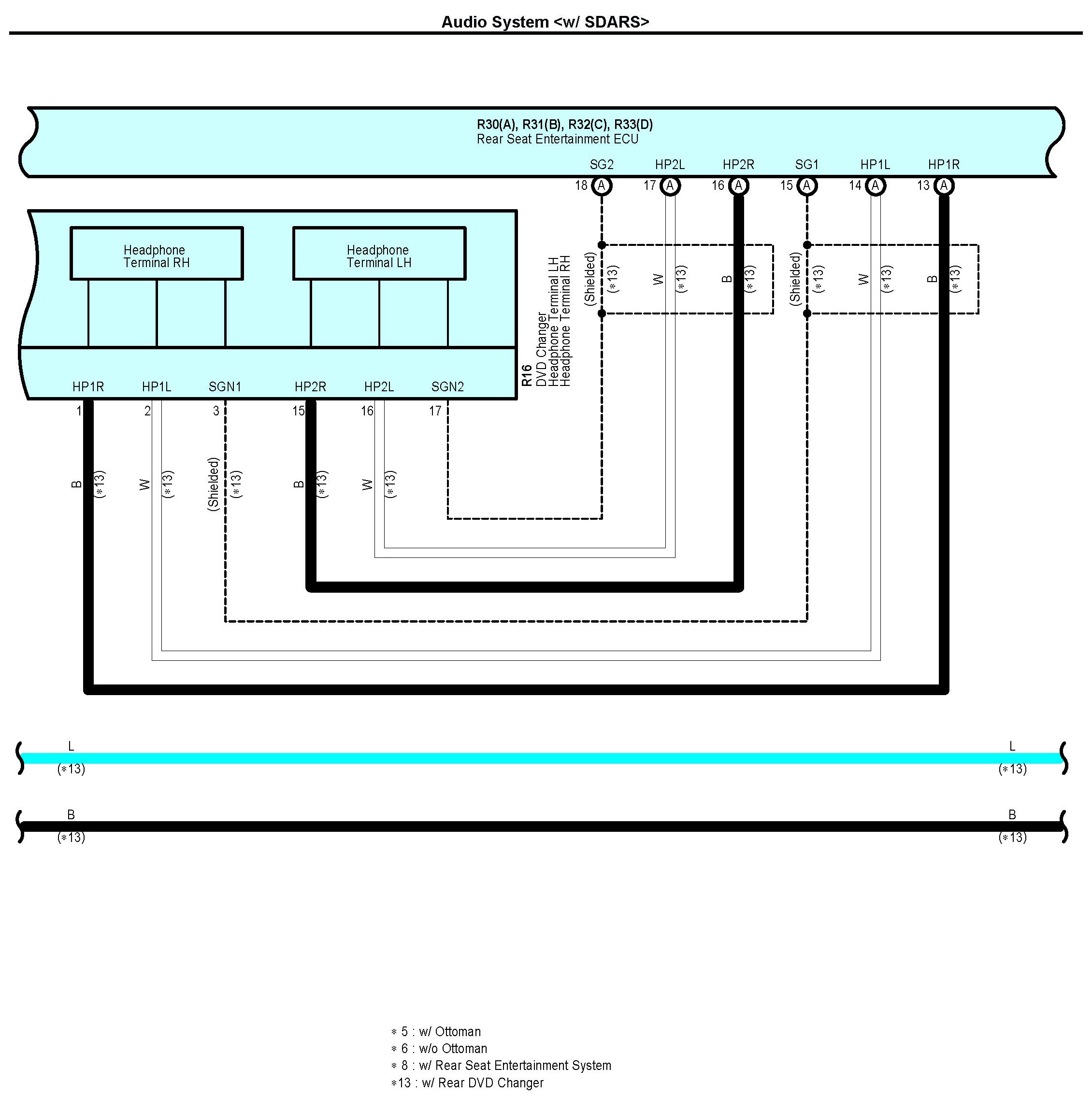

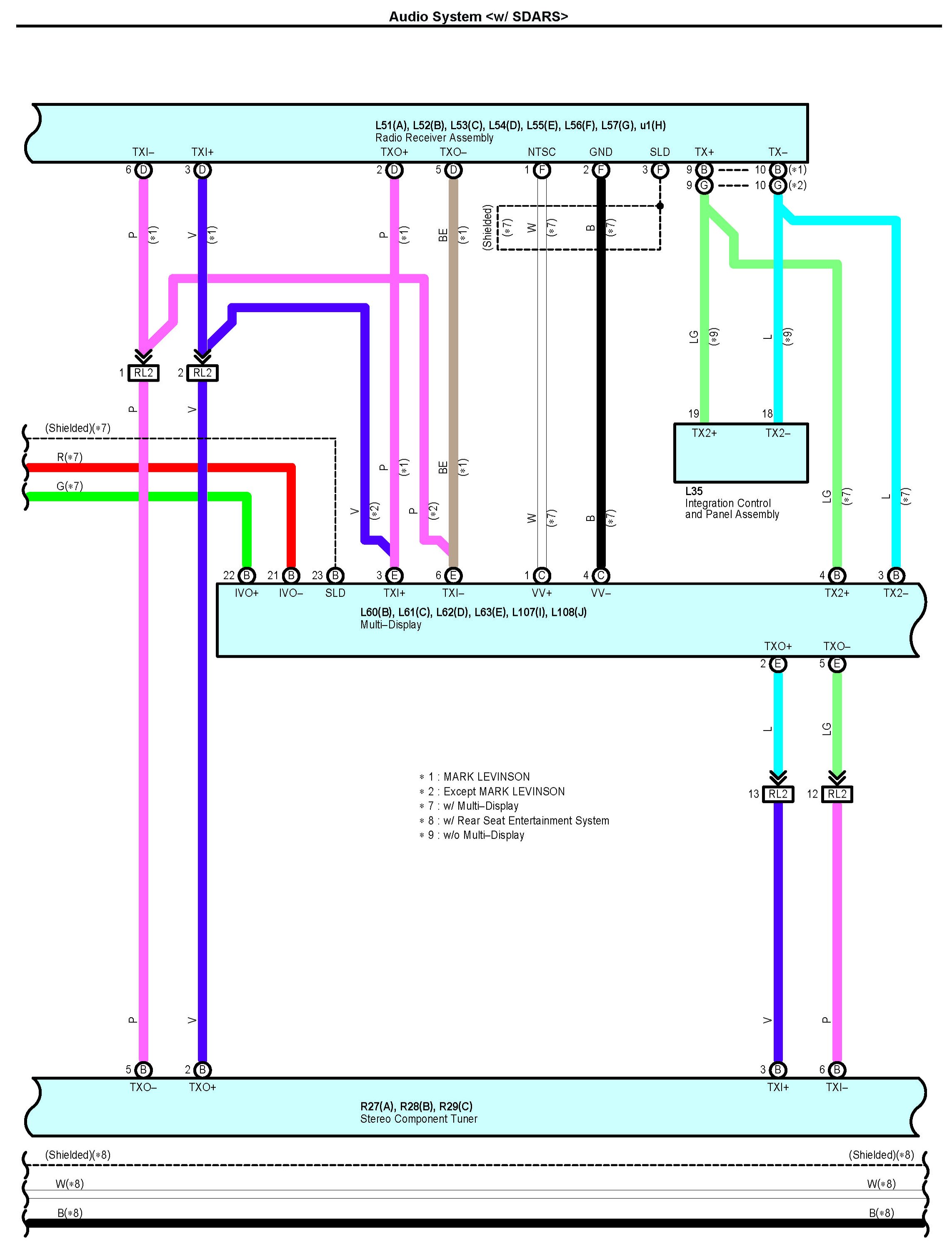

Audio System [w/ SDARS] Part 2:

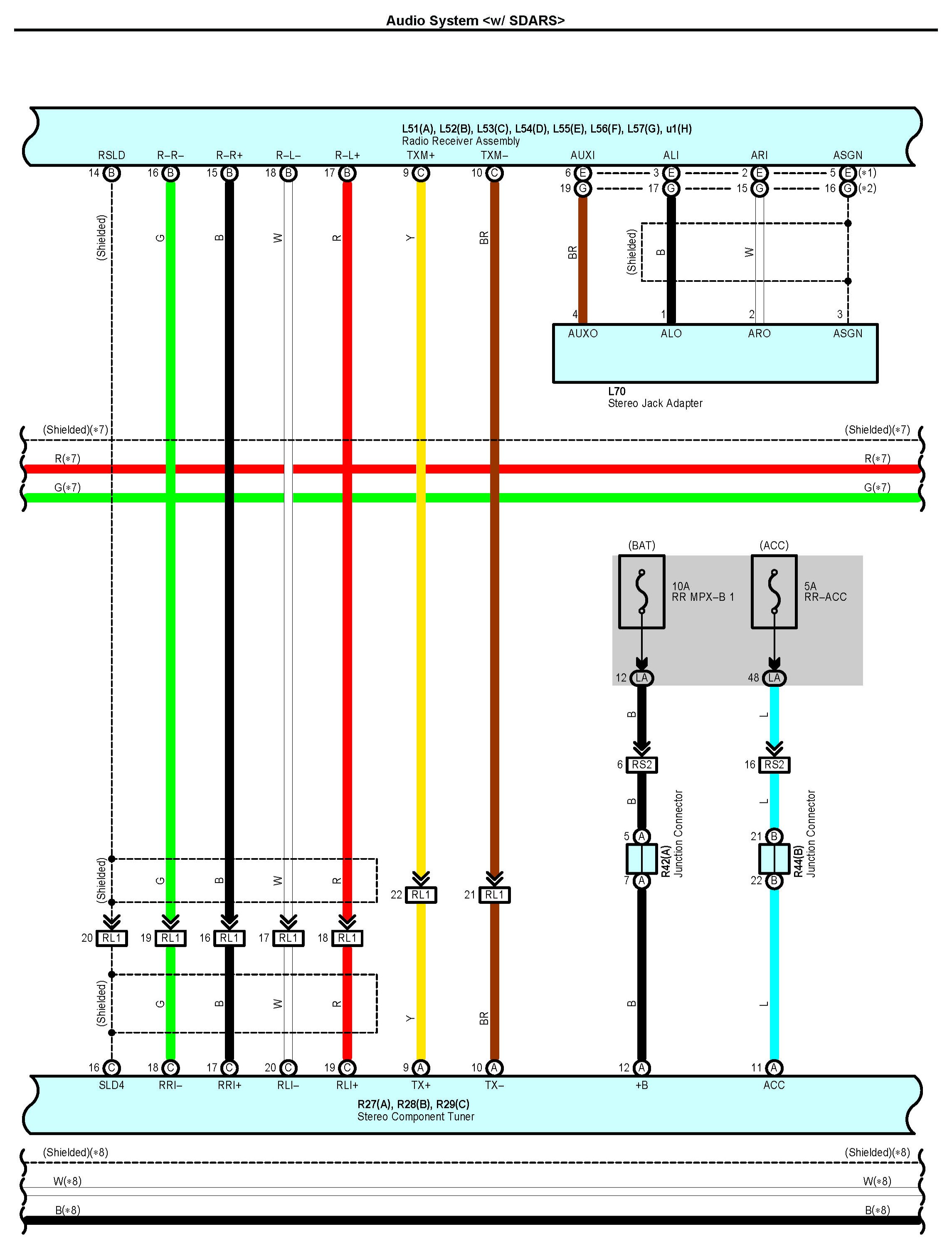

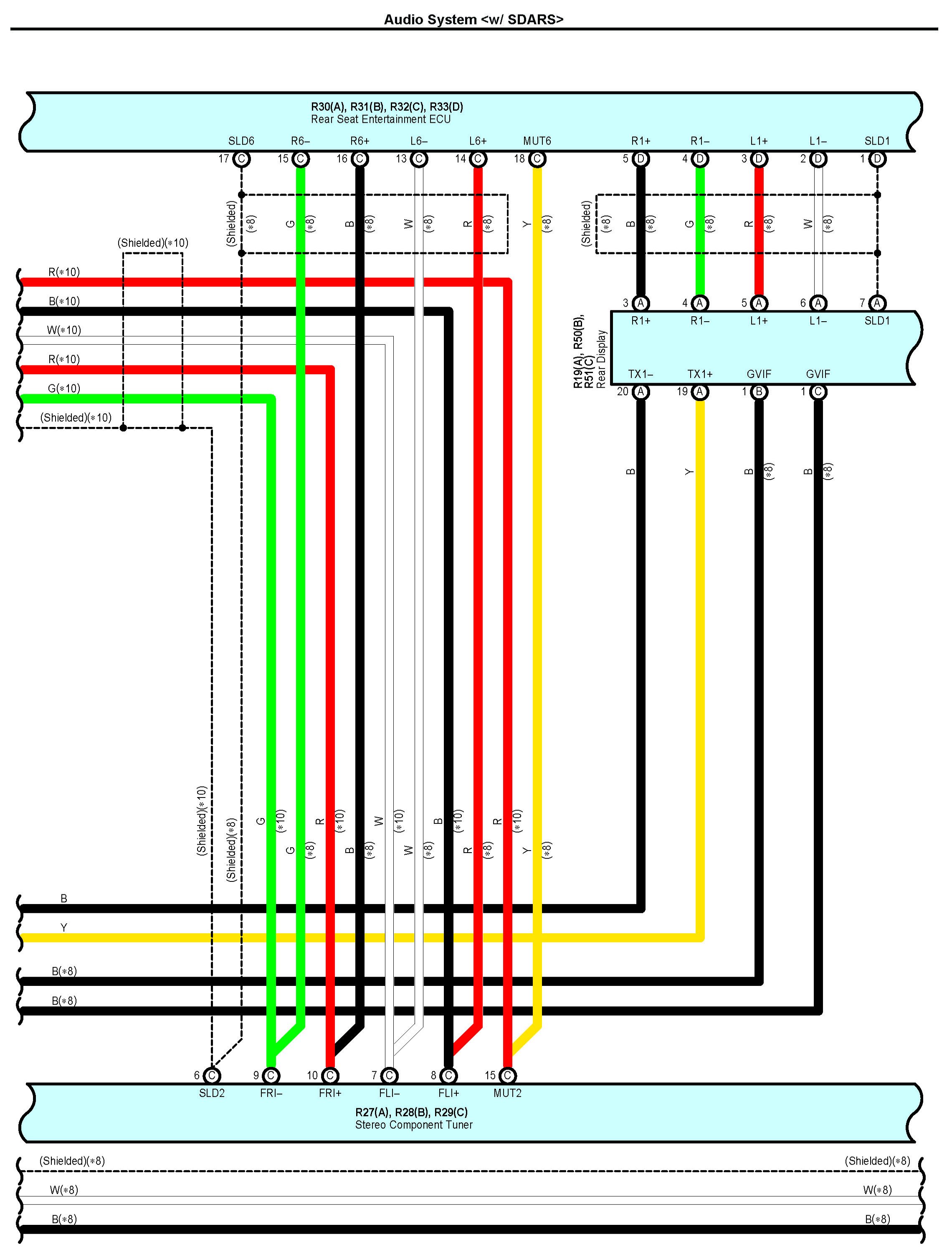

Audio System [w/ SDARS] Part 3:

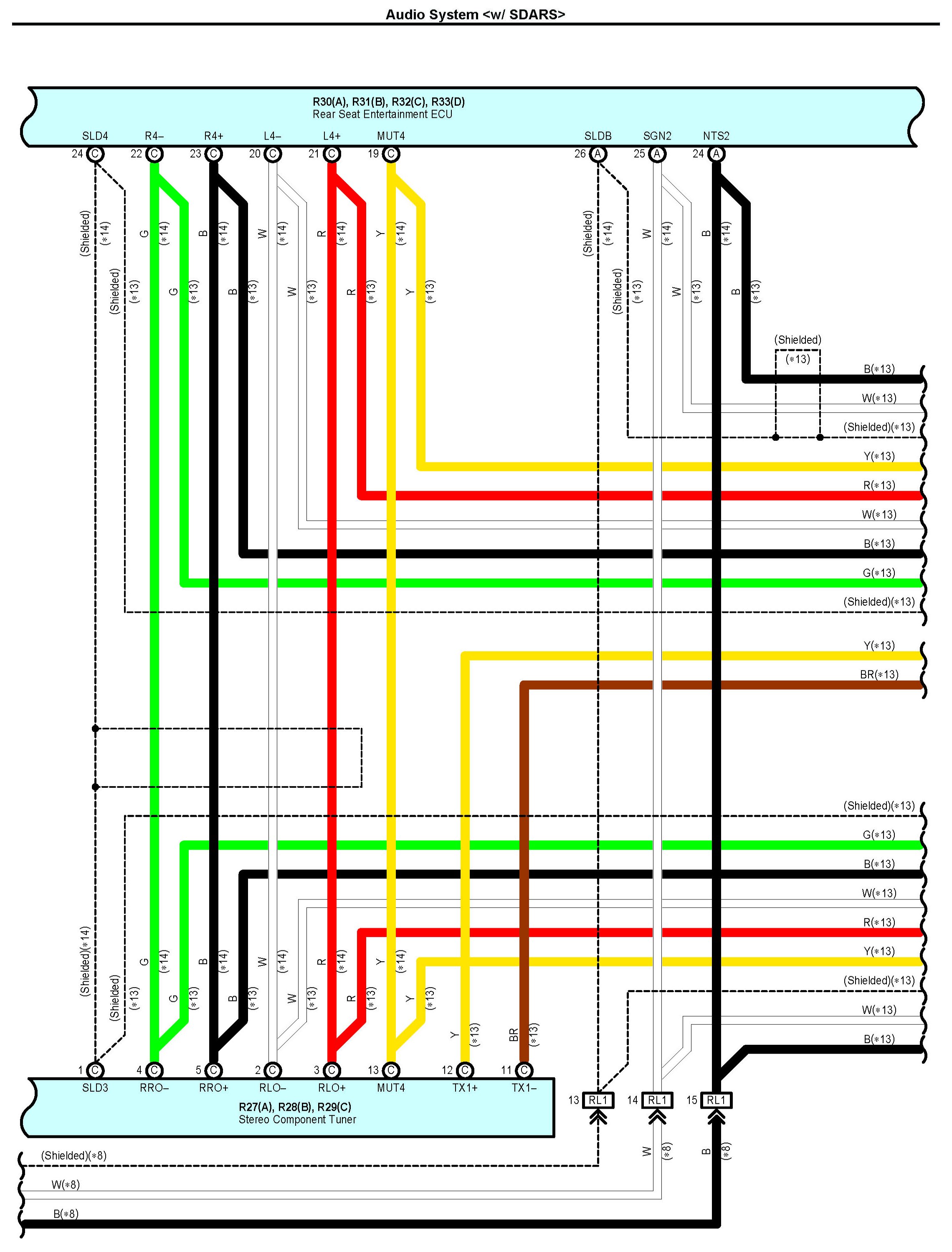

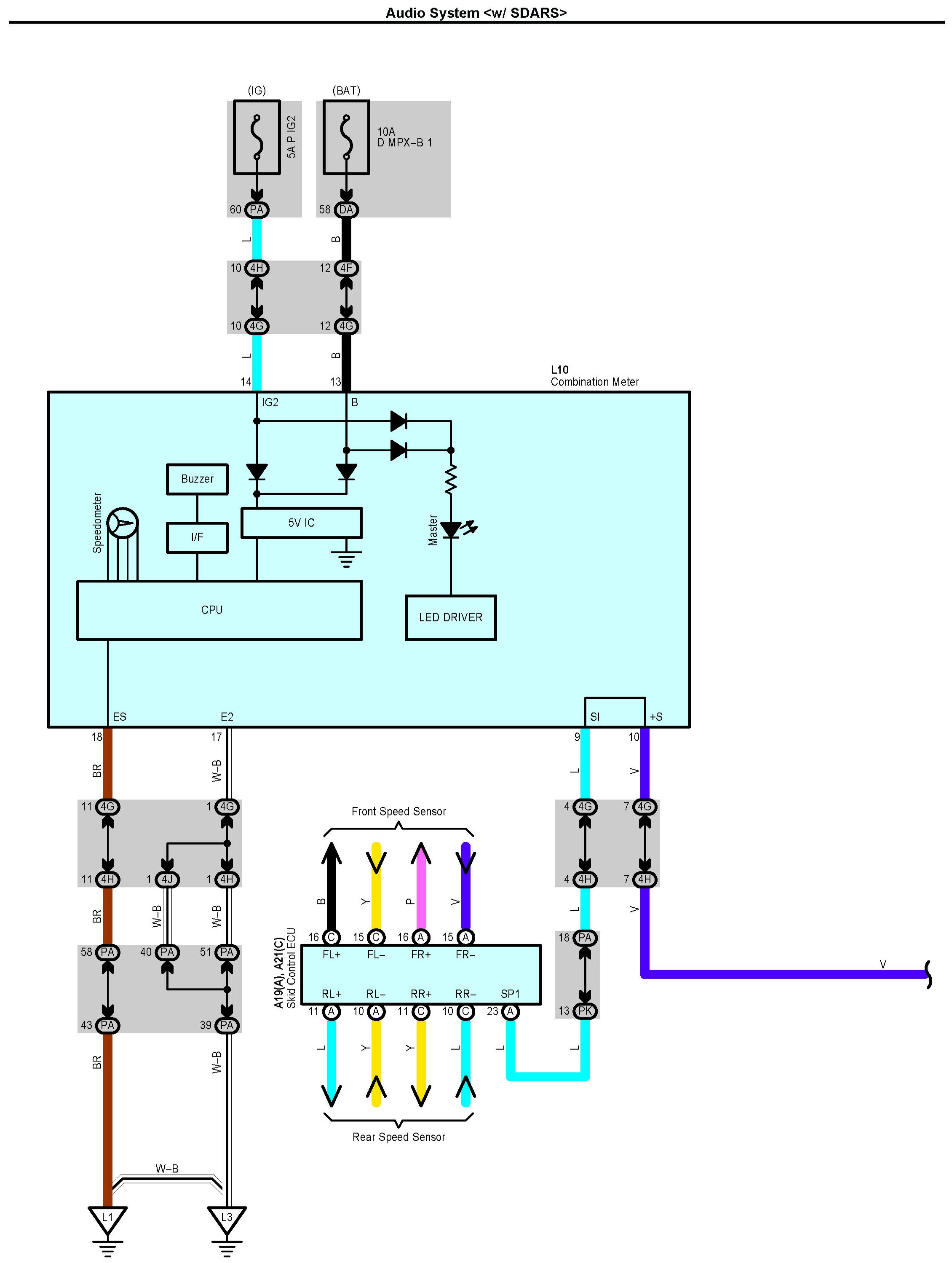

Audio System [w/ SDARS] Part 4:

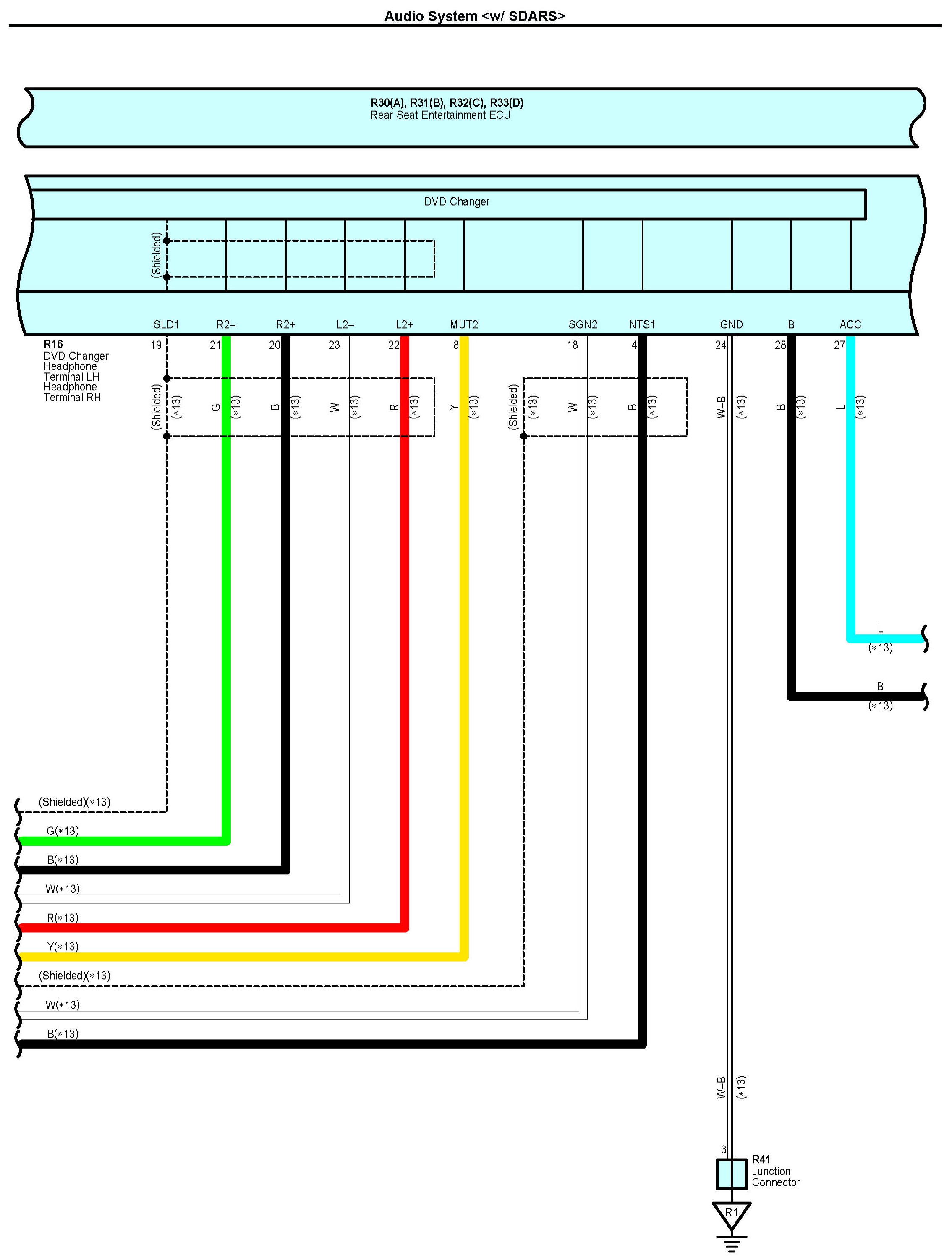

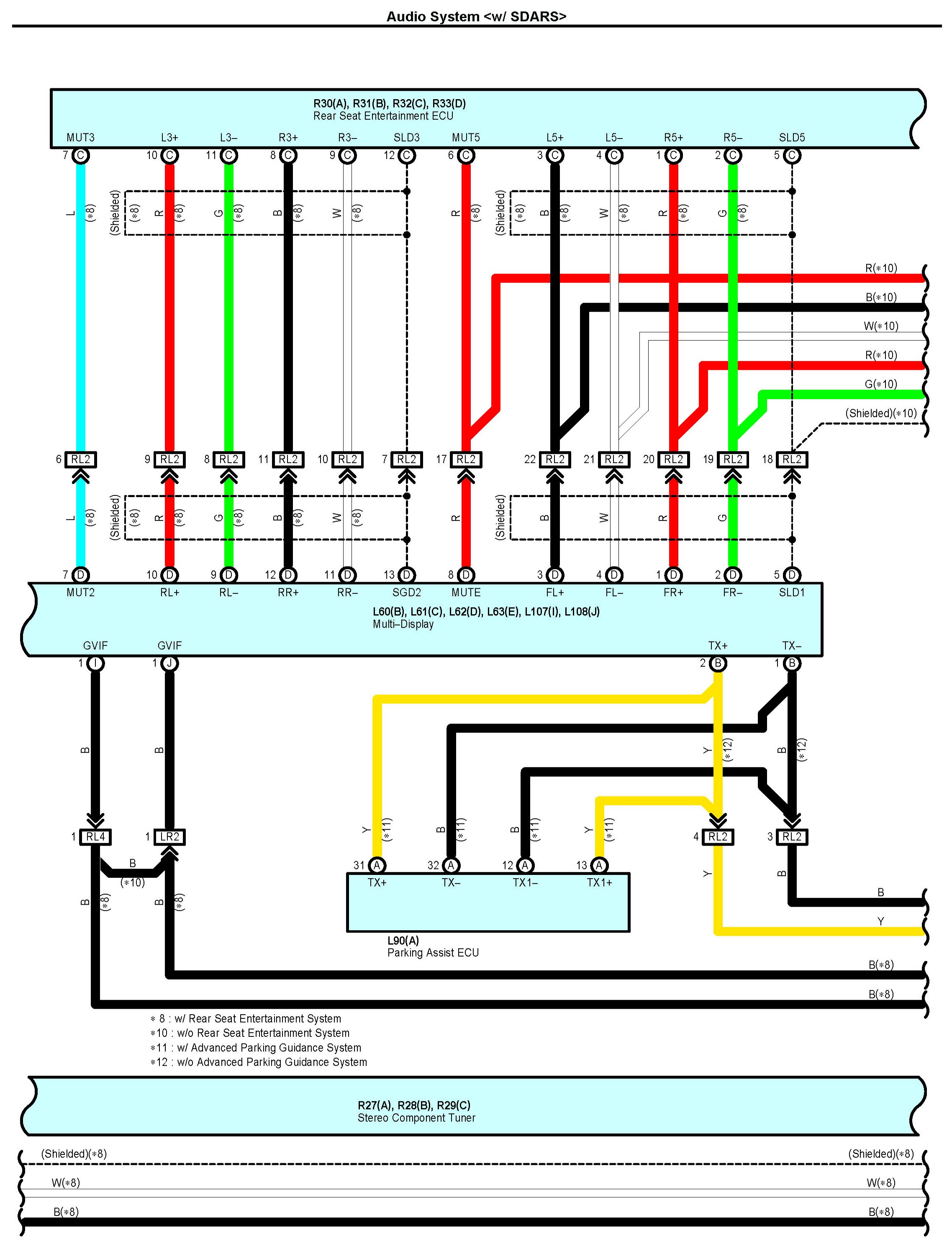

Audio System [w/ SDARS] Part 5:

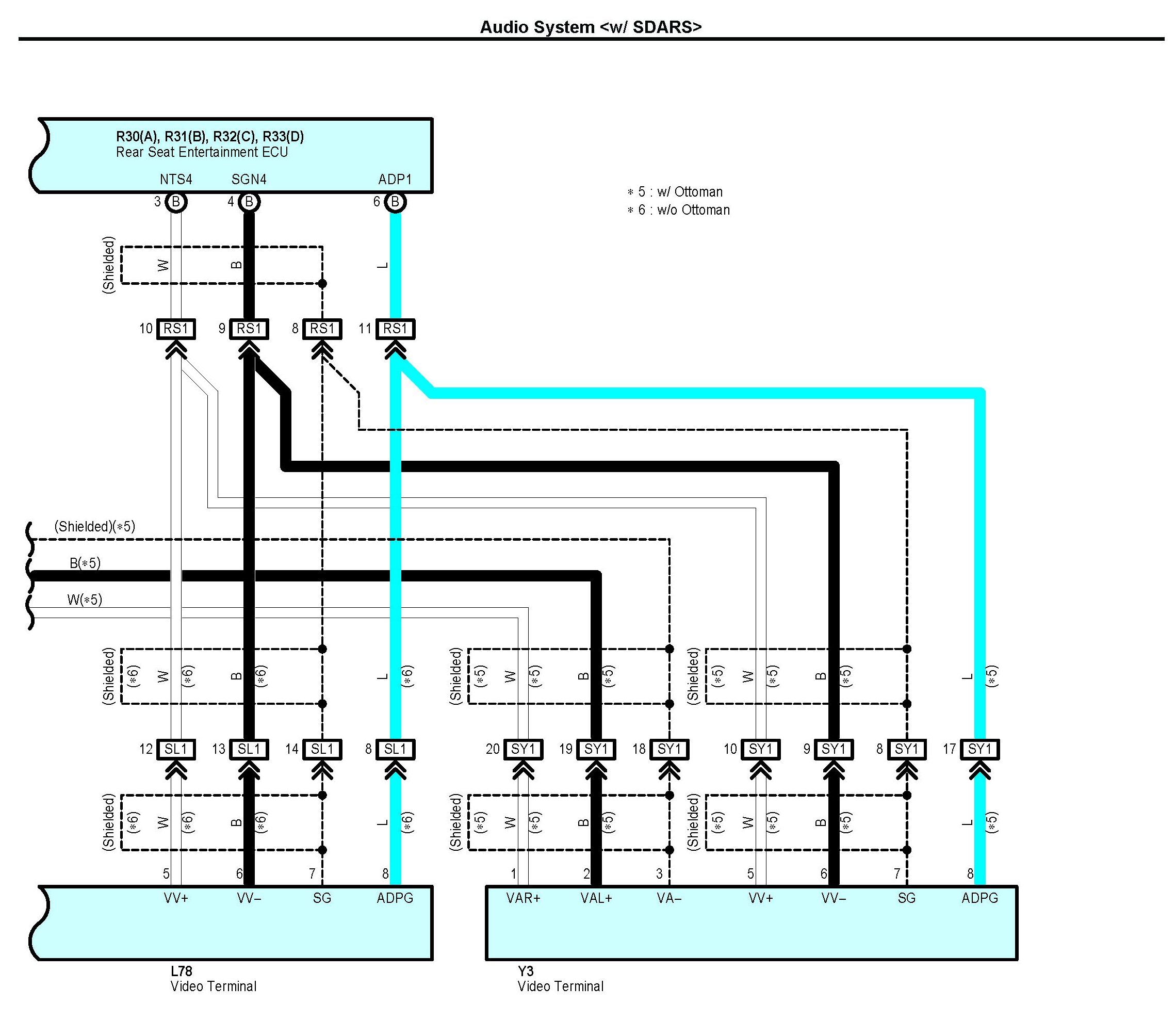

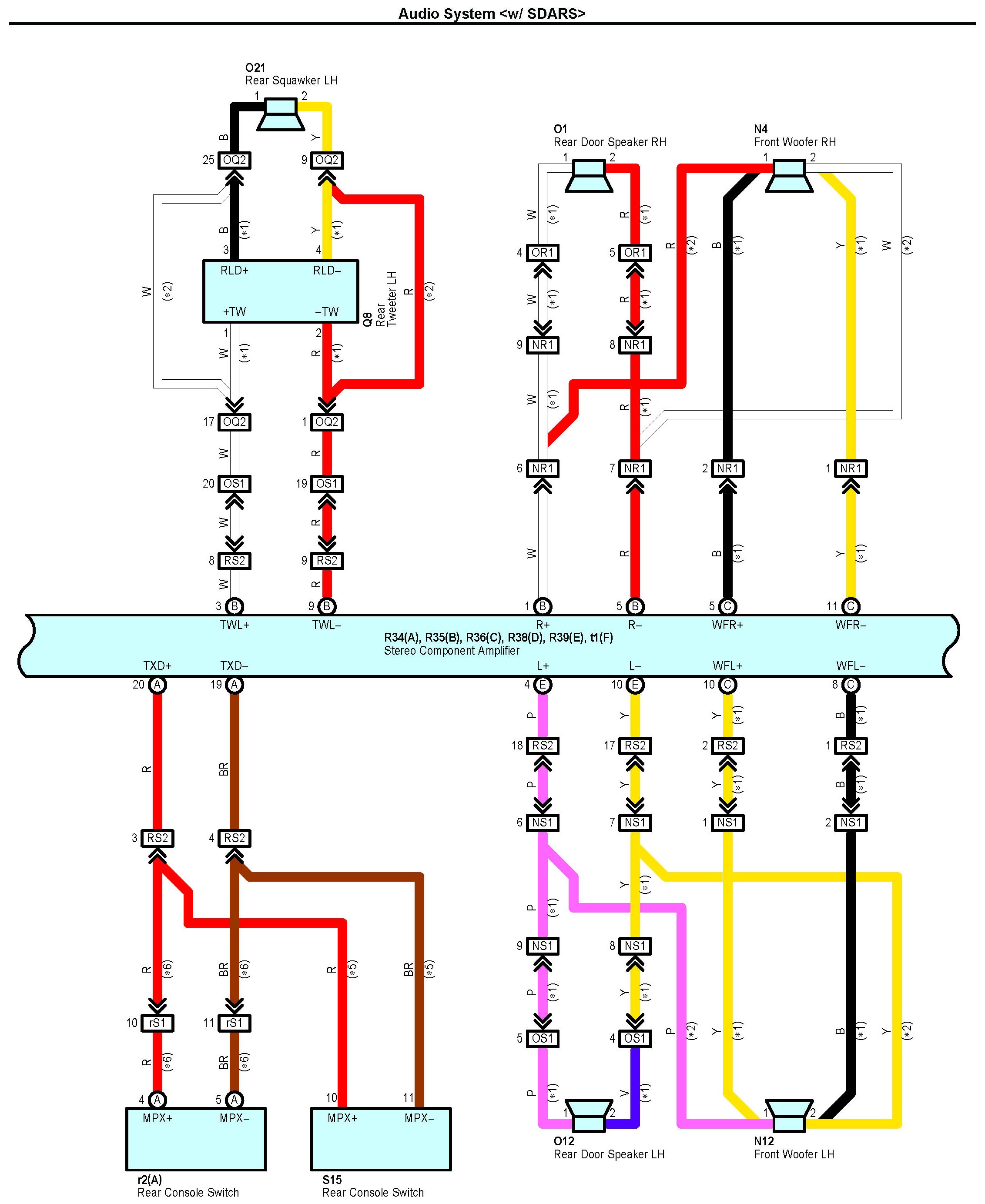

Audio System [w/ SDARS] Part 6:

Audio System [w/ SDARS] Part 7:

Audio System [w/ SDARS] Part 8:

Audio System [w/ SDARS] Part 9:

Audio System [w/ SDARS] Part 10:

Audio System [w/ SDARS] Part 11:

Audio System [w/ SDARS] Part 12:

Audio System [w/ SDARS] Part 13:

Audio System [w/ SDARS] Part 14:

Audio System [w/ SDARS] Part 15:

Audio System [w/ SDARS] Part 16:

Audio System [w/ SDARS] Part 17:

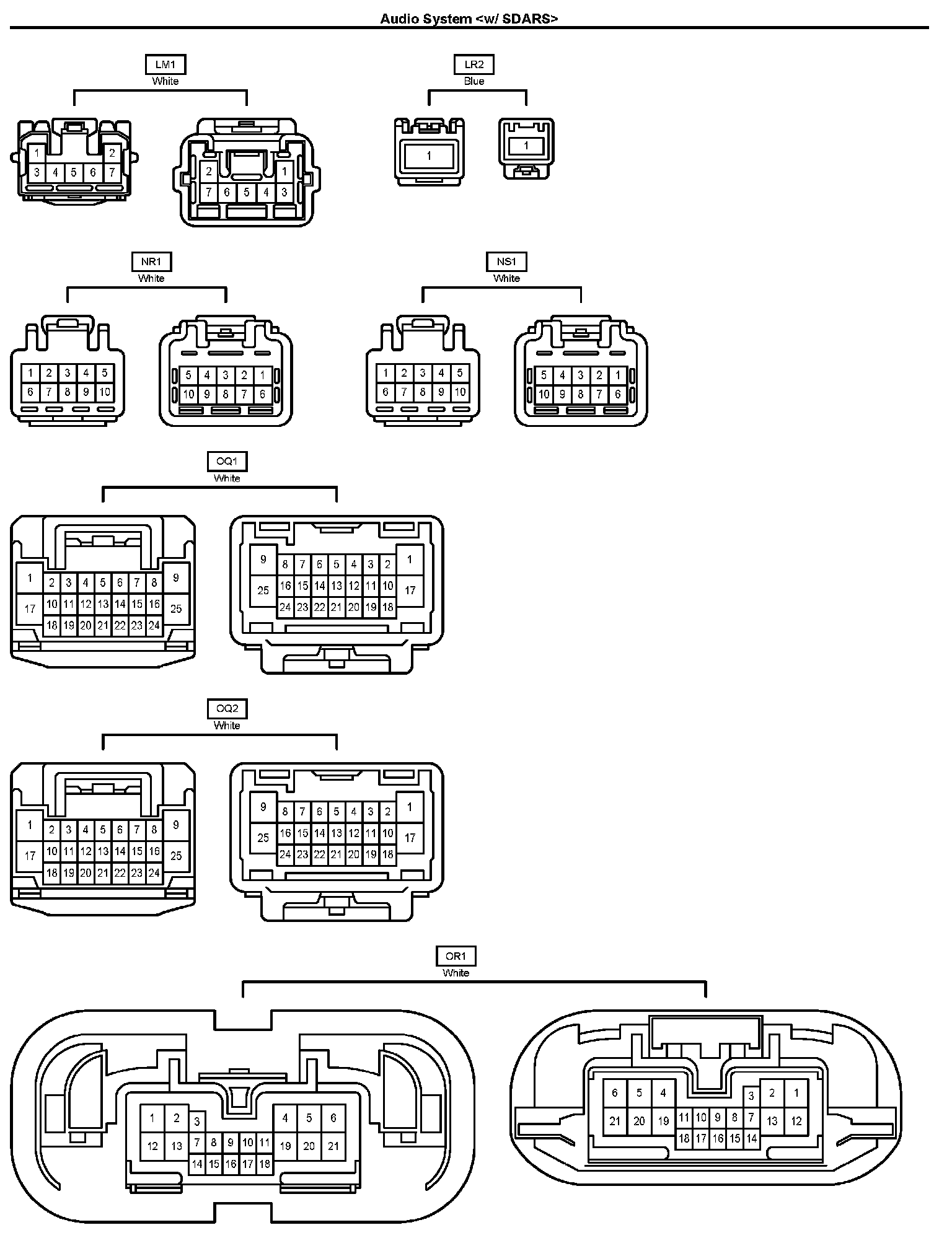

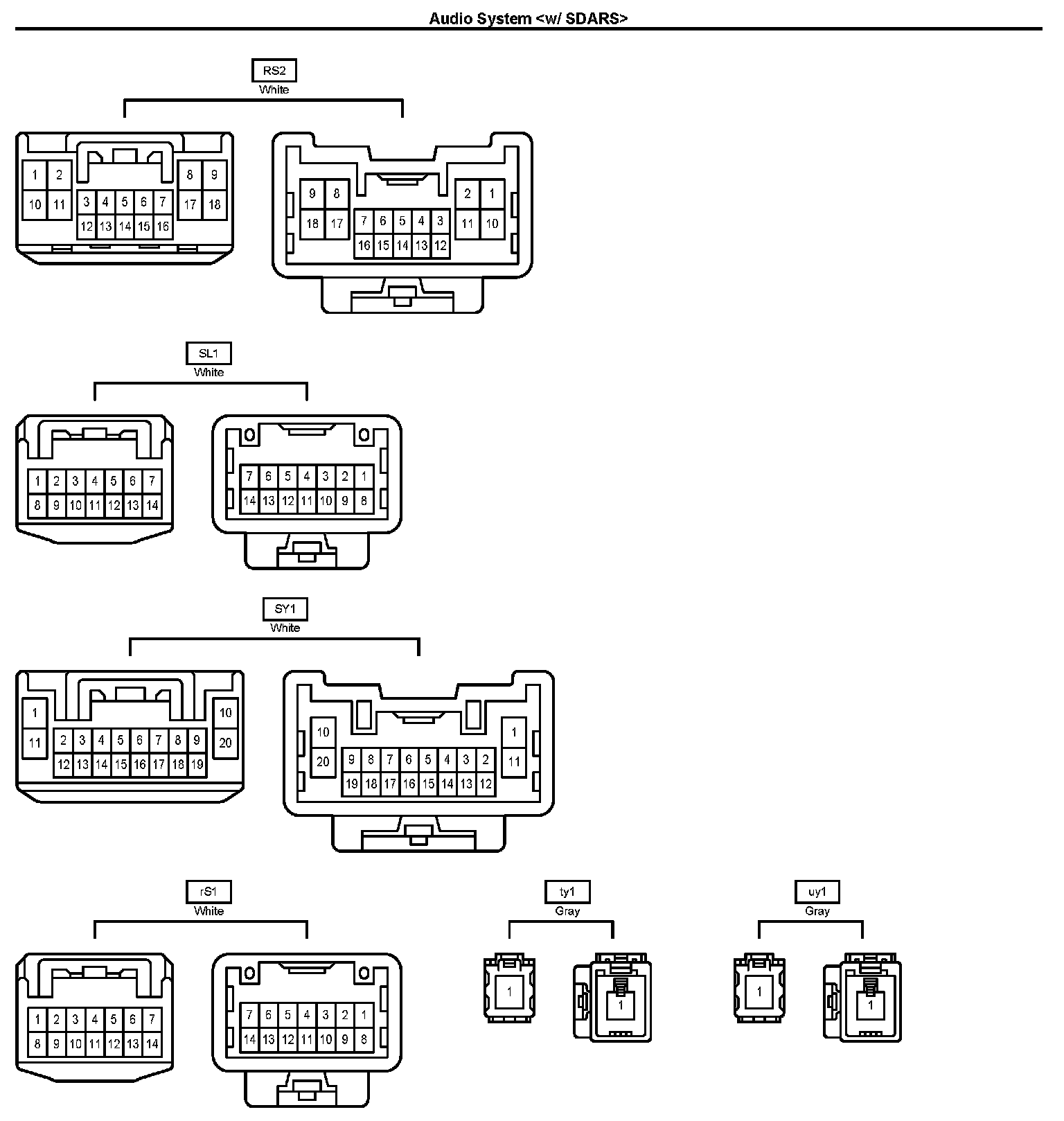

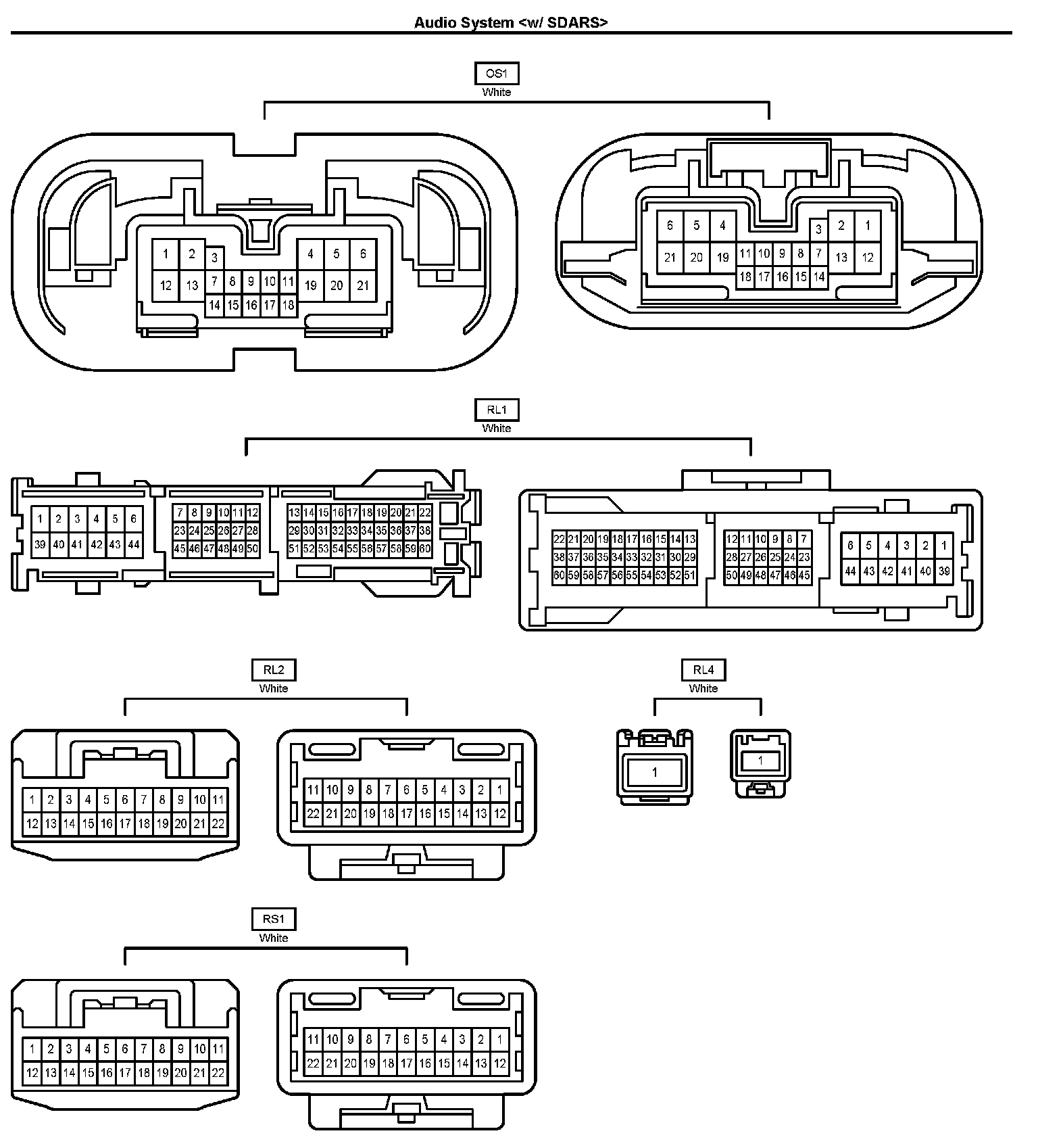

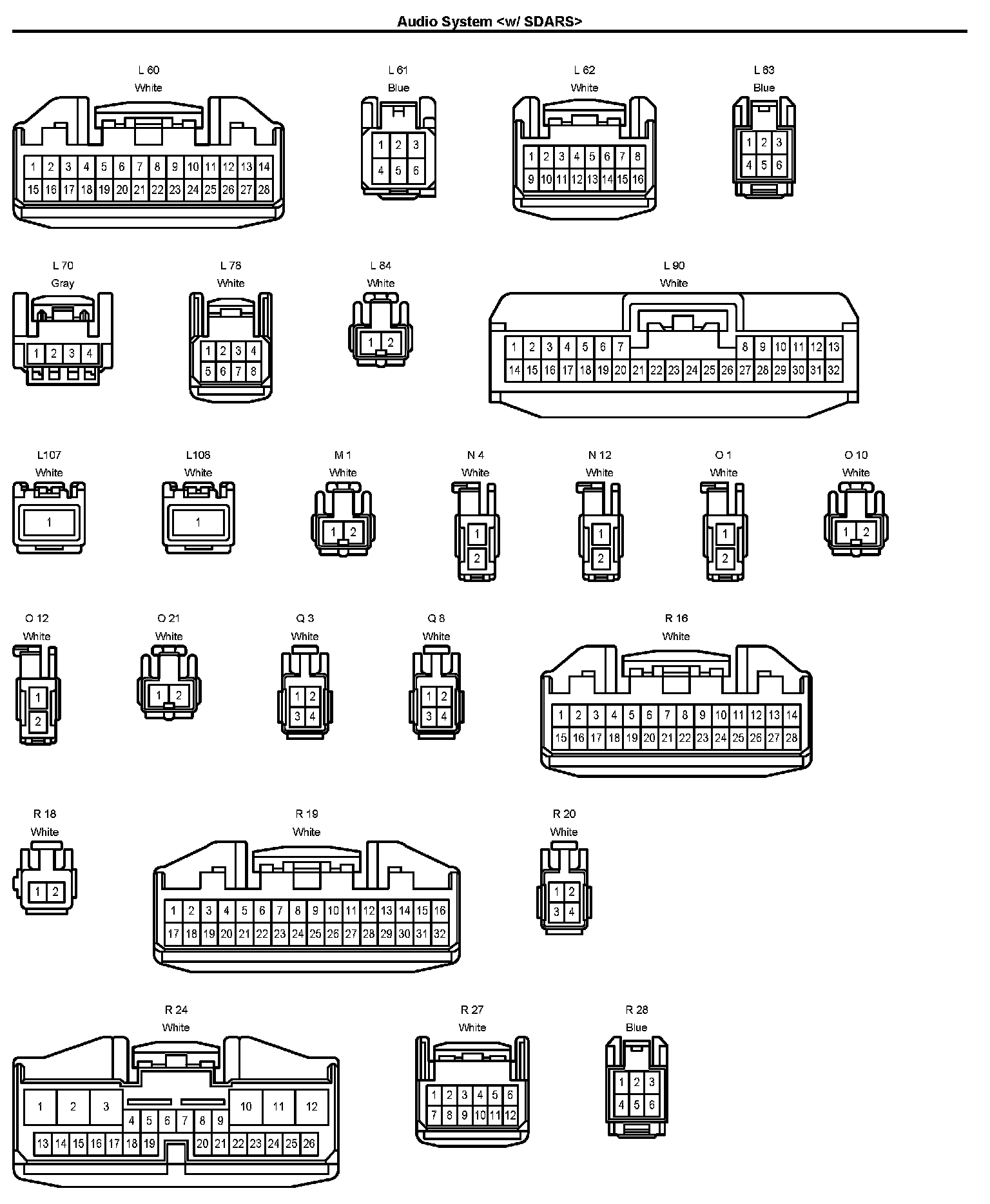

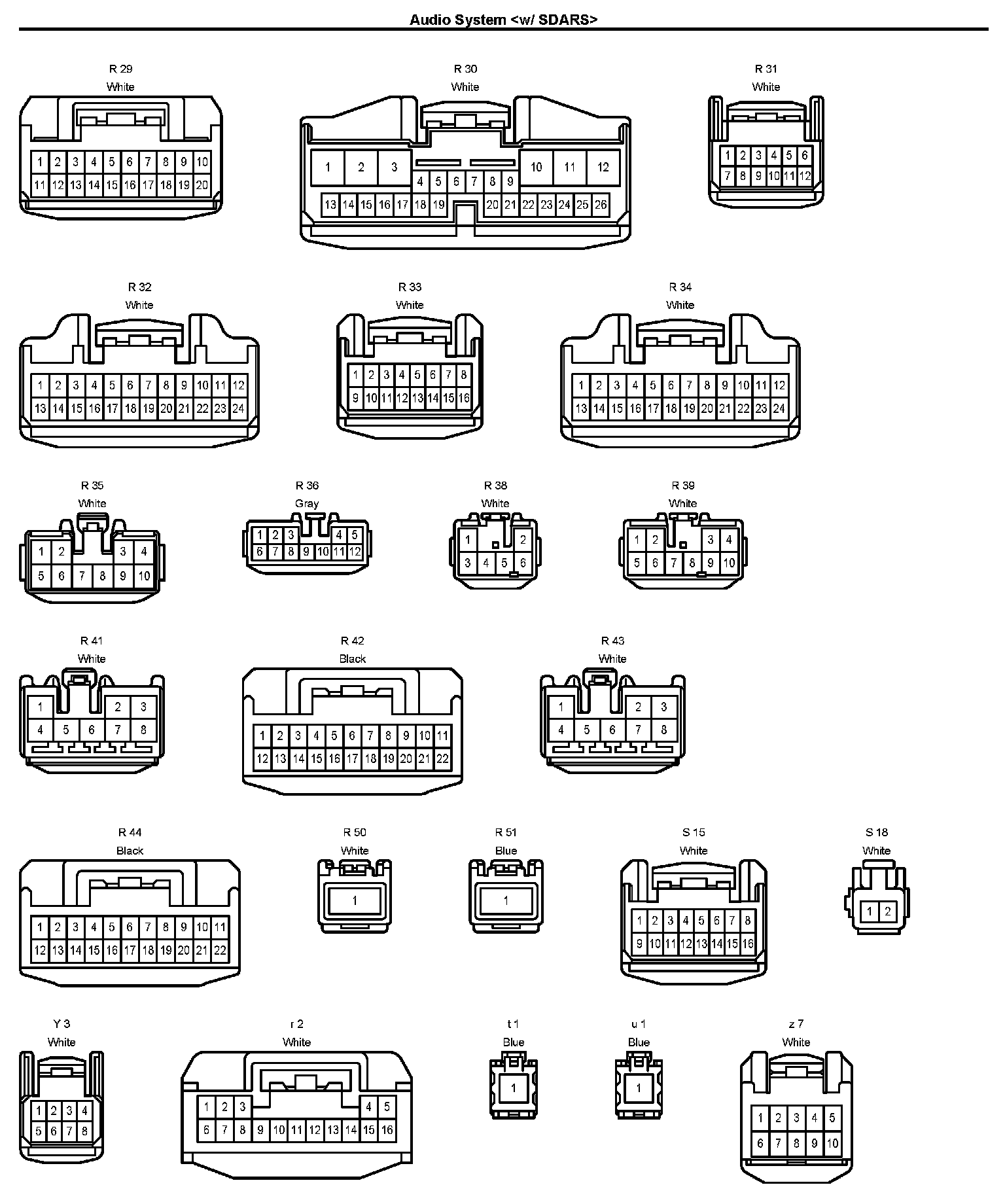

Connectors Part 1:

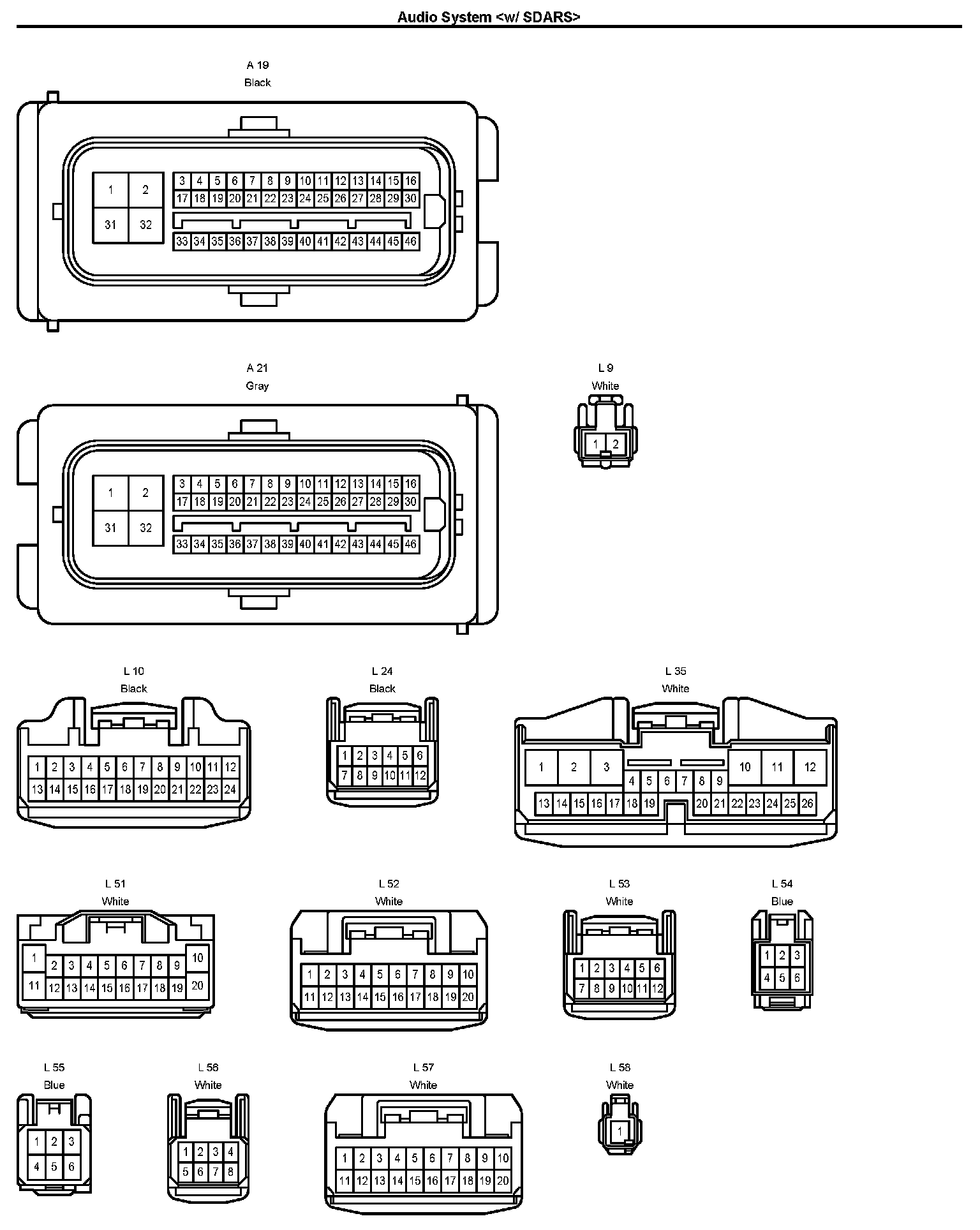

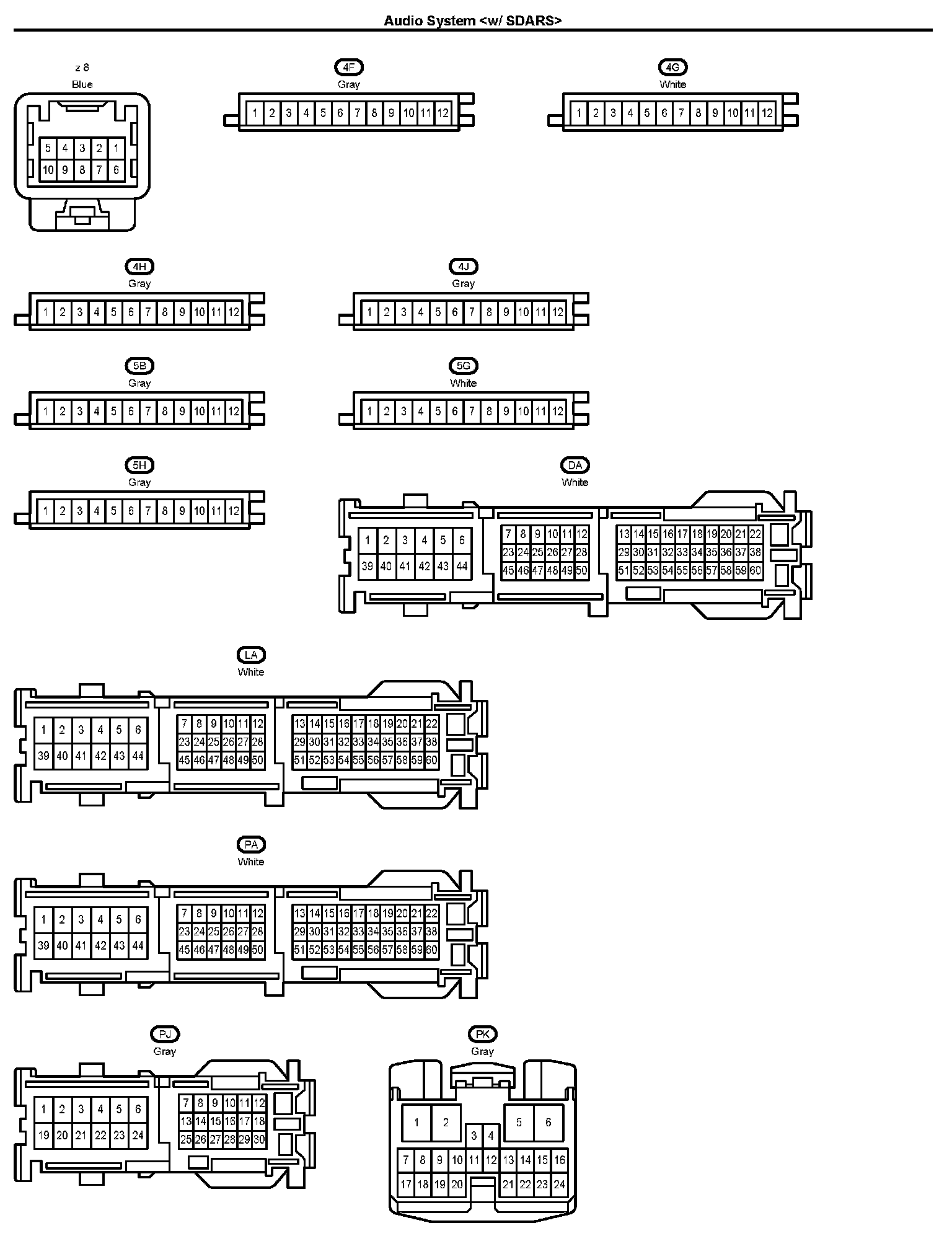

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
