System Diagram

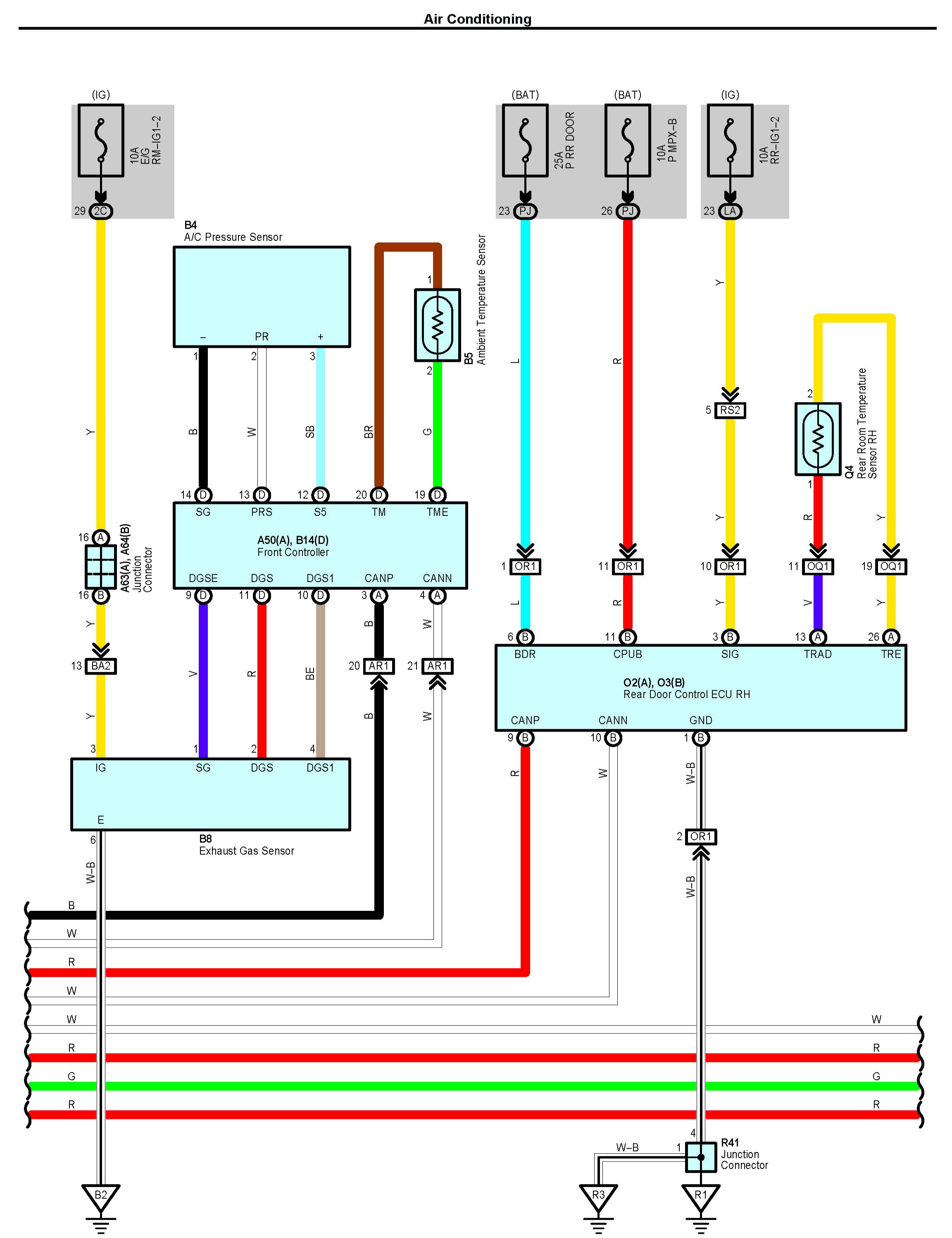

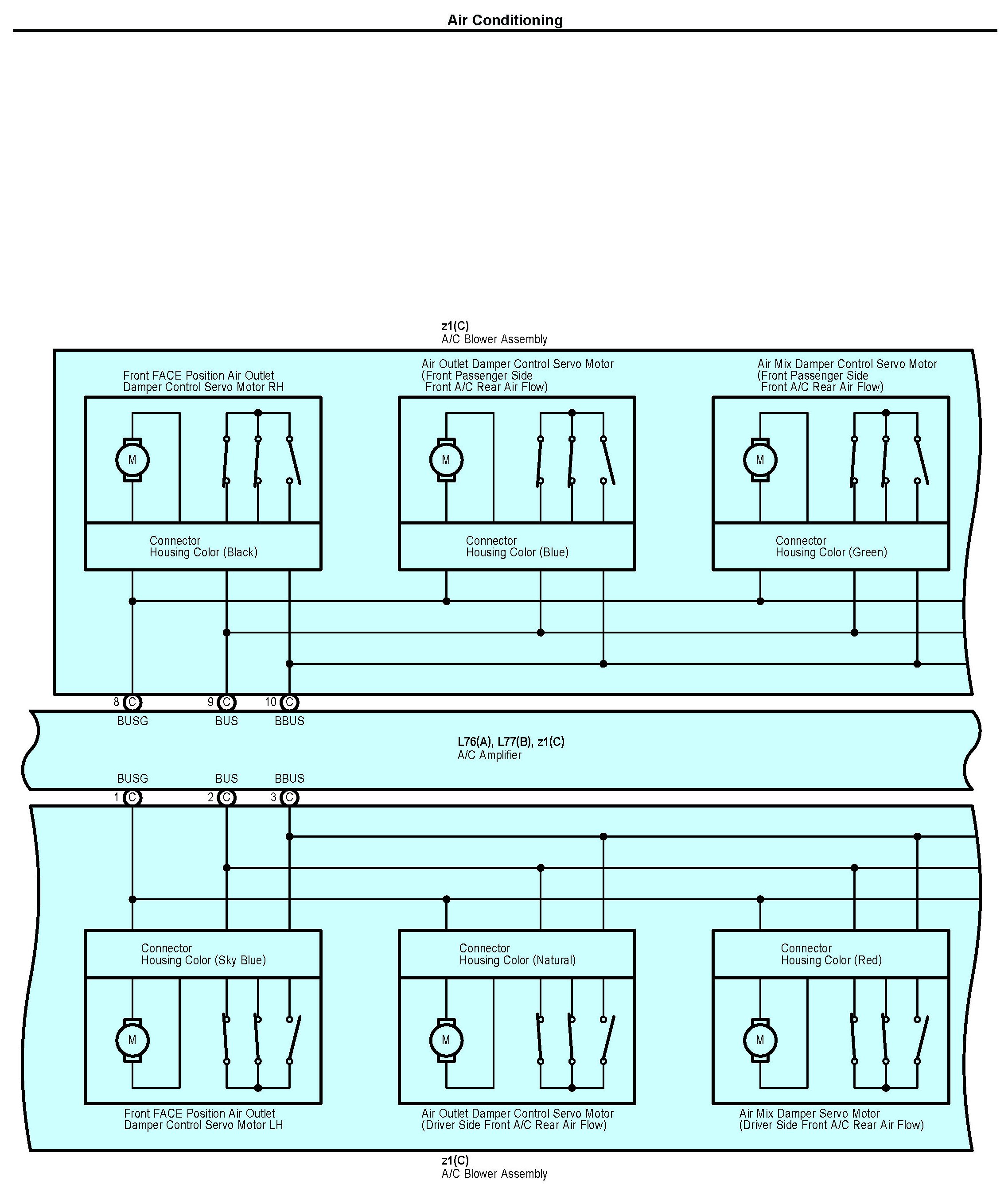

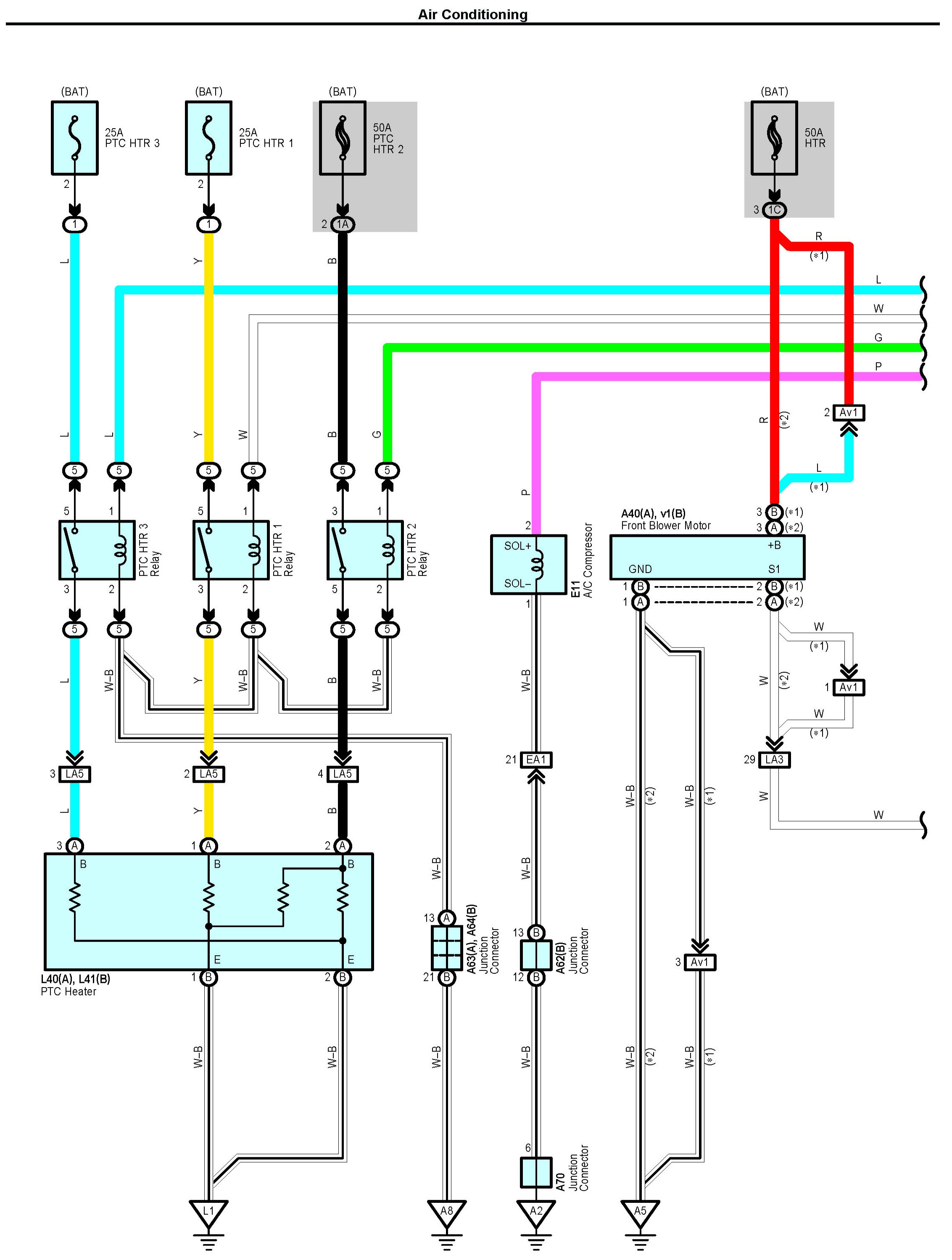

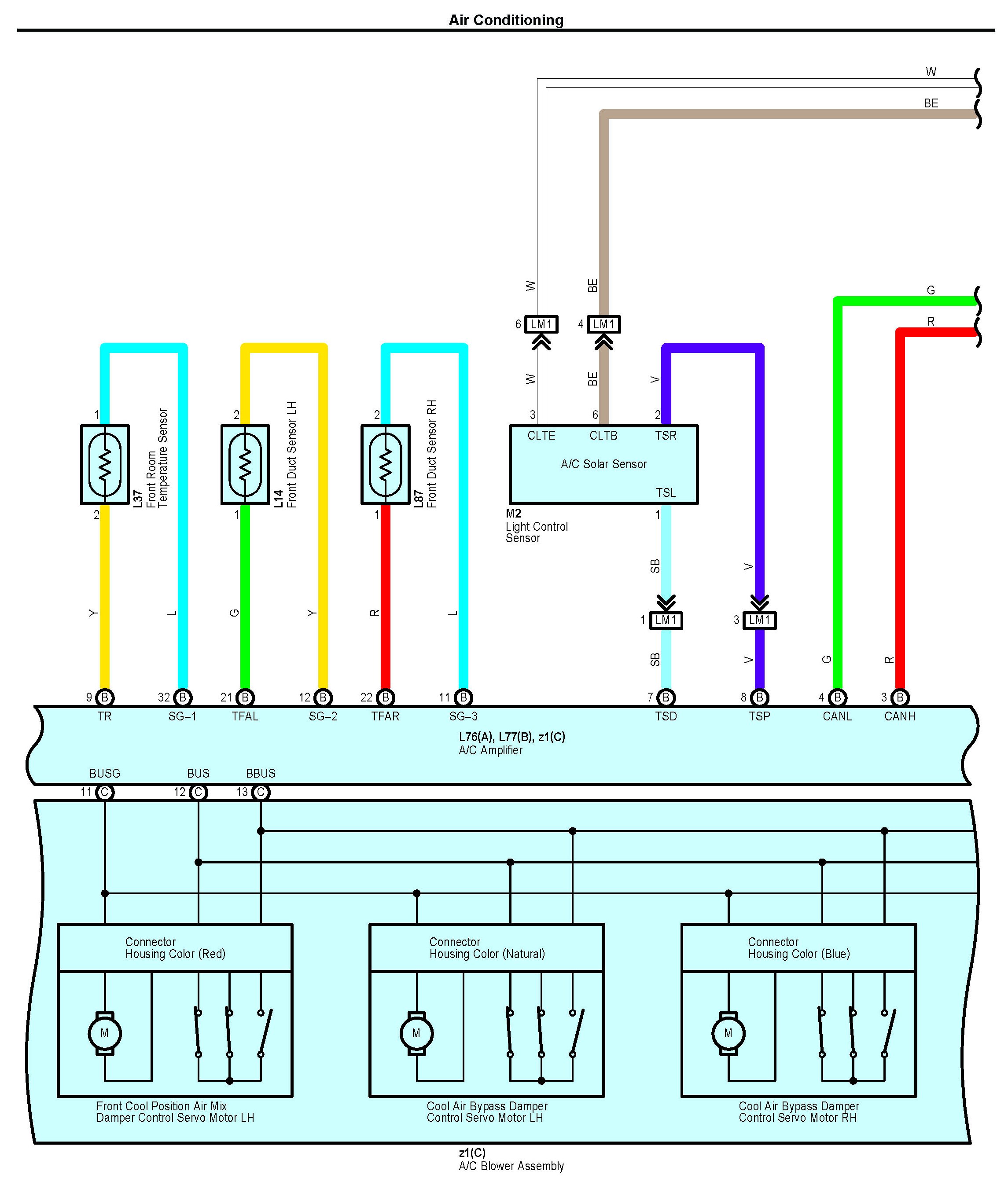

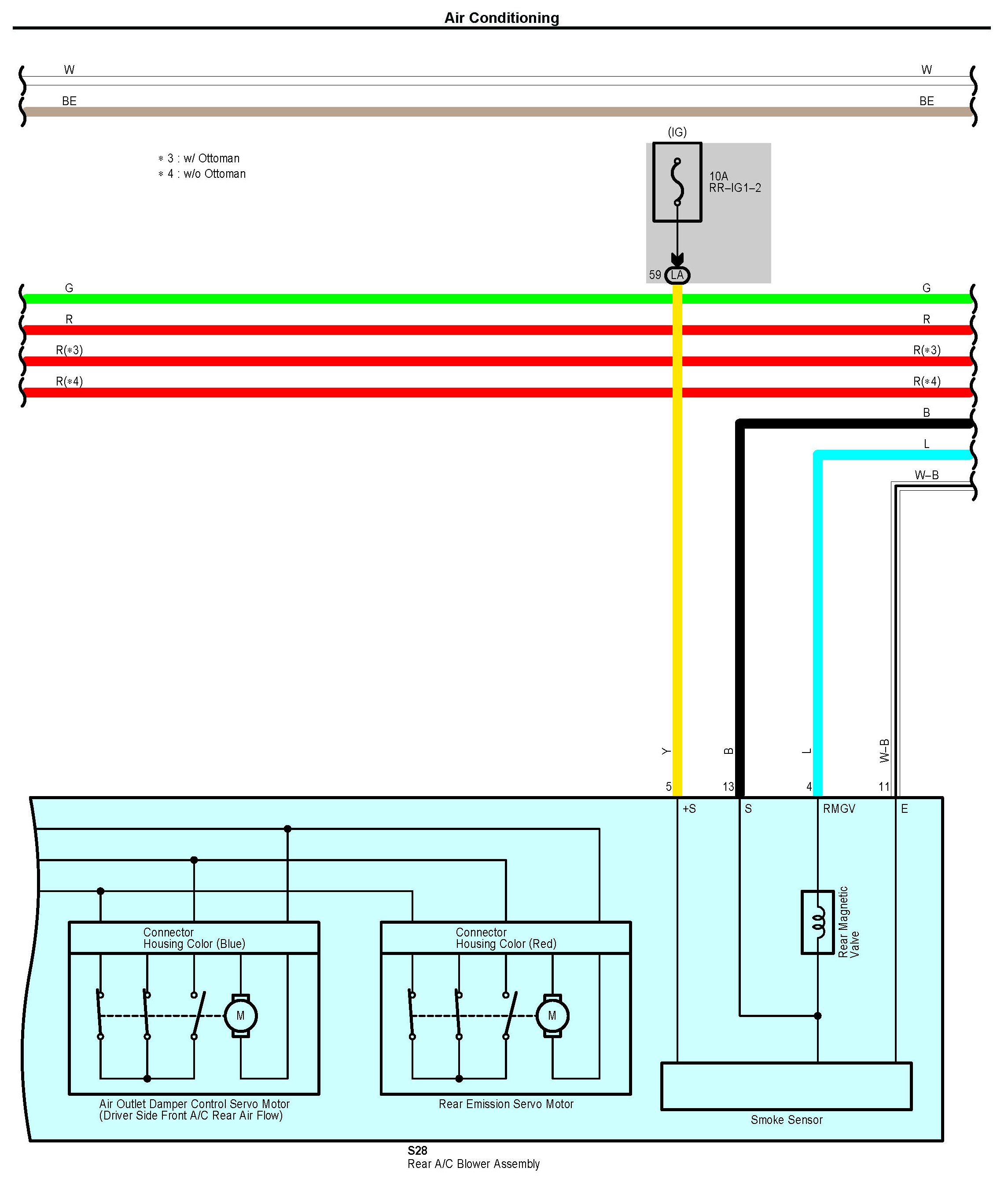

Air Conditioning Part 1:

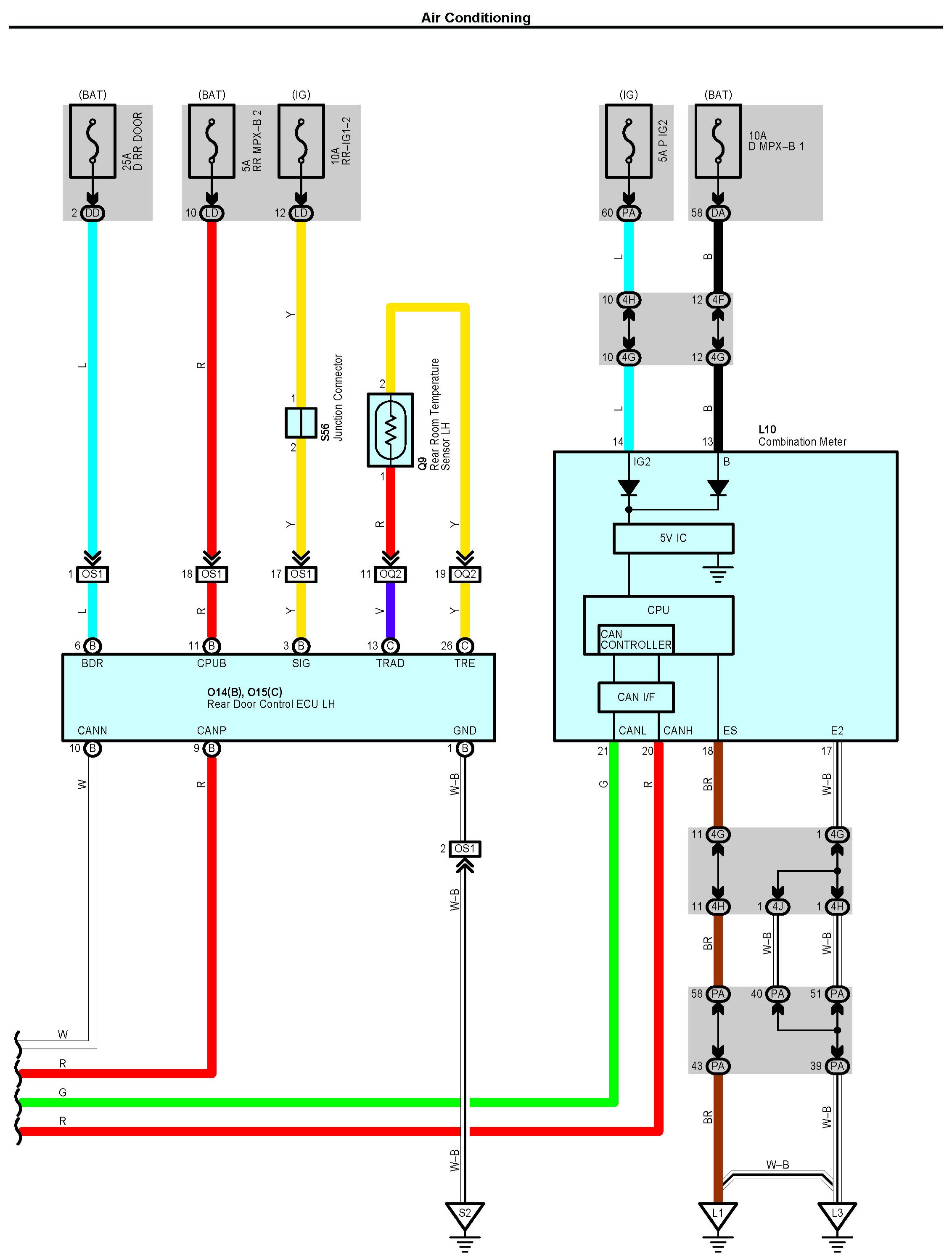

Air Conditioning Part 2:

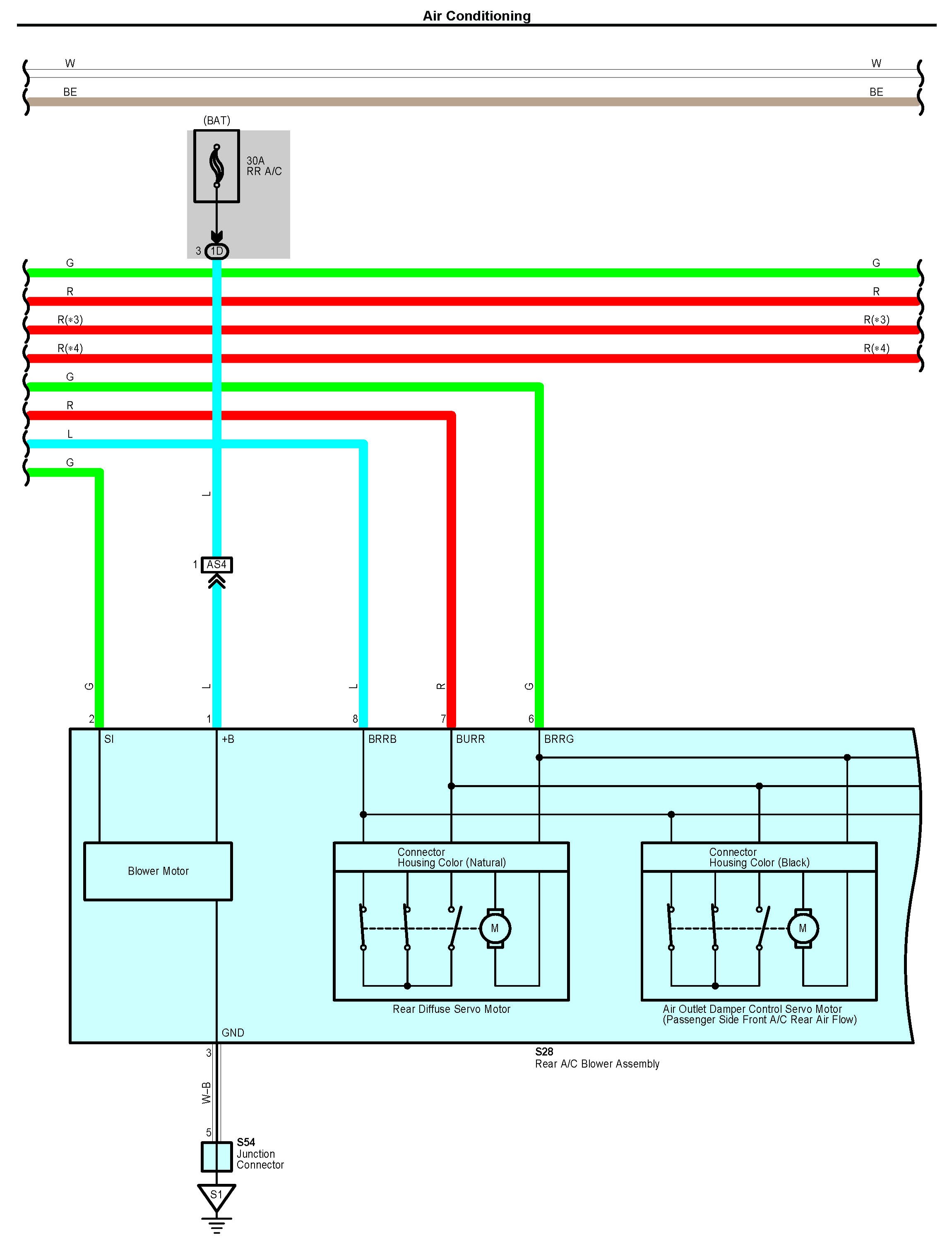

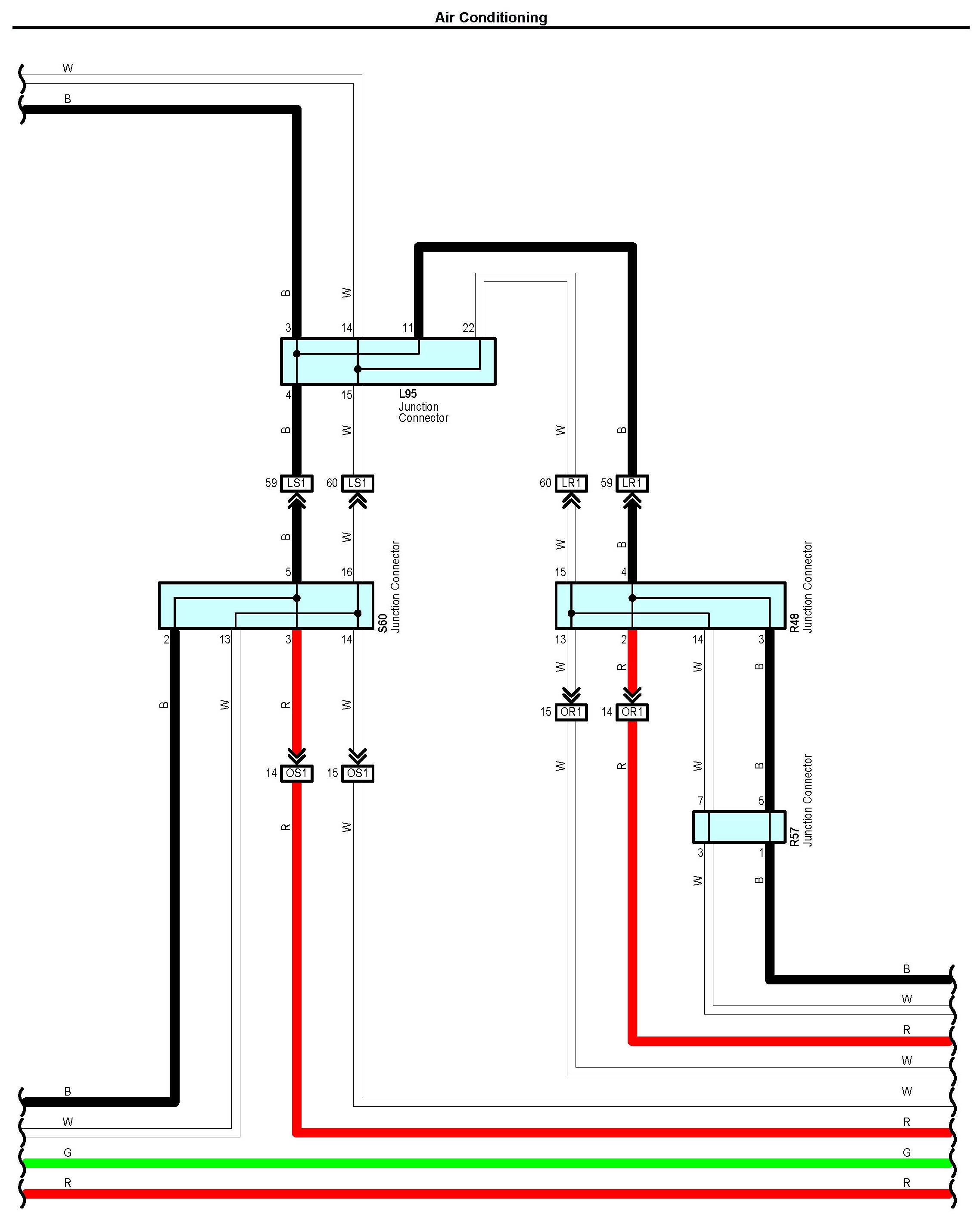

Air Conditioning Part 3:

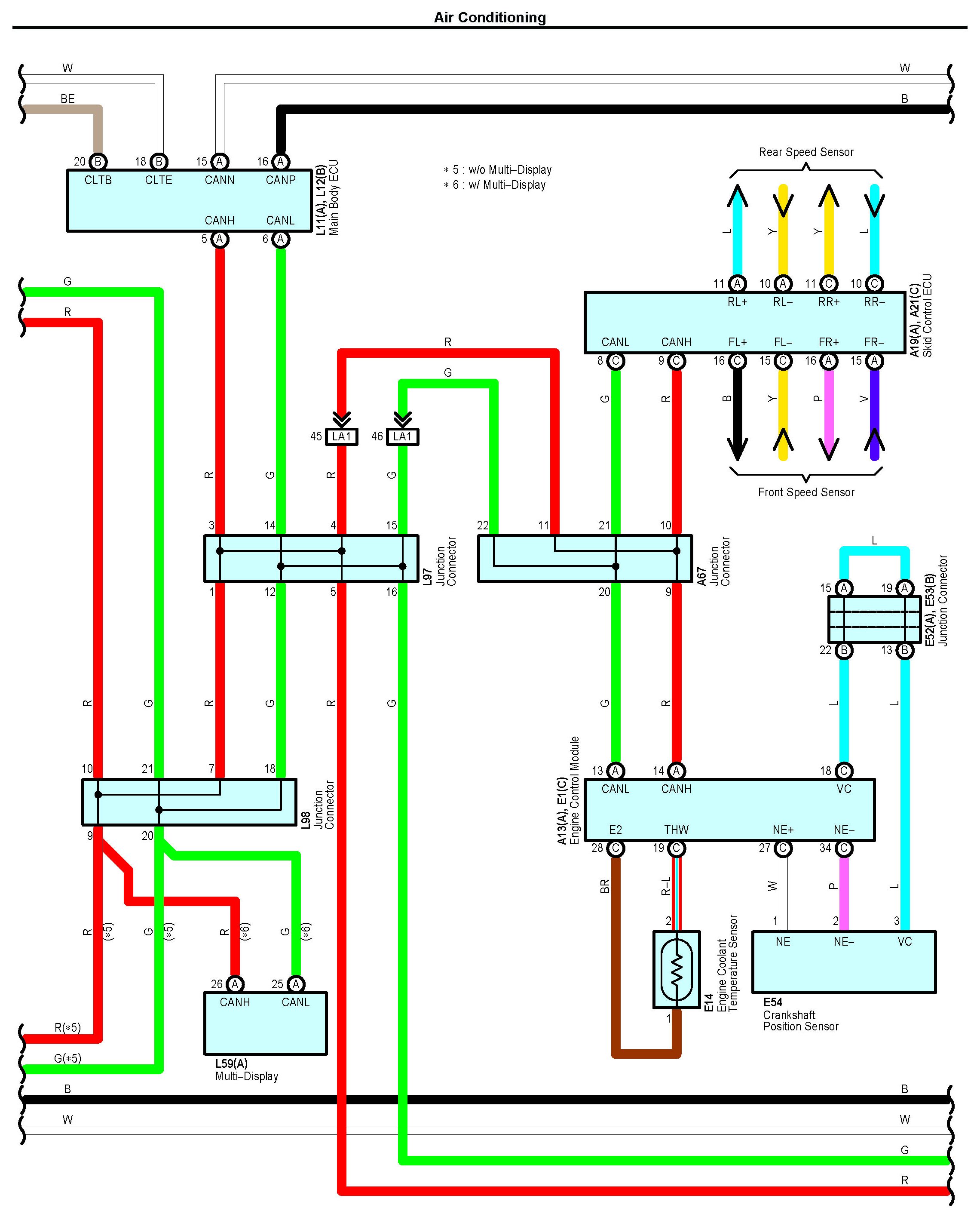

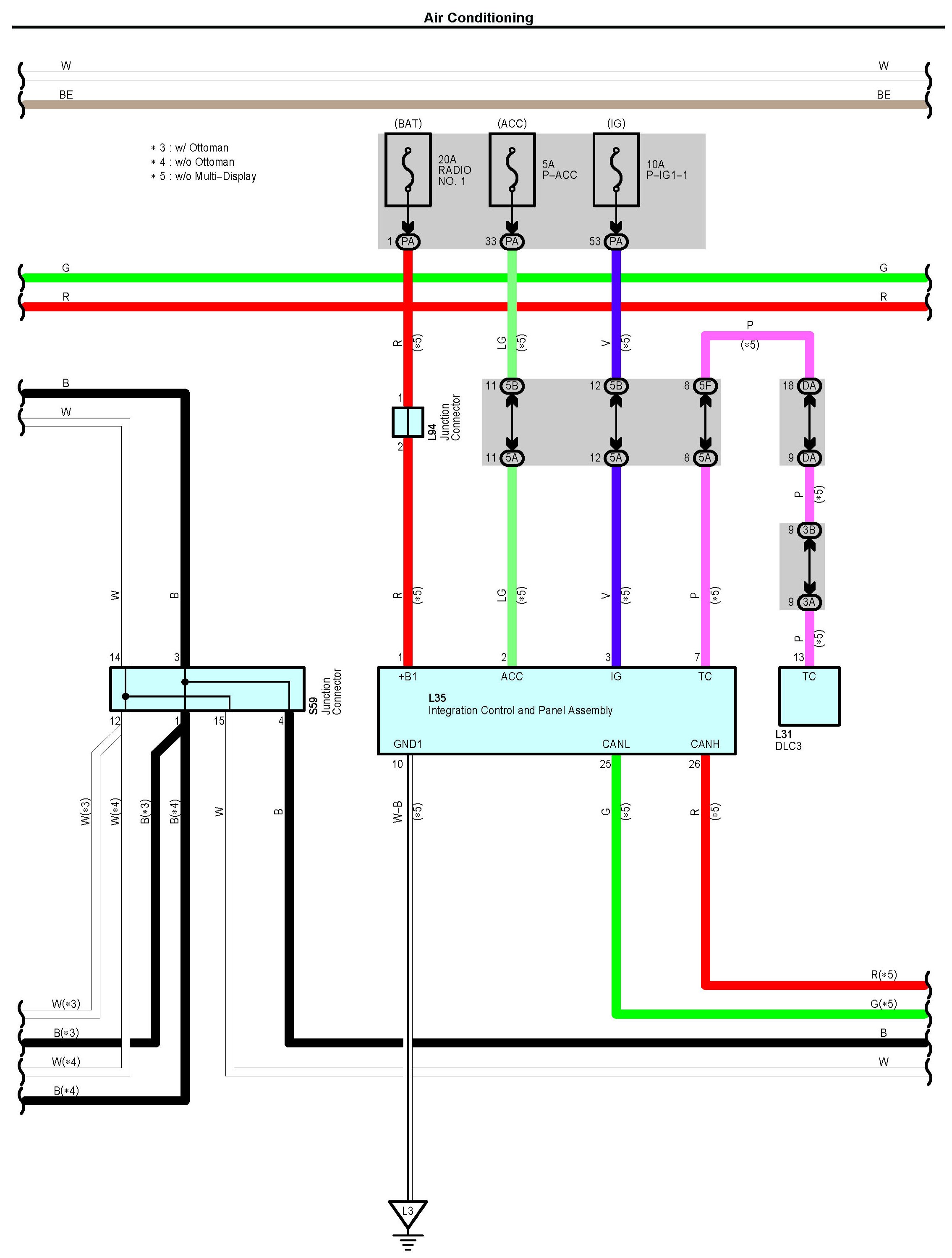

Air Conditioning Part 4:

Air Conditioning Part 5:

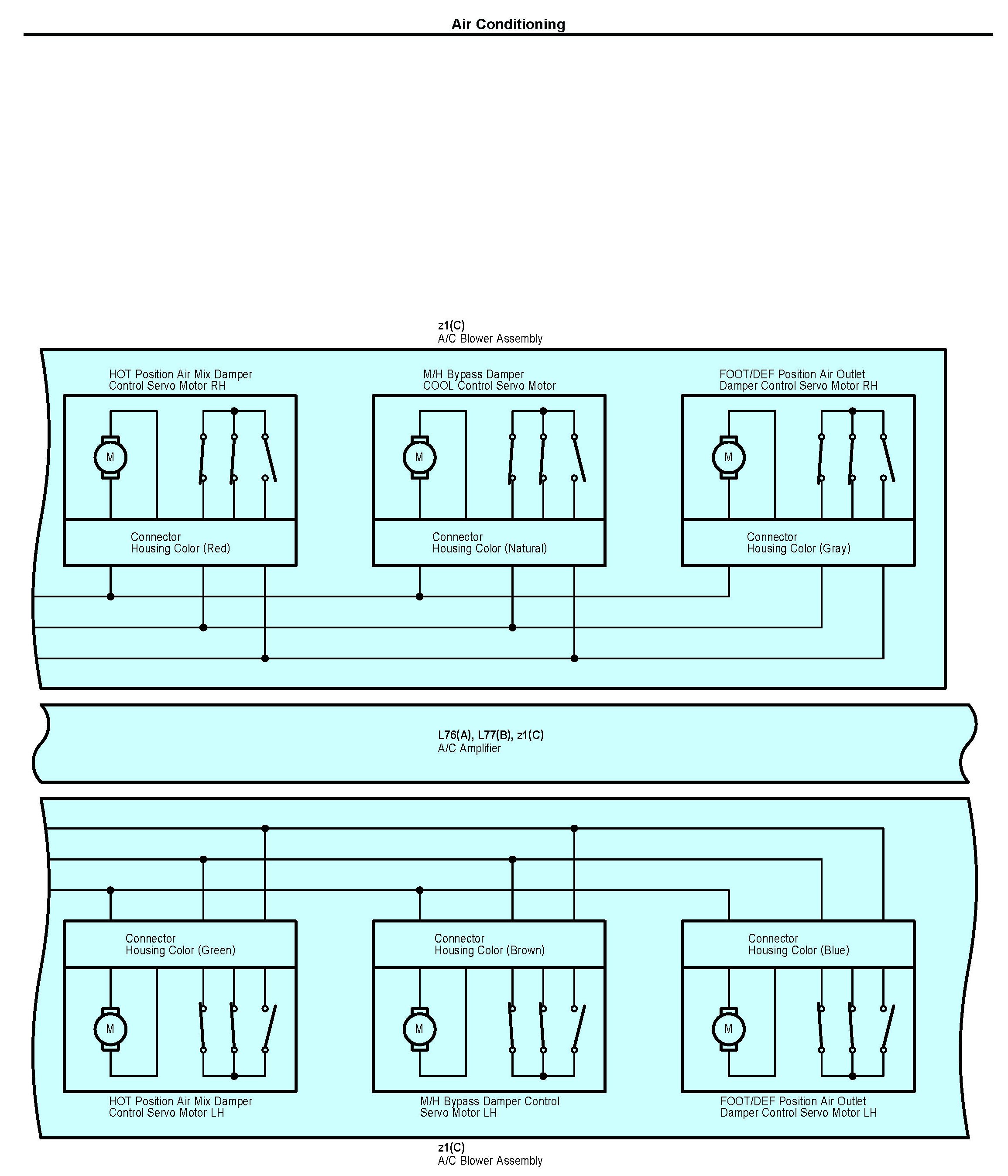

Air Conditioning Part 6:

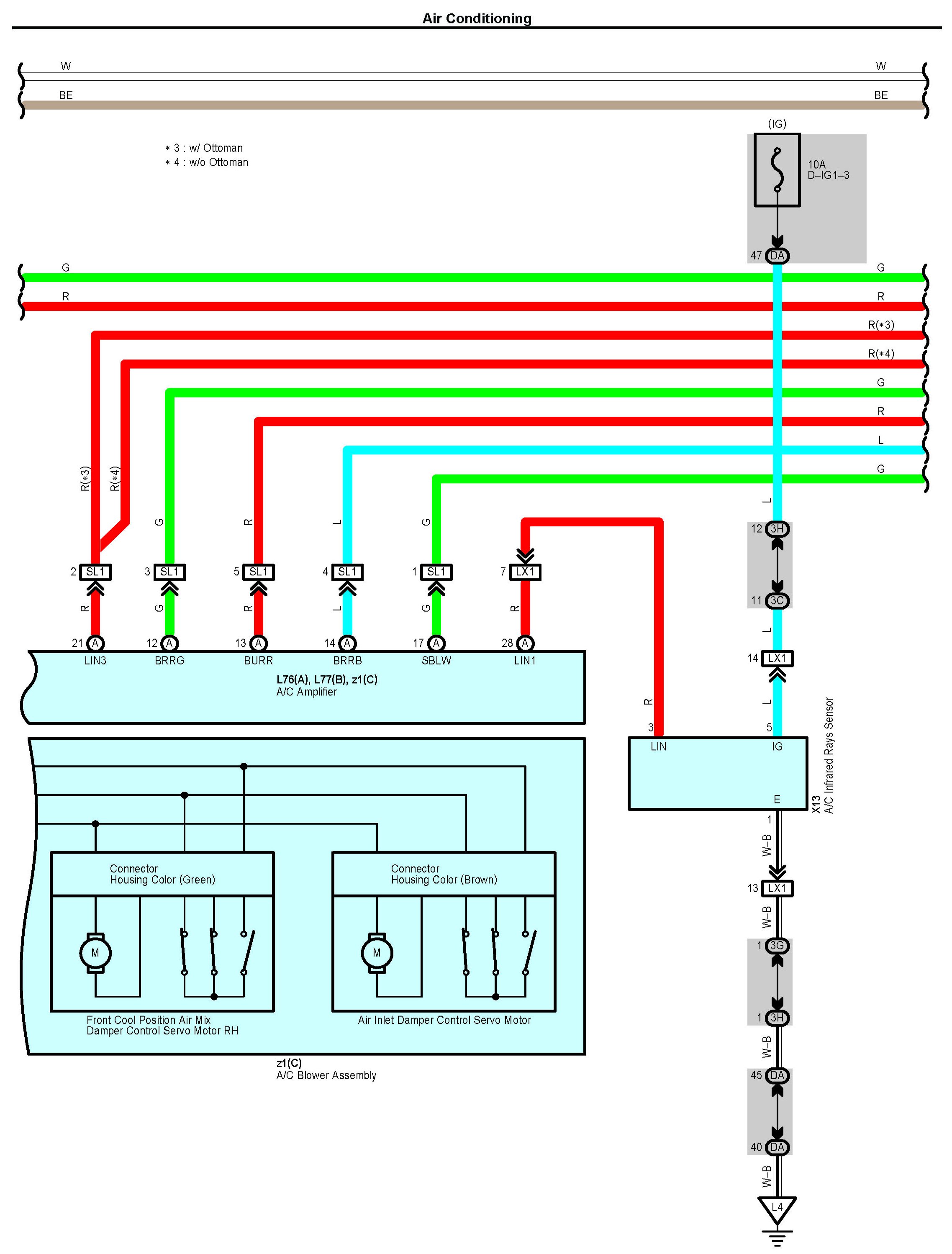

Air Conditioning Part 7:

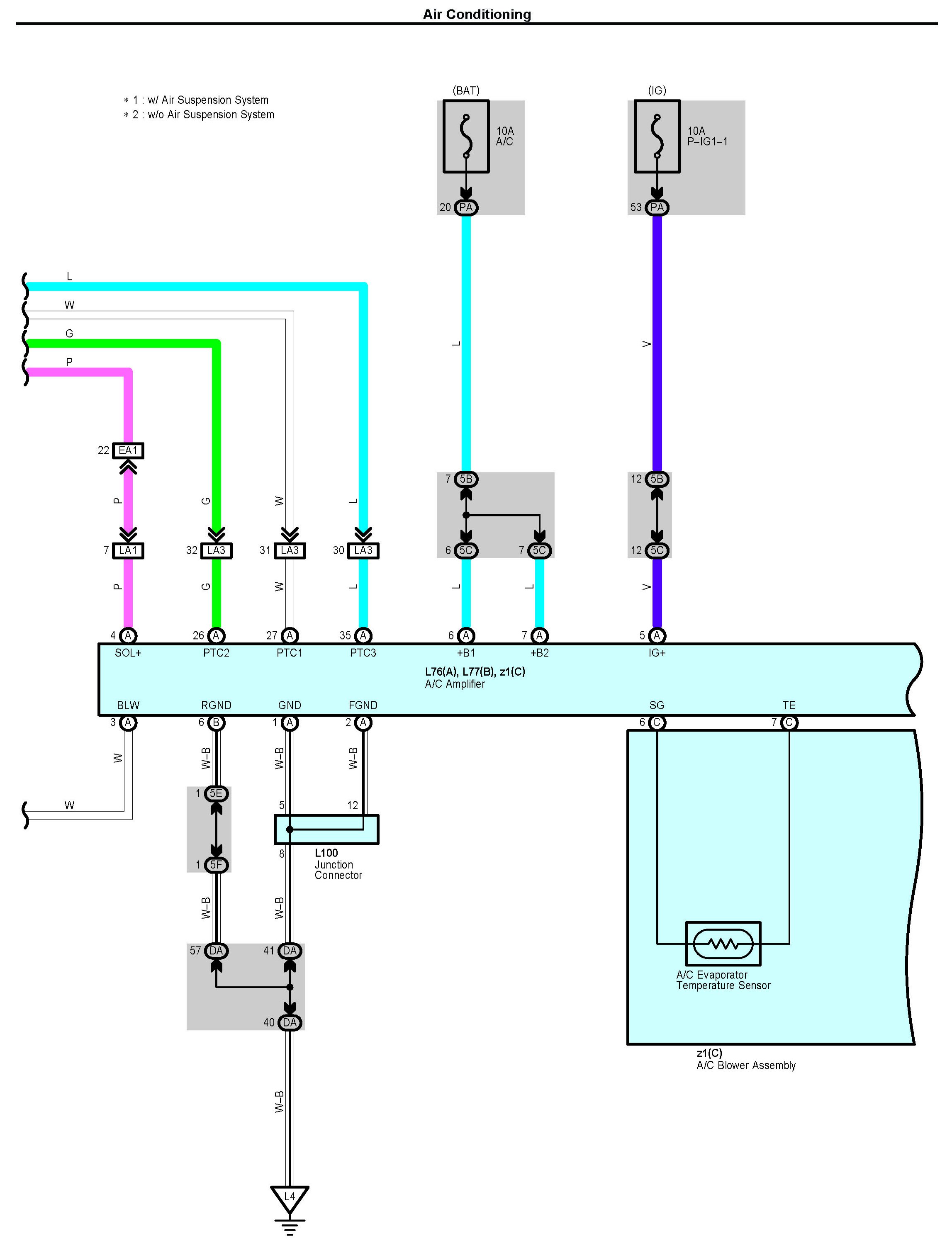

Air Conditioning Part 8:

Air Conditioning Part 9:

Air Conditioning Part 10:

Air Conditioning Part 11:

Air Conditioning Part 12:

Air Conditioning Part 13:

Air Conditioning Part 14:

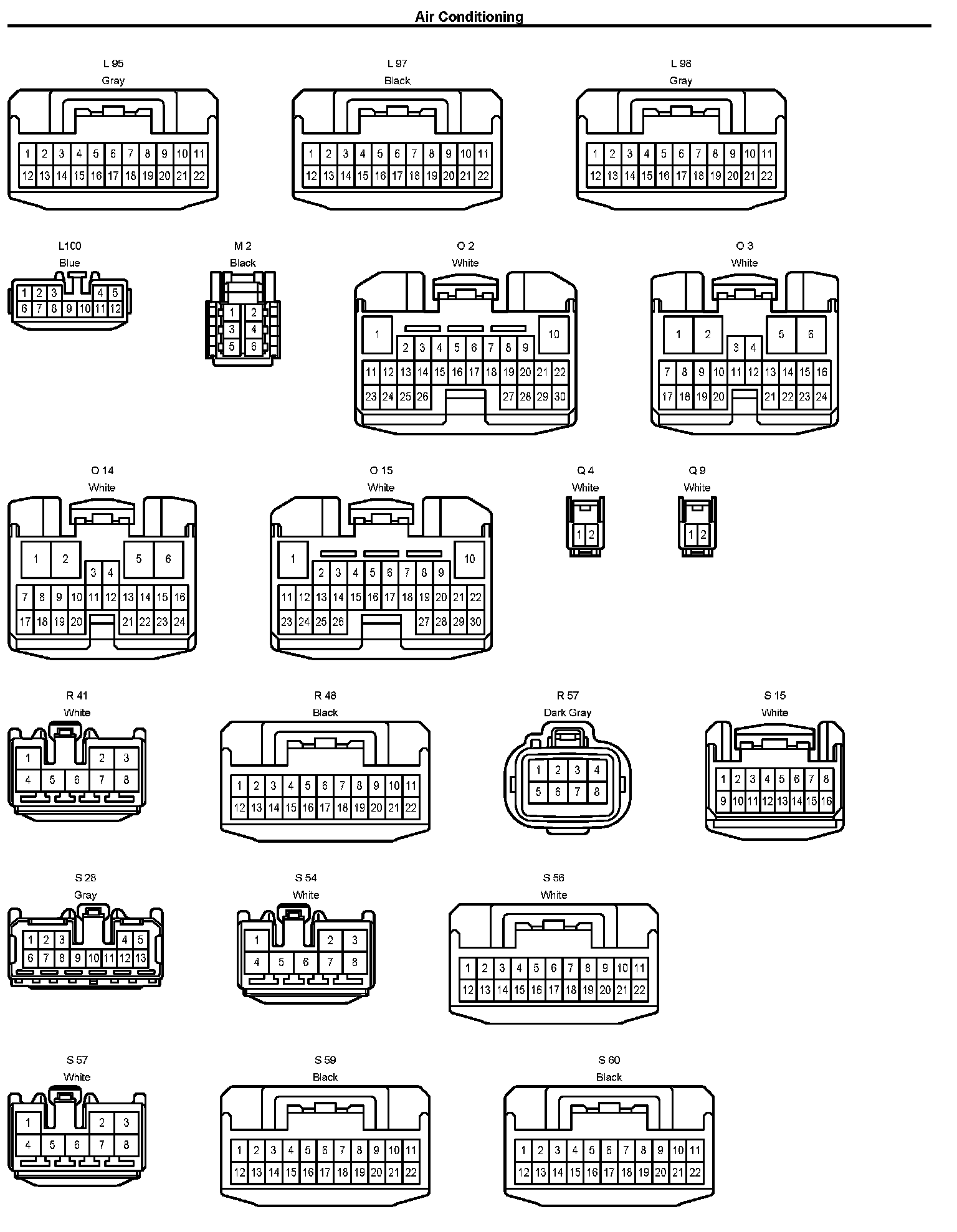

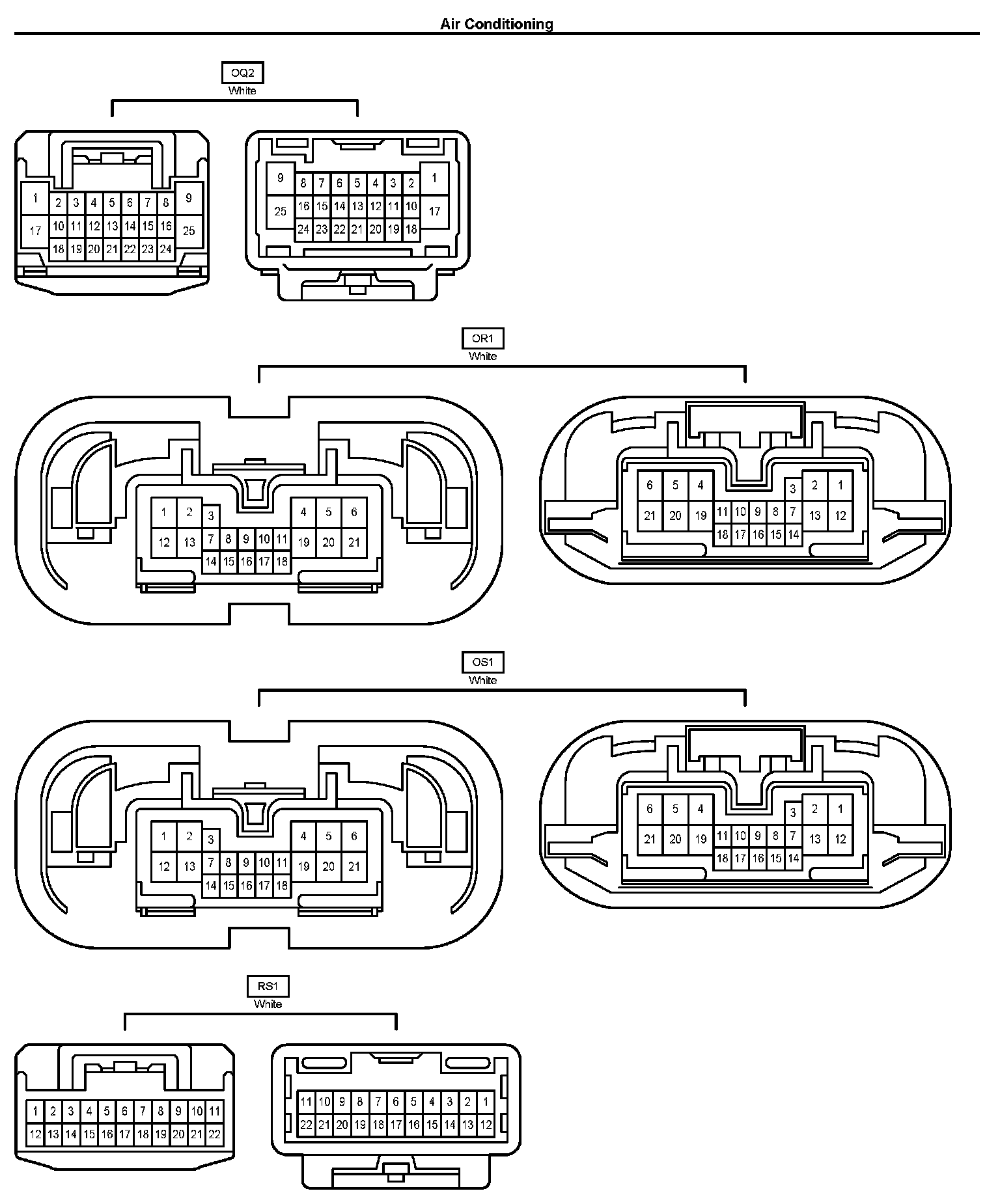

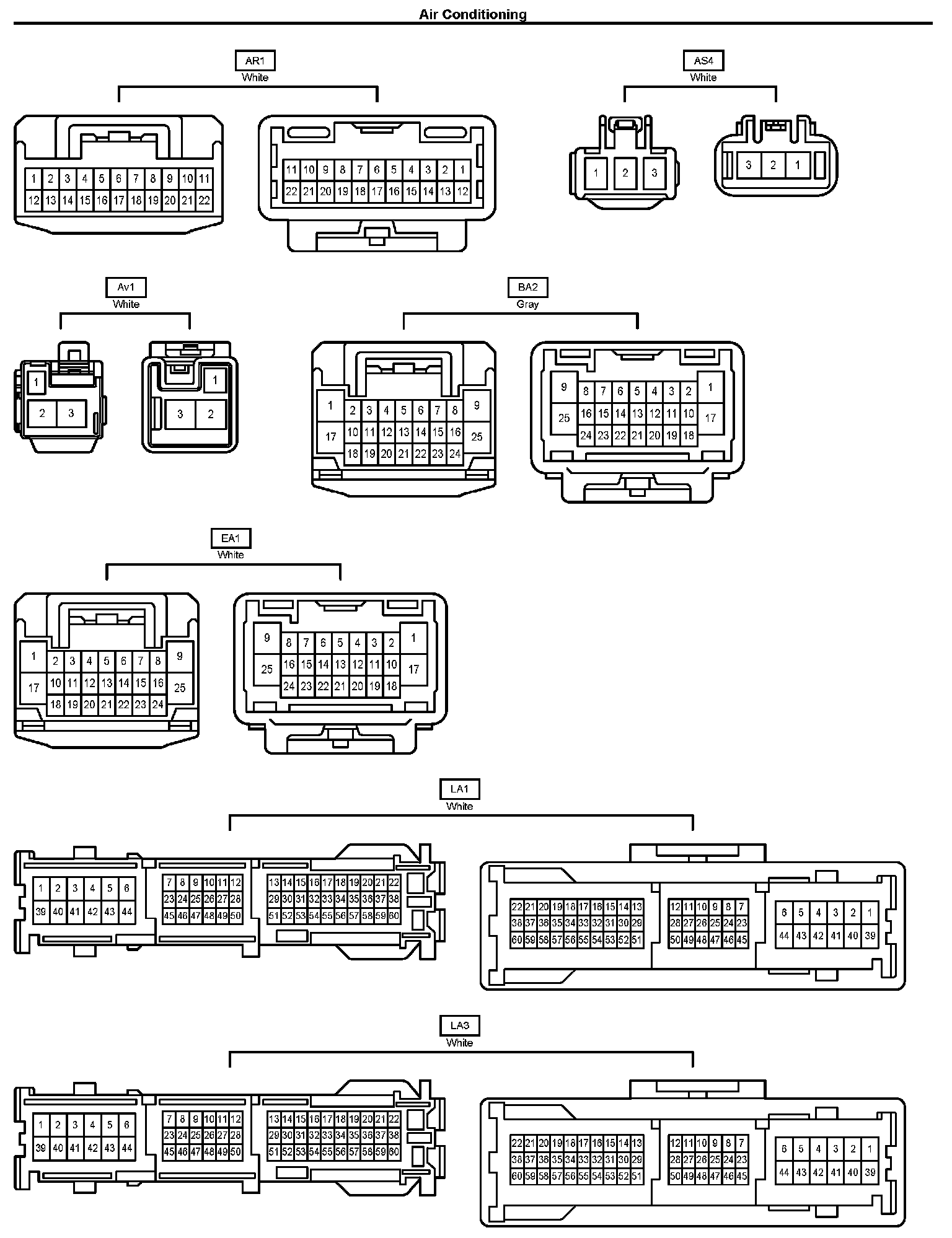

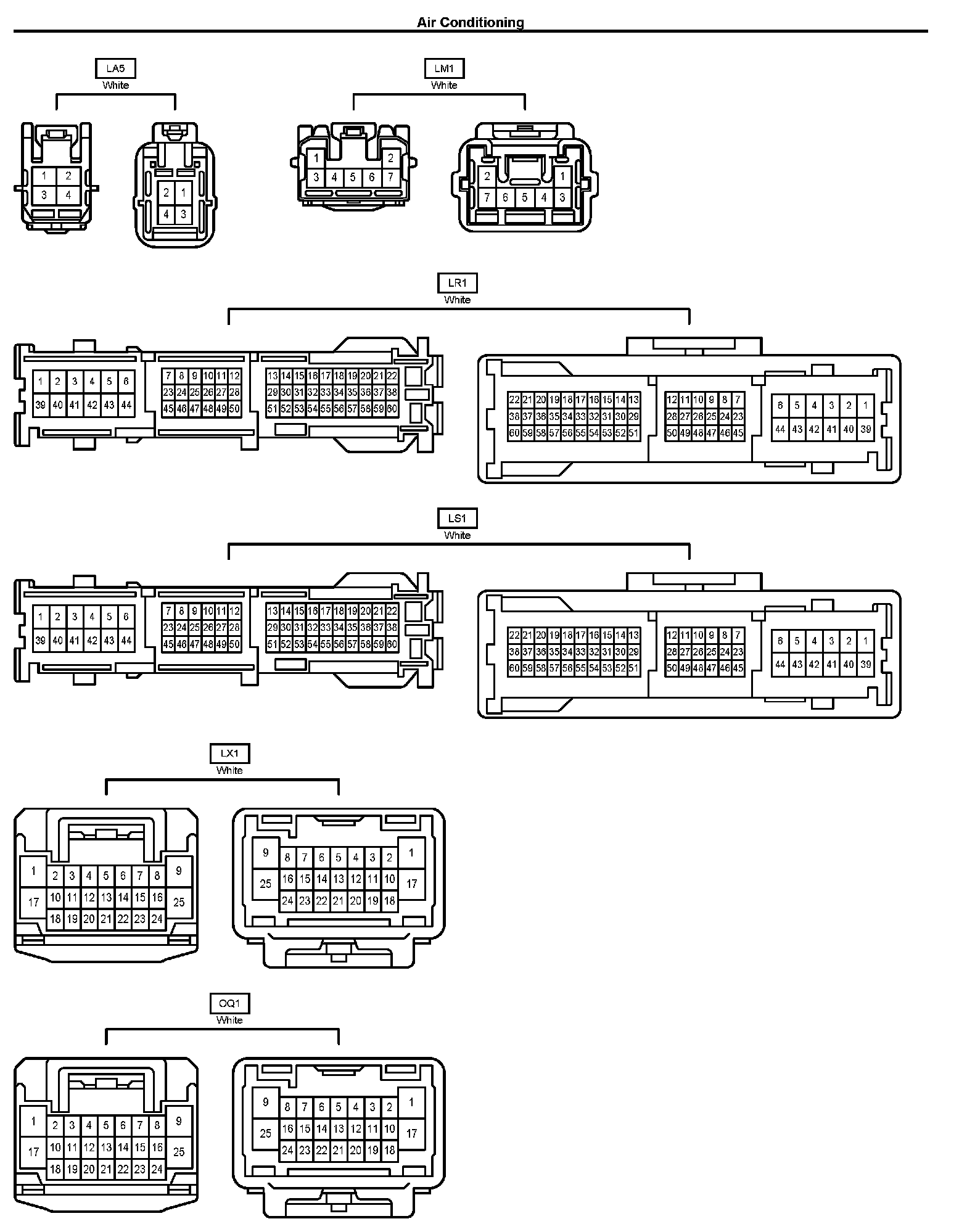

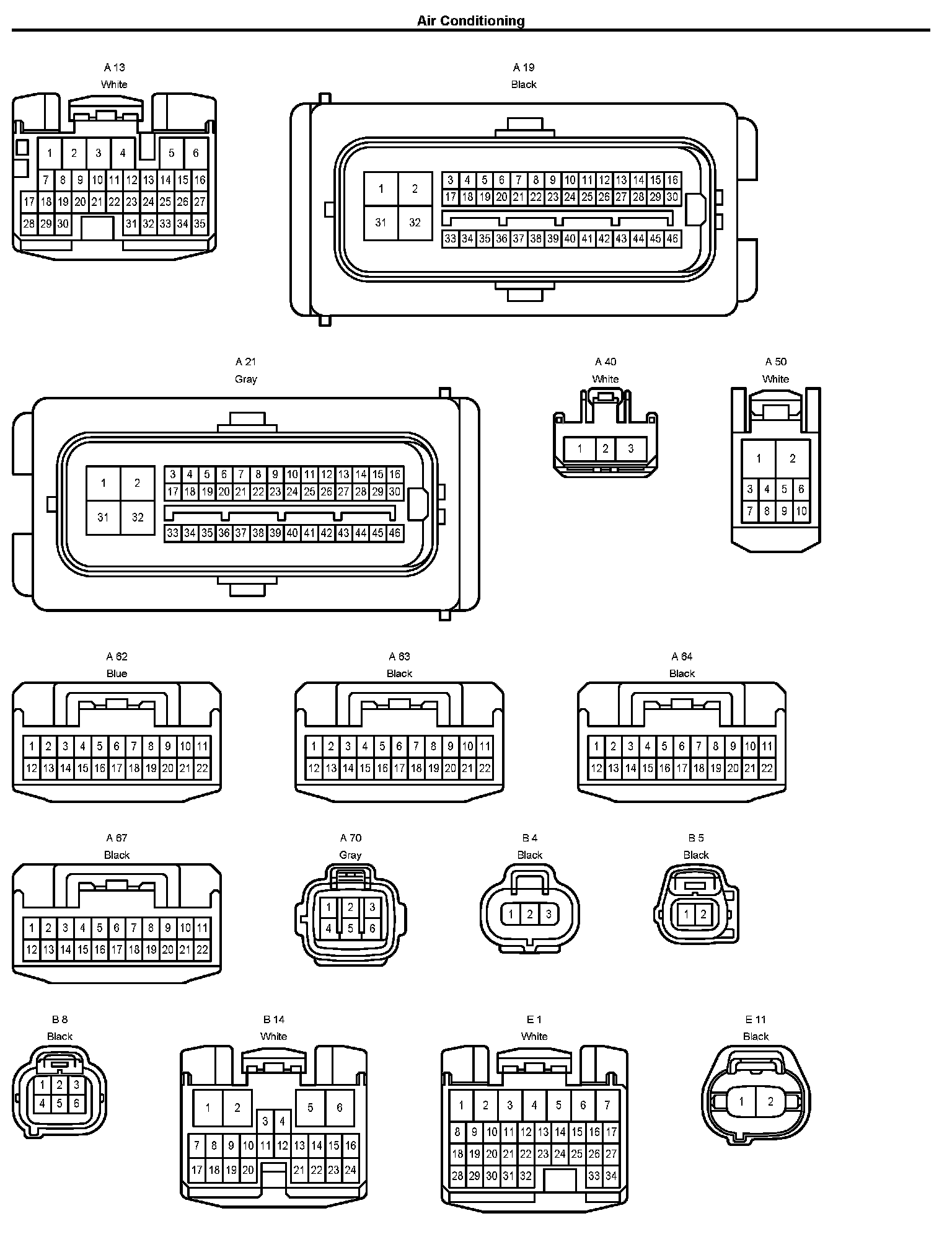

Connectors Part 1:

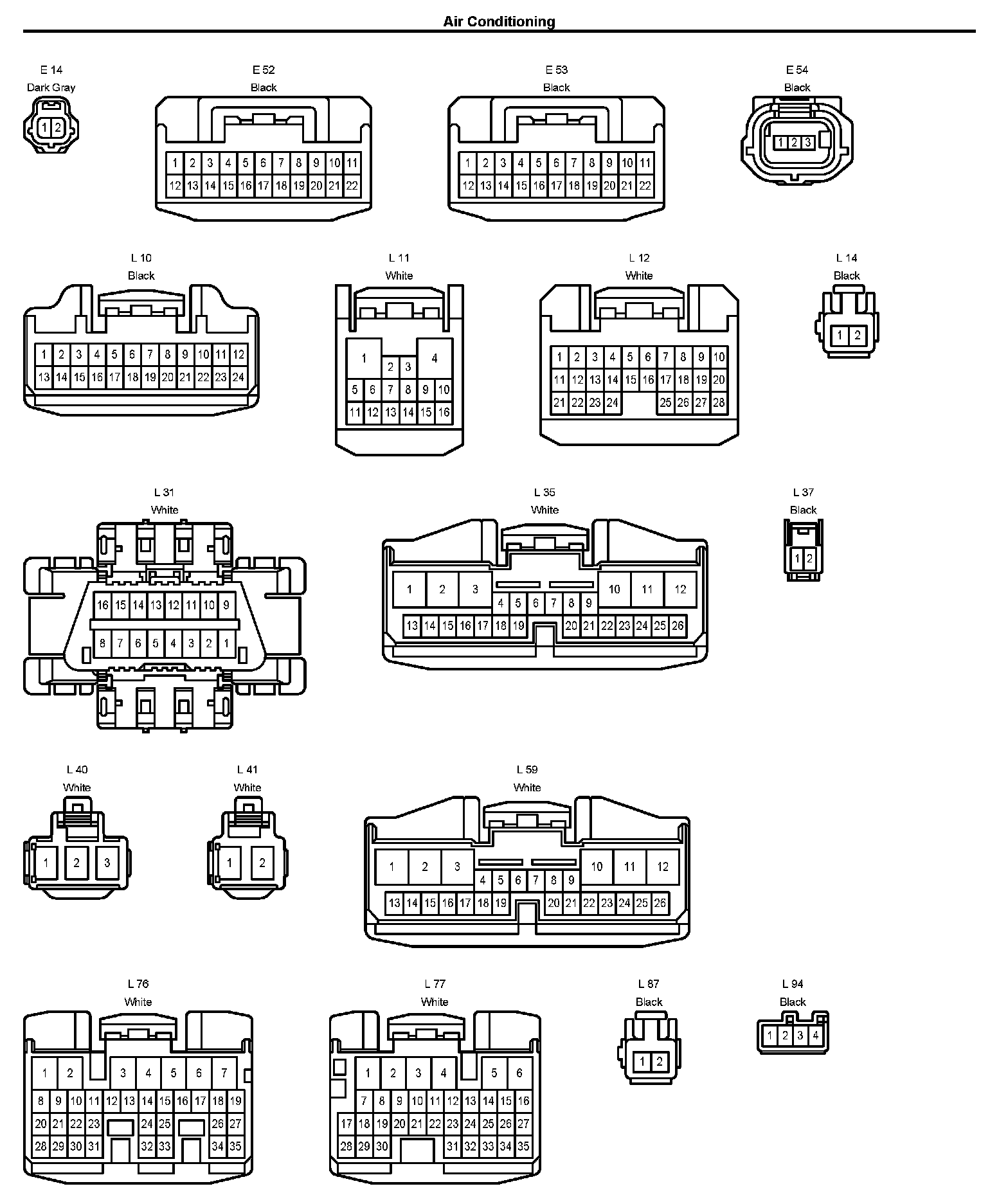

Connectors Part 2:

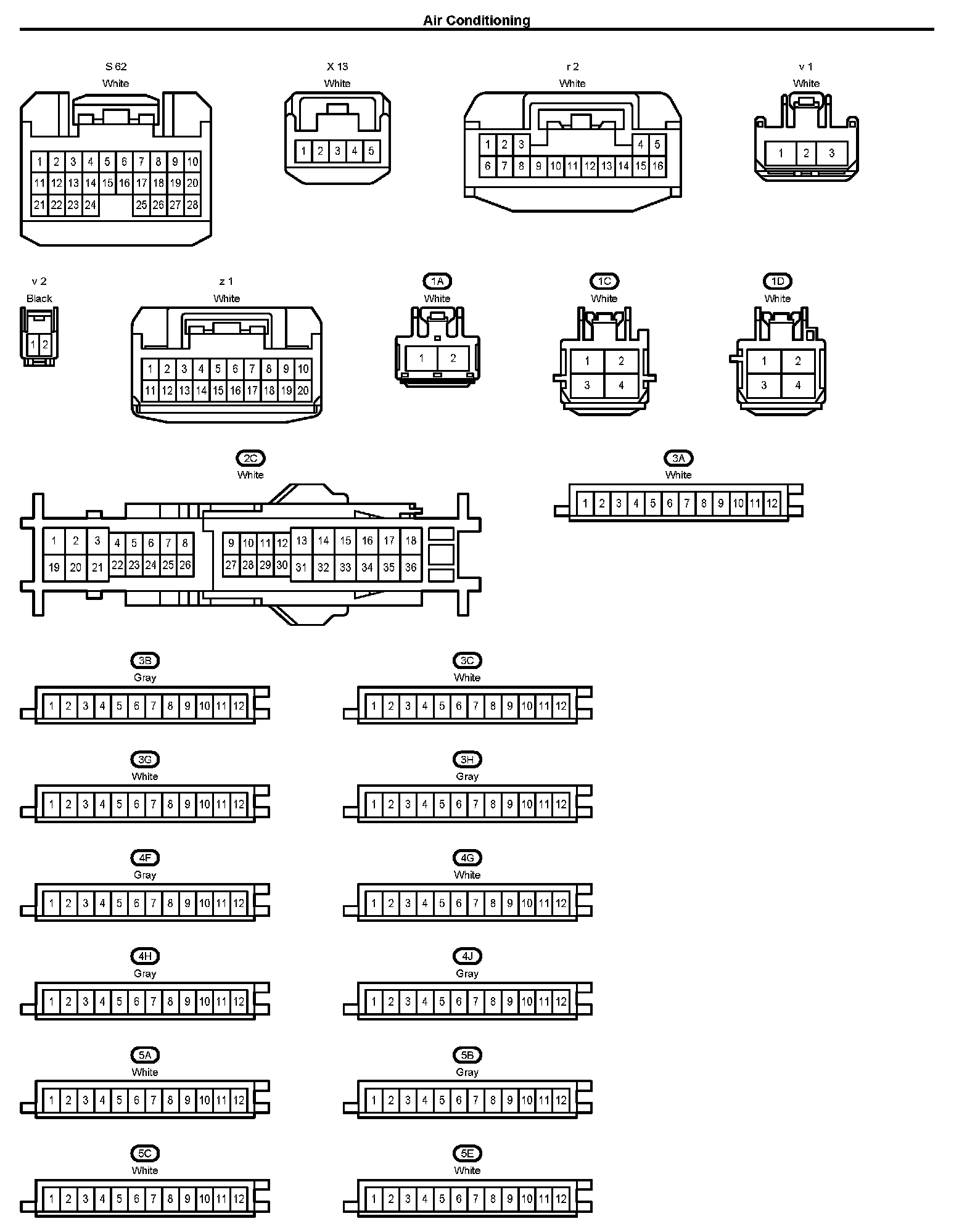

Connectors Part 3:

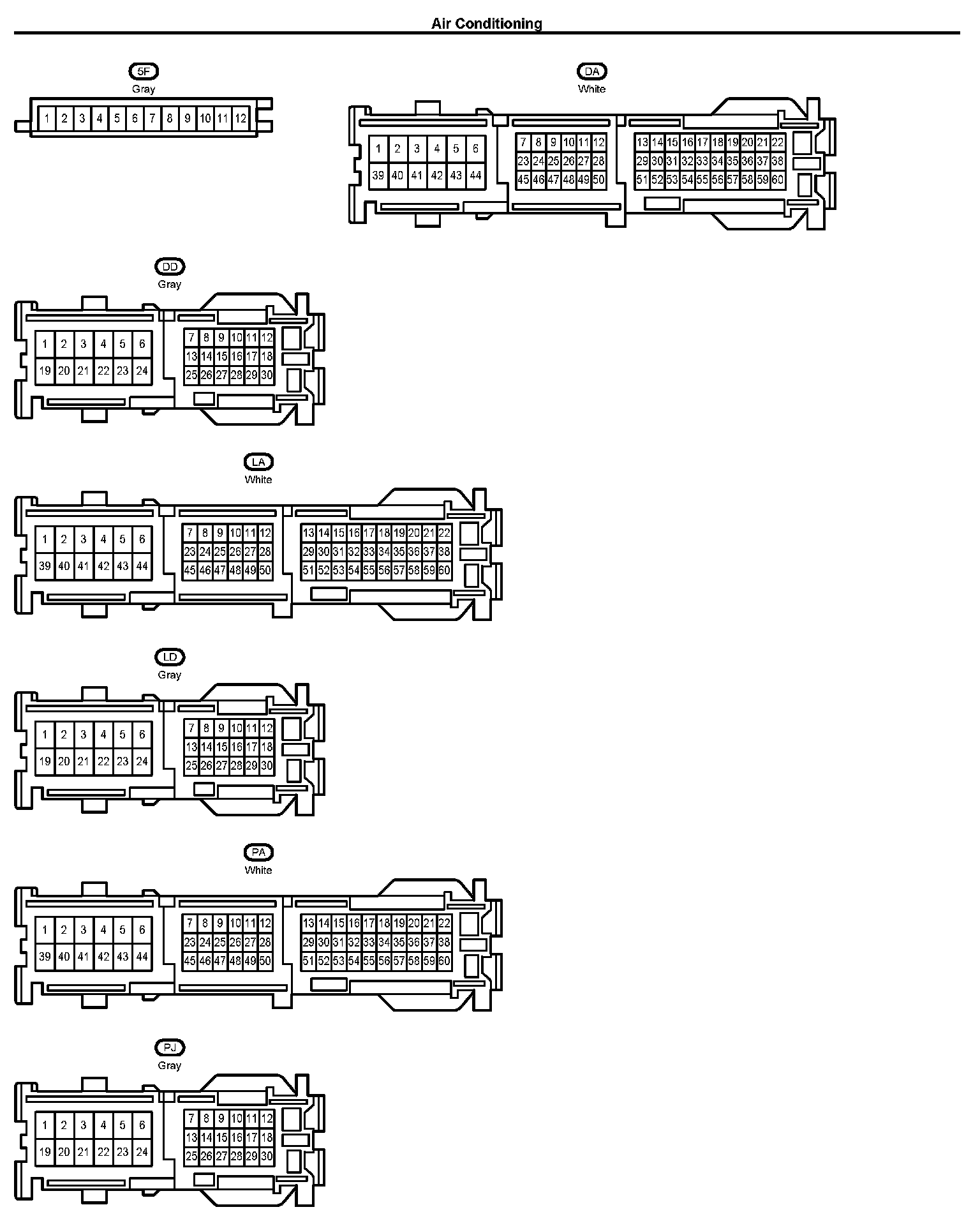

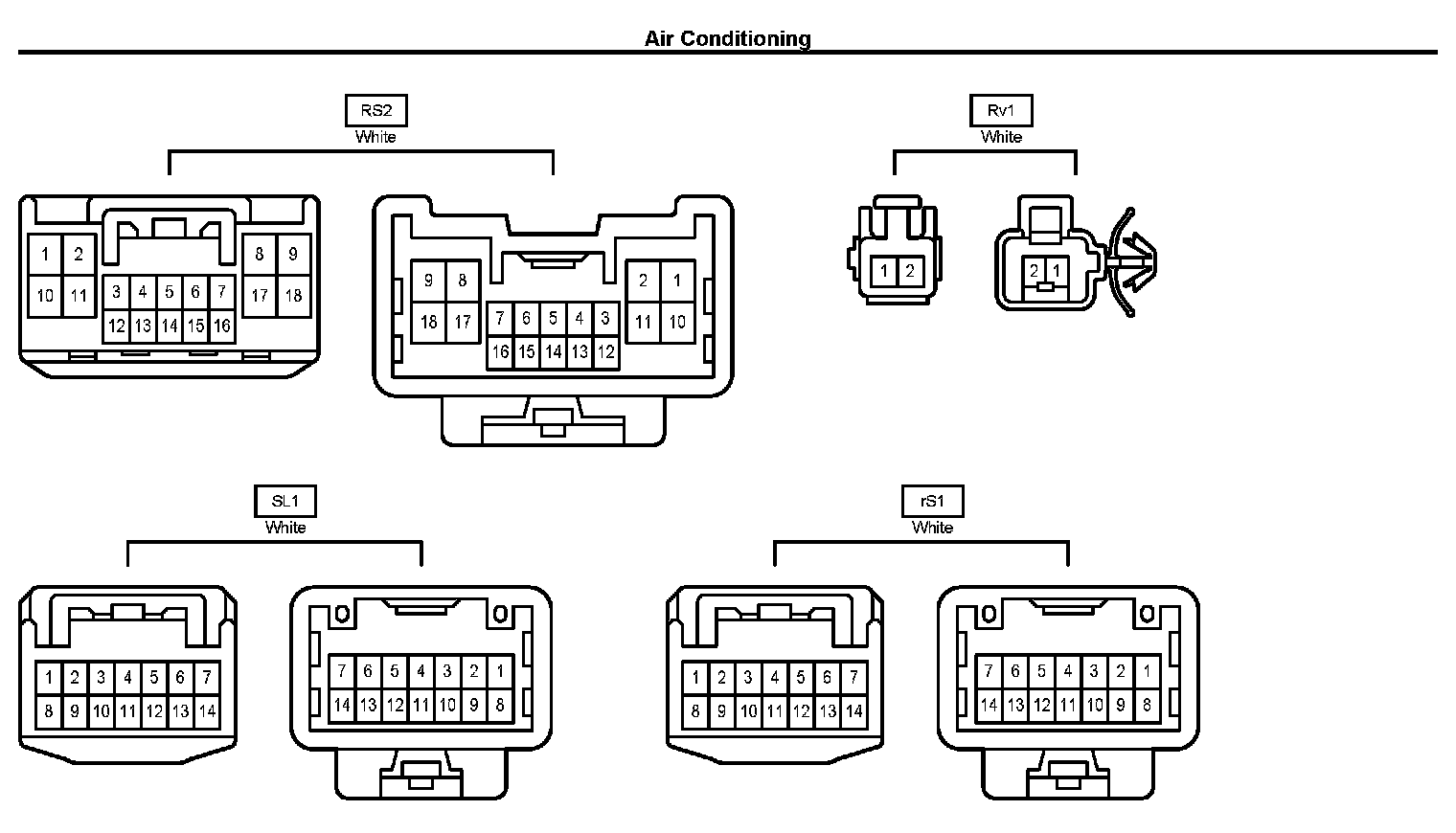

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Connectors Part 8:

Connectors Part 9:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
