Torque Specifications








SERVICE SPECIFICATIONS: BRAKE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

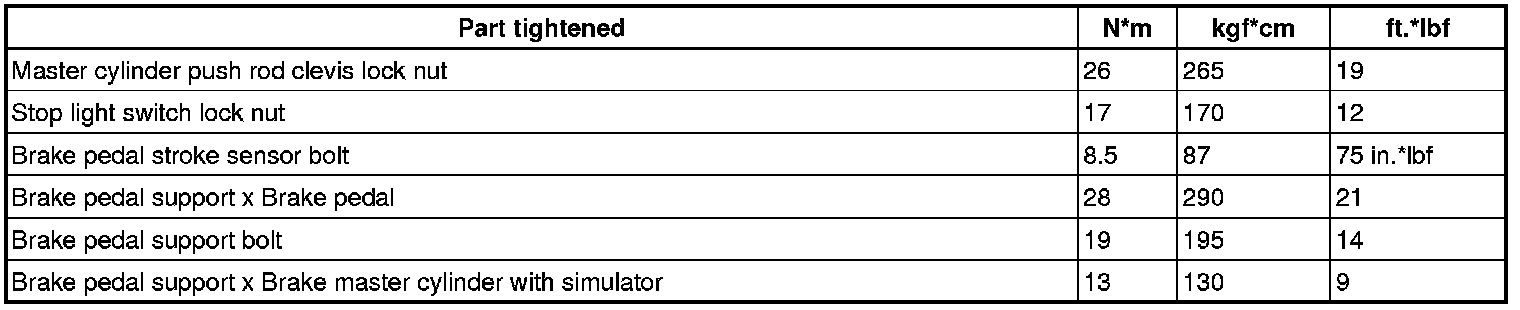

Brake Pedal Support

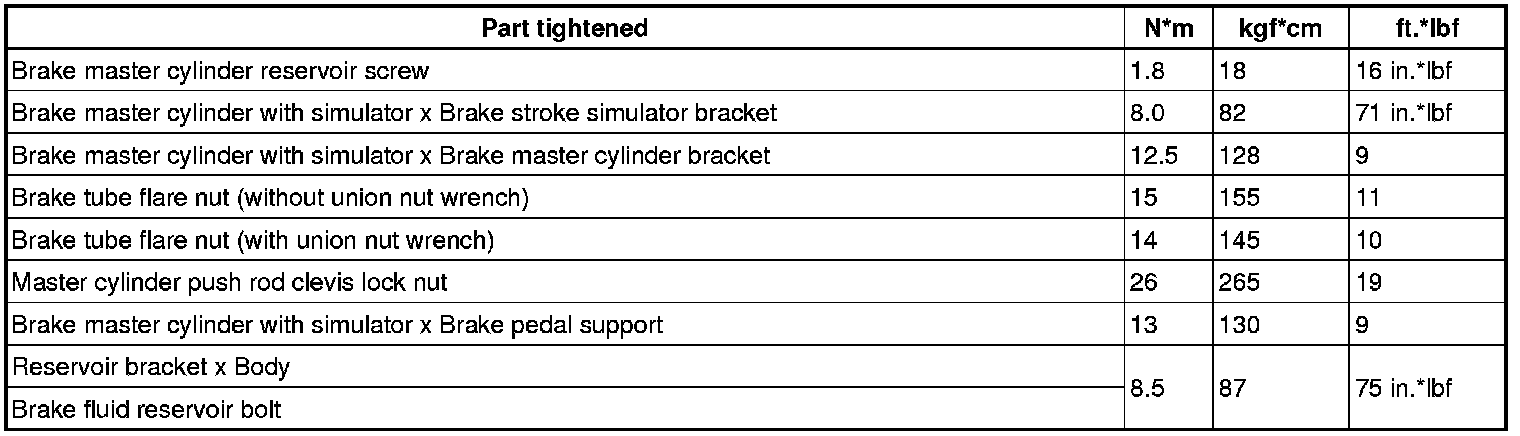

Brake Master Cylinder





Front Brake

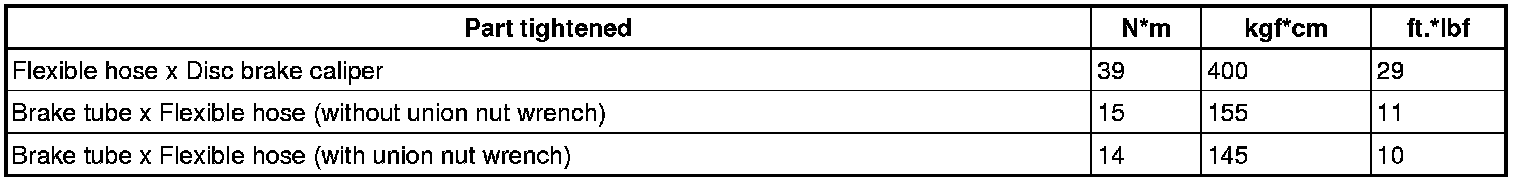

Front Brake Flexible Hose

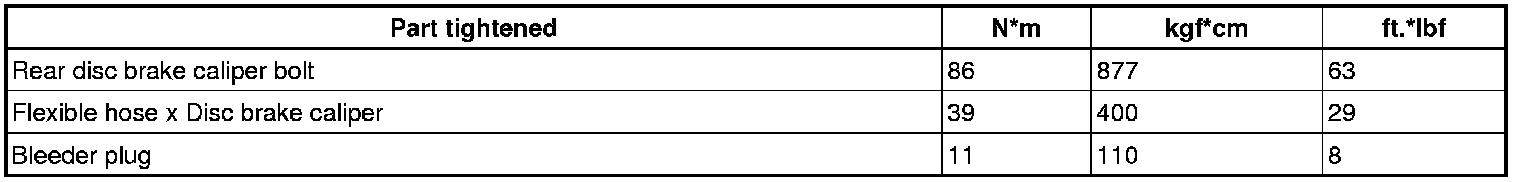

Rear Brake





Rear Brake Flexible Hose
