Diagnosis System

PARKING BRAKE: ELECTRIC PARKING BRAKE SYSTEM: DIAGNOSIS SYSTEM

DIAGNOSIS SYSTEM

1. CHECK DLC3 General Information
2. CHECK WARNING LIGHT
(a) Turn the engine switch on (IG).

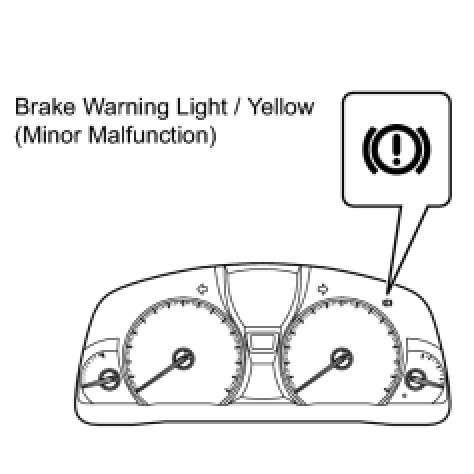

(b) Check that the brake warning light / Yellow (Minor Malfunction) comes on for 3 seconds.

3. DIAGNOSIS SYSTEM





(a) Warning light and indicator

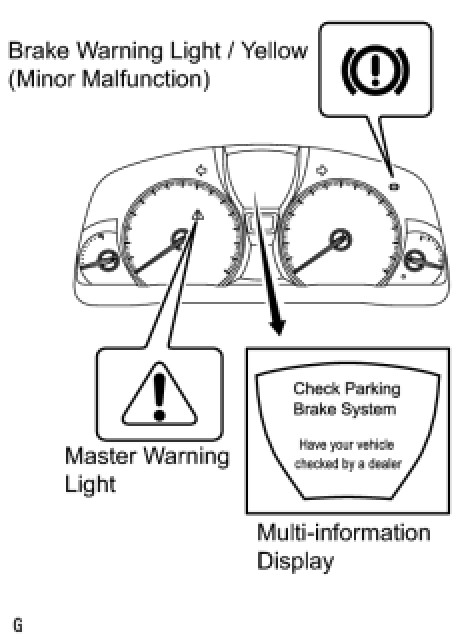

(1) When there is a problem with the electric parking brake system, "Check Parking Brake System" is displayed on the multi-information display, the master warning light turns on, and the brake warning light / Yellow (Minor Malfunction) comes on.
