BRAKE: REAR BRAKE FLEXIBLE HOSE: INSTALLATION

INSTALLATION
NOTE:
While the battery is connected, even if the engine switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal and open/close the doors while the battery is connected.
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL REAR BRAKE FLEXIBLE HOSE





(a) Connect the flexible hose with the union bolt and a new gasket.
Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)
NOTE:
Install the flexible hose lock securely in the lock hole in the disc brake caliper.

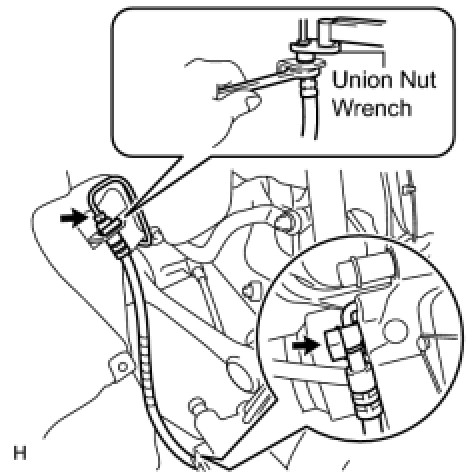

(b) Connect the brake tube to flexible hose with a union nut wrench (10 mm) while holding flexible hose with a wrench.
without union nut wrench - Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
with union nut wrench - Torque: 14 Nm (145 kgf-cm, 10 ft-lbf)
HINT:
- Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
- The torque value for use with a union nut wrench is effective when the union nut wrench is parallel to the torque wrench.
NOTICE:
- Do not bend or damage the brake tube.
- Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

(c) Install the flexible hose with a new clip.
NOTE:
Securely install the clip.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
4. BLEEDING PRECAUTION
CAUTION:
Be sure to read the "PRECAUTION" thoroughly before bleeding Service Precautions.

5. FILL RESERVOIR WITH BRAKE FLUID Service and Repair
6. BLEED BRAKE SYSTEM Service and Repair
7. INSPECT AND ADJUST BRAKE FLUID LEVEL IN RESERVOIR Service and Repair
8. INSPECT FOR BRAKE FLUID LEAK
9. INSTALL REAR WHEEL
Torque: 140 Nm (1428 kgf-cm, 103 ft-lbf)
10. CLEAR DTC
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
11. CHECK FOR DTC
(a) If any DTC is set, perform the troubleshooting for that DTC Reading and Clearing Diagnostic Trouble Codes.
