Luggage Compartment Door Closer Switch

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR CLOSER SWITCH: INSPECTION

INSPECTION

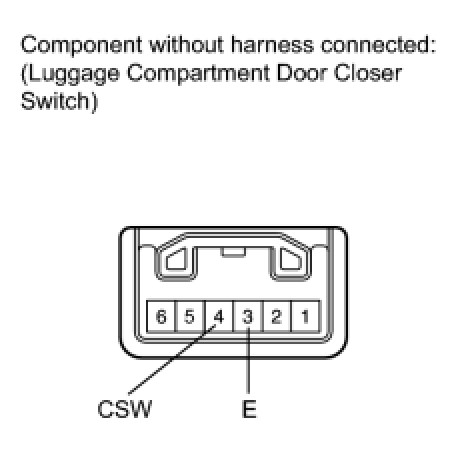

1. INSPECT LUGGAGE COMPARTMENT DOOR CLOSER SWITCH

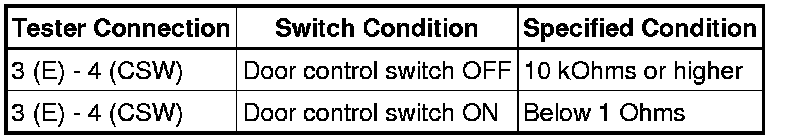

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the monitor switch.
