Installation

ENGINE HOOD / DOOR: LUGGAGE DOOR OPENING SWITCH: INSTALLATION

INSTALLATION

1. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY

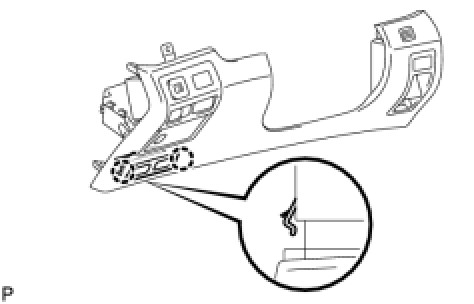

(a) Attach the 2 claws and door opening switch.
2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation
3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation
4. INSTALL INSTRUMENT SIDE PANEL LH Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
