Seat Vibration System

SEAT: SEAT VIBRATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK SEAT VIBRATION MODULE ASSEMBLY

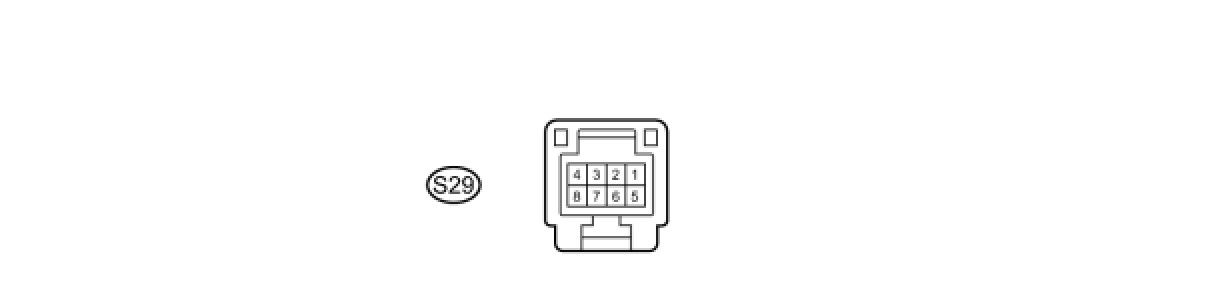

(a) Disconnect the S29 connector.

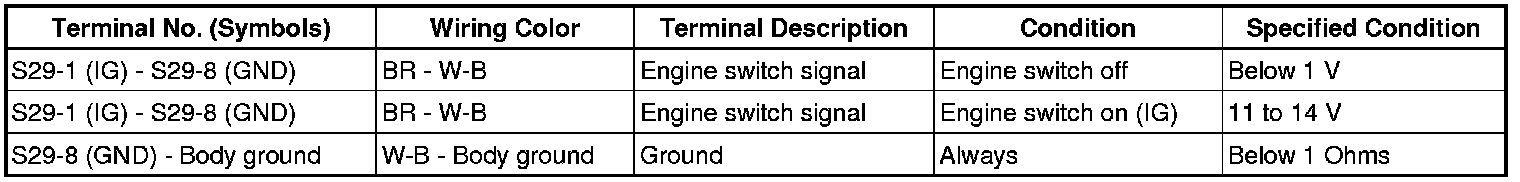

(b) Measure the voltage and resistance of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the S29 connector.
(d) Measure the voltage of the connector.





If the result is not as specified, the module may have a malfunction.
