Disassembly

SEAT: REAR SEAT ASSEMBLY (for Ottoman): DISASSEMBLY

DISASSEMBLY
CAUTION:
Wear protective gloves. Sharp areas on the seatback spring, seat adjuster and seat cushion spring may injure your hands.

1. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY LH





(a) Remove the hog rings and seat cushion spring.
2. REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY LH





(a) Remove the hog rings and seat cushion cover from the seat cushion pad.
3. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY LH





(a) Remove the 3 screws and shoulder belt guide.
4. REMOVE REAR SEAT HEADREST ASSEMBLY LH





(a) Remove the 2 pins and headrest.
5. REMOVE REAR SEAT HEADREST SUPPORT LH





(a) Detach the 4 claws and remove the 2 headrest supports.





6. REMOVE POSITION CONTROL ECU LH
(a) Disconnect the 2 connectors.
(b) Remove the 2 bolts and position control ECU.





7. REMOVE SEAT CLIMATE CONTROL ECU LH
(a) Disconnect the 2 connectors.
(b) Remove the 2 bolts and seat climate control ECU.





8. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
(a) Remove the wire harness clamp.
(b) Disconnect the connector.
(c) Remove the 2 bolts and detach the 2 claws.
(d) Remove the headrest adjuster.

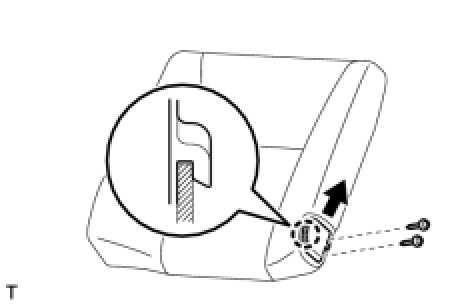

9. REMOVE REAR SEAT COVER CAP LH





(a) Remove the 2 screws.
(b) Detach the claw and remove the cover cap.

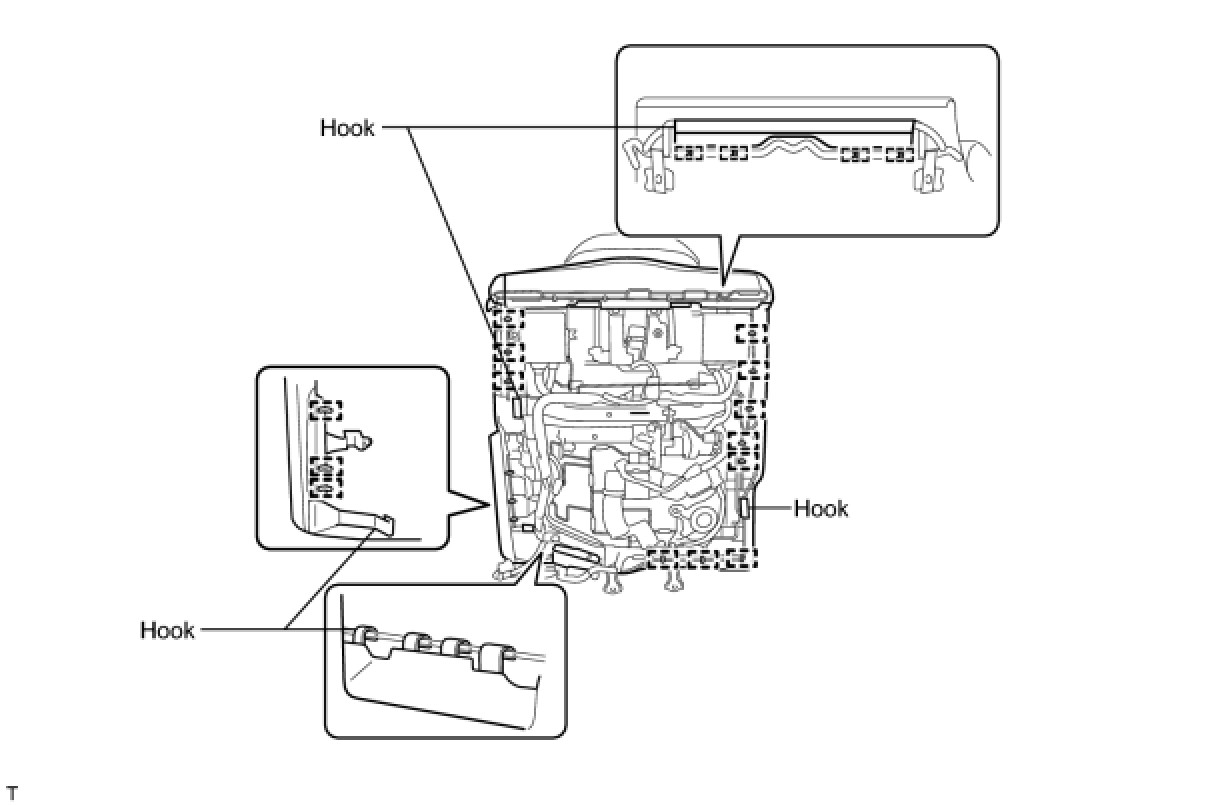

10. REMOVE REAR SEATBACK COVER WITH PAD LH





(a) Remove the nut and 2 seatback cover brackets.





(b) Disconnect the connector.
(c) Detach the clip and disconnect the wire harness.
(d) Detach the hooks and remove the hog rings and seatback cover with pad from the seatback spring.





11. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY LH

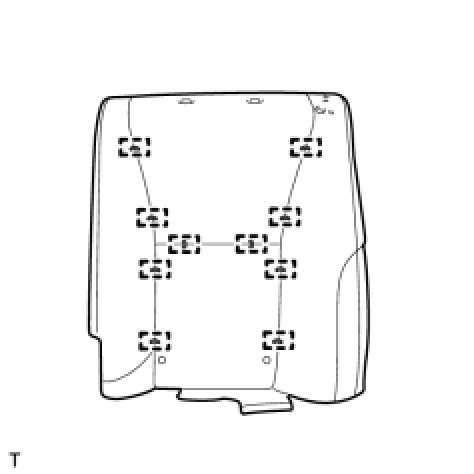

(a) Remove the hog rings and seatback cover from the seatback pad.
12. REMOVE SEATBACK CLIMATE BLOWER SUB-ASSEMBLY LH





(a) Disconnect the 2 connectors and remove the 3 nuts.





(b) Detach the 3 hooks and remove the seatback climate blower.
13. REMOVE REAR SEAT WIRE LH
(a) Disconnect the connectors.
(b) Detach the clamps and remove the wire.
14. REMOVE REAR SEAT INNER BELT ASSEMBLY LH Removal
15. REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY LH





(a) Remove the nut and anchor bracket.
16. REMOVE SEAT CLIMATE CONTROL CONTROLLER LH





(a) Remove the wire harness clamp.





(b) Disconnect the 2 connectors.
(c) Remove the 2 screws.
(d) Detach the claws and remove the climate control controller.





17. REMOVE SEAT CUSHION CLIMATE BLOWER SUB-ASSEMBLY LH
(a) Remove the 3 nuts and climate blower.





18. REMOVE AIR FILTER LH
(a) Detach the 2 claws and remove the filter.





19. REMOVE REAR SEAT CUSHION SPRING ASSEMBLY RH
(a) Using a clip remover, remove the clip.
(b) Detach the hooks and remove the hog rings. Then remove the seat cushion spring.

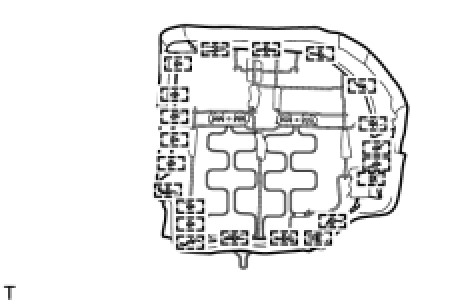

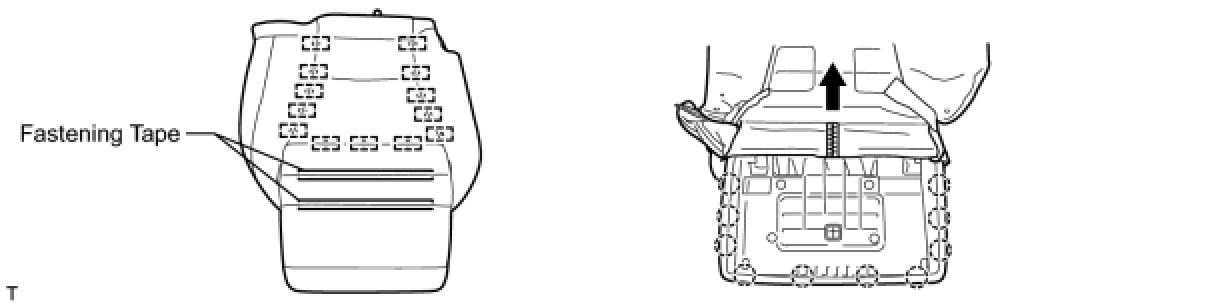

20. REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY RH





(a) Remove the hog rings and detach the 2 fastening tapes.
(b) Unfasten the fastener and detach the 10 claws. Then remove the seat cushion cover.
21. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY RH





(a) Remove the 3 screws and shoulder belt guide.
22. REMOVE REAR SEAT HEADREST ASSEMBLY RH





(a) Remove the 2 pins and headrest.

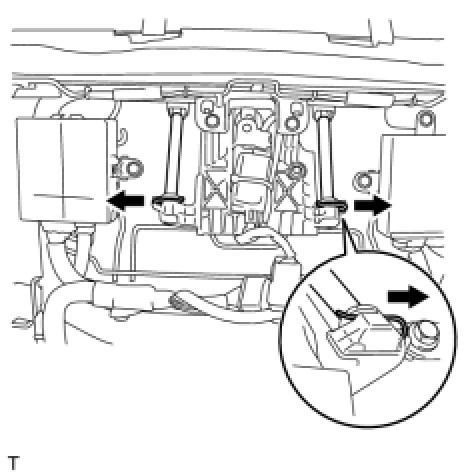

23. REMOVE REAR SEAT HEADREST SUPPORT RH





(a) Detach the 4 claws and remove the 2 headrest supports.





24. REMOVE POSITION CONTROL ECU RH
(a) Disconnect the 2 connectors.
(b) Remove the 2 bolts and position control ECU.





25. REMOVE SEAT CLIMATE CONTROL ECU RH
(a) Disconnect the 2 connectors.
(b) Remove the 2 bolts and climate control ECU.





26. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH
(a) Remove the wire harness clamp.
(b) Disconnect the connector.
(c) Remove the 2 bolts and detach the 2 claws.
(d) Remove the headrest adjuster.

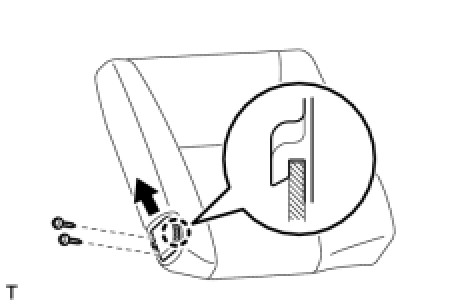

27. REMOVE REAR SEAT COVER CAP RH





(a) Remove the 2 screws.
(b) Detach the claw and remove the cover cap.

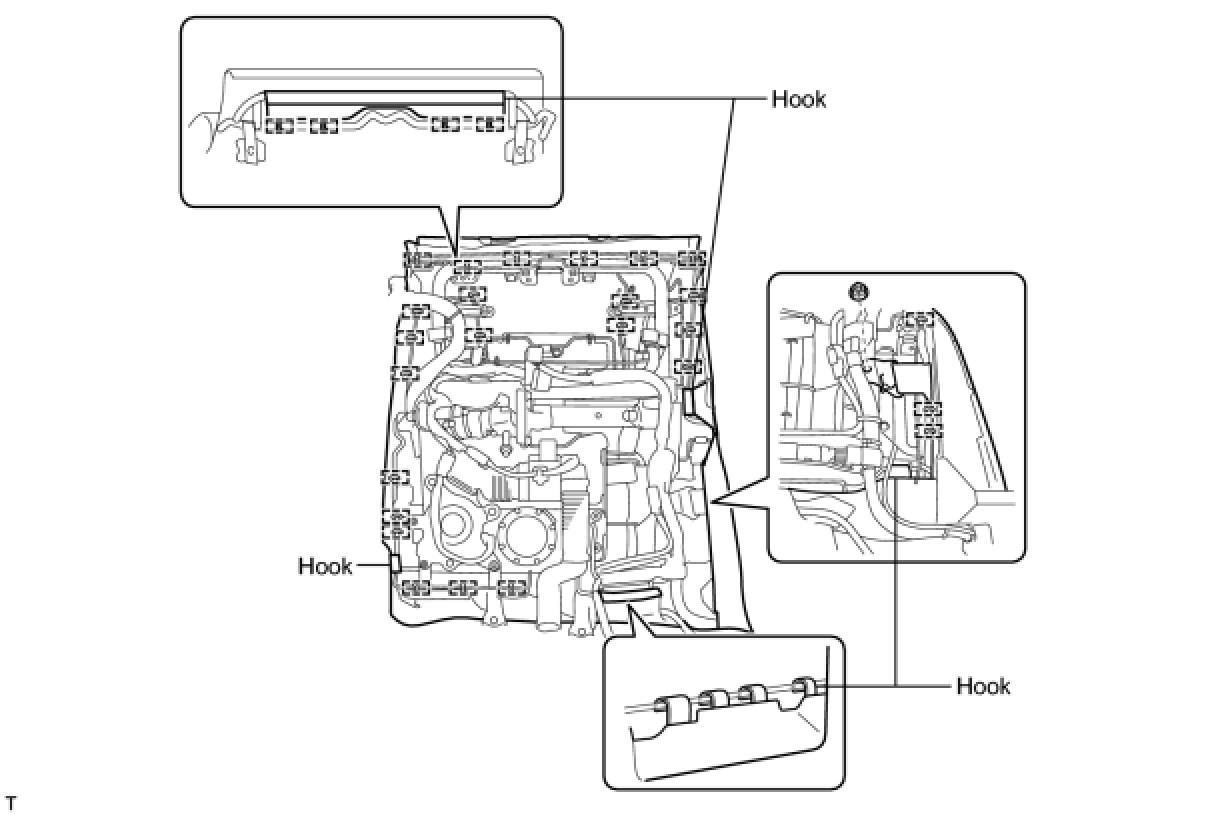

28. REMOVE REAR SEATBACK COVER WITH PAD RH
(a) Detach the hooks and remove the hog rings.









(b) Detach the rubber band of the seatback cover from the seatback spring.
(c) Remove the nut and 2 seatback cover brackets.





(d) Disconnect the connector.

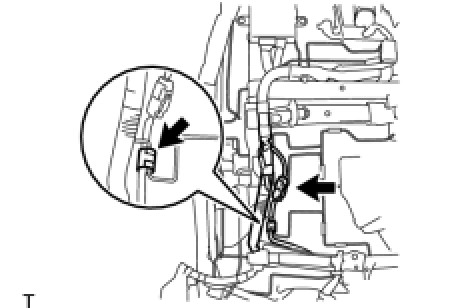

(e) Detach the clip and disconnect the wire harness.

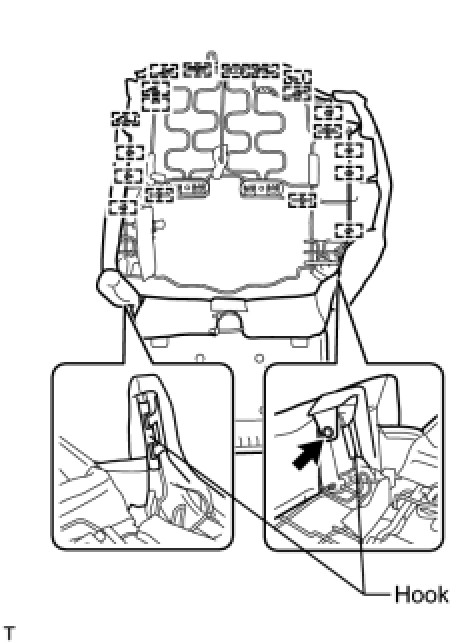

(f) Detach the 8 hooks and remove the seatback cover with pad from the seatback spring.

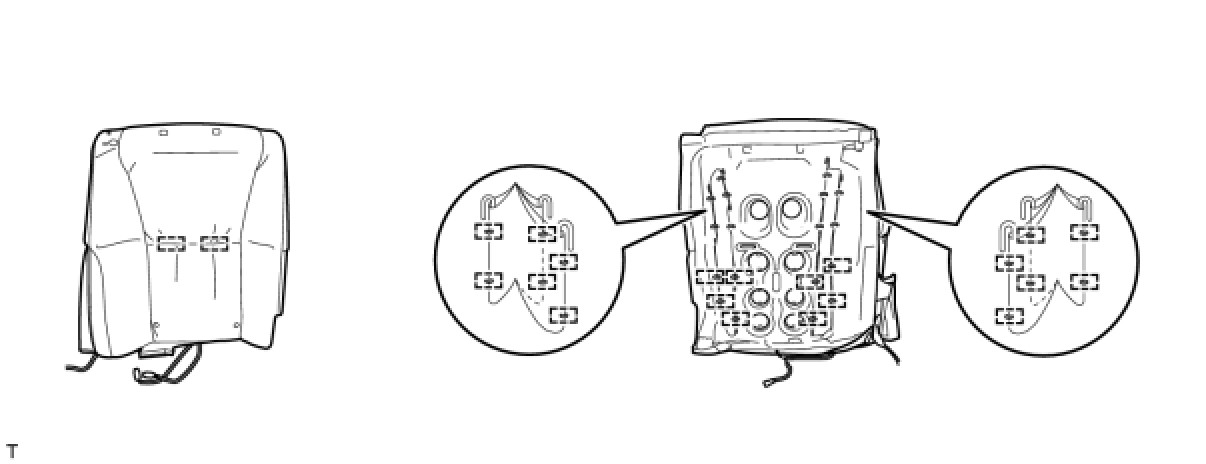

29. REMOVE REAR SEATBACK COVER SUB-ASSEMBLY RH
(a) Remove the hog rings and seatback cover from the seatback pad.





30. REMOVE REAR SEATBACK MAT RH





(a) Remove the 4 hose clamps.
(b) Detach the 6 hooks and remove the seatback mat.
31. REMOVE SEATBACK CLIMATE BLOWER SUB-ASSEMBLY RH





(a) Disconnect the 2 connectors and remove the 3 nuts.





(b) Detach the 3 hooks and remove the seatback climate blower.





32. REMOVE SEAT VIBRATOR ASSEMBLY
(a) Disconnect the connector.
(b) Remove the 4 nuts and vibrator.
33. REMOVE REAR SEAT WIRE RH
(a) Disconnect the connectors.
(b) Detach the clamps and remove the wire.
34. REMOVE REAR SEAT INNER BELT ASSEMBLY RH Removal
35. REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY RH





(a) Remove the nut and anchor bracket.
36. REMOVE SEAT CLIMATE CONTROL CONTROLLER RH





(a) Disconnect the 2 connectors and remove the 3 wire harness clamps.





(b) Disconnect the 2 connectors and remove the 2 screws.
(c) Detach the 2 claws and remove the climate control controller.





37. REMOVE SEAT CUSHION CLIMATE BLOWER SUB-ASSEMBLY RH
(a) Remove the 3 nuts and seat cushion climate blower.





38. REMOVE AIR FILTER RH
(a) Detach the 2 claws and remove the filter.
