Front Seatback Heater

SEAT: FRONT SEATBACK HEATER: INSPECTION

INSPECTION

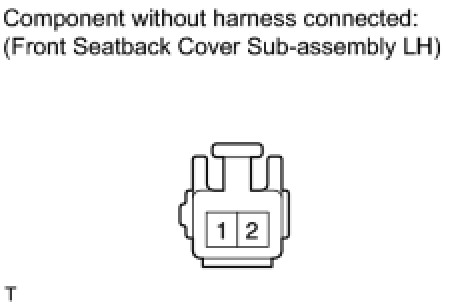

1. INSPECT FRONT SEATBACK COVER SUB-ASSEMBLY LH
(a) Check the seatback heater.
(1) Measure the resistance according to the value(s) in the table below.

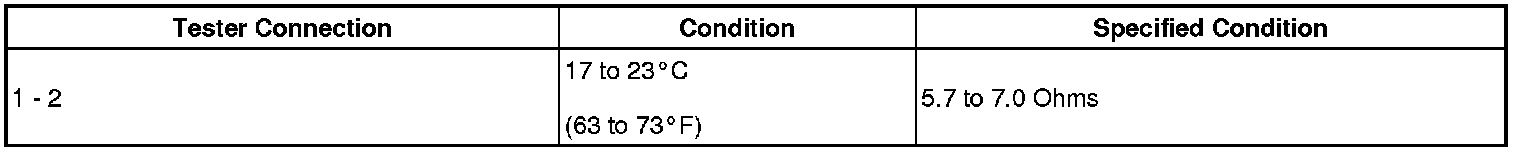

Standard resistance:






If the result is not as specified, replace the seatback cover.

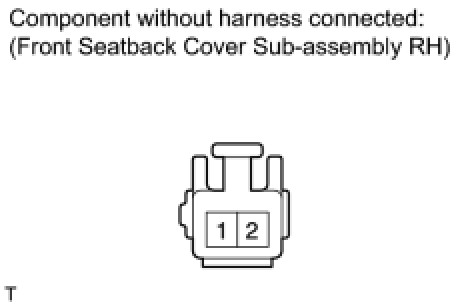

2. INSPECT FRONT SEATBACK COVER SUB-ASSEMBLY RH
(a) Check the seatback heater.
(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:






If the result is not as specified, replace the seatback cover.
