Installation

SEAT: FRONT SEATBACK HEATER: INSTALLATION

INSTALLATION

1. INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY LH Reassembly
2. INSTALL SEATBACK COVER WITH PAD LH

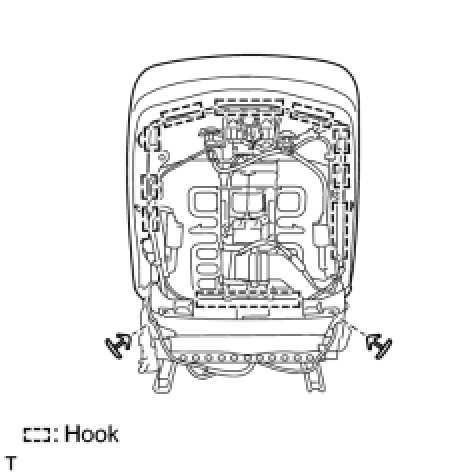

(a) Install the seatback cover (with pad) to the seatback frame and attach the hooks and install the 2 clips.





(b) W/ Climate Control Seat System:
Connect the connector.





(c) for Front Passenger Side:
(1) Attach the 2 claws and install the power seat switch.
(2) Connect the connector.





(d) Install the seatback cover bracket with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
3. INSTALL FRONT SEAT HEADREST SUPPORT LH Reassembly
4. INSTALL FRONT SEAT HEADREST ASSEMBLY LH Reassembly
5. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH Reassembly
6. INSTALL FRONT SEAT CUSHION SHIELD INNER LH Reassembly
7. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH Installation
8. INSTALL FRONT SEAT CUSHION SHIELD LH Reassembly
9. INSTALL FRONT SEAT ASSEMBLY LH
(a) Install the front seat assembly Installation.
