SEAT: REAR POWER SEAT MOTOR ASSEMBLY (for Ottoman): REMOVAL

REMOVAL
CAUTION:
Wear protective gloves. Sharp areas on the seatback spring, seat adjuster and seat cushion spring may injure your hands.
HINT:
- for Power Seat:
Before removing the rear seat, make sure to move the seat 37 mm (1.46 in.) from the rearmost position.
- for Ottoman:
Before removing the rear seat, make sure to move the seat 17 mm (0.67 in.) from the rearmost position.

1. REMOVE COWL TOP VENTILATOR LOUVER Removal
2. REMOVE REAR SEAT CUSHION ASSEMBLY LH Removal
3. REMOVE REAR SEAT CUSHION ASSEMBLY RH Removal
4. REMOVE REAR SEAT CUSHION AIRBAG ASSEMBLY RH Removal
5. REMOVE REAR SEATBACK ASSEMBLY LH Removal
6. REMOVE REAR SEAT CONSOLE BOX Removal
7. REMOVE REAR SEATBACK ASSEMBLY RH Removal

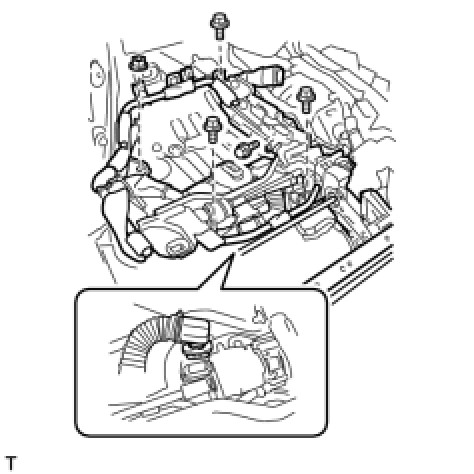

8. REMOVE REAR NO. 2 SEAT ADJUSTER ASSEMBLY
(a) Remove the 4 bolts, the nut and the seat adjuster.
NOTE:
Be careful not to damage the vehicle body.

(b) Disconnect the air duct from the vehicle body.





9. REMOVE REAR NO. 1 SEAT ADJUSTER ASSEMBLY
(a) Remove the 4 bolts, nut and seat adjuster.
NOTE:
Be careful not to damage the vehicle body.

(b) Disconnect the air duct from the vehicle body.

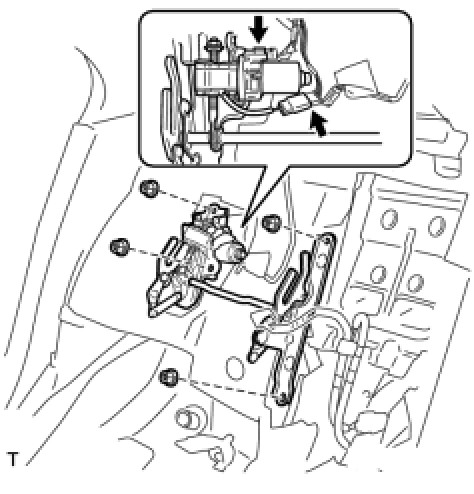

10. REMOVE REAR SEATBACK ADJUSTER ASSEMBLY RH
(a) Disconnect the 2 connectors.
(b) Remove the 4 nuts and seatback adjuster.
NOTE:
Be careful not to damage the vehicle body.

11. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY LH Disassembly
12. REMOVE REAR SEAT HEADREST ASSEMBLY LH Disassembly
13. REMOVE REAR SEAT HEADREST SUPPORT LH Disassembly
14. REMOVE POSITION CONTROL ECU LH Disassembly
15. REMOVE SEAT CLIMATE CONTROL ECU LH Disassembly
16. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH Disassembly
17. REMOVE REAR SEAT COVER CAP LH Disassembly
18. REMOVE SEATBACK COVER WITH PAD LH Disassembly
19. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER SUB-ASSEMBLY LH Disassembly
20. REMOVE REAR SEAT WIRE LH Disassembly
21. REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY LH Disassembly
22. REMOVE REAR SEAT SHOULDER BELT GUIDE ASSEMBLY RH Disassembly
23. REMOVE REAR SEAT HEADREST ASSEMBLY RH Disassembly
24. REMOVE REAR SEAT HEADREST SUPPORT RH Disassembly
25. REMOVE POSITION CONTROL ECU ASSEMBLY RH Disassembly
26. REMOVE SEAT CLIMATE CONTROL ECU RH Disassembly
27. REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH Disassembly
28. REMOVE REAR SEAT COVER CAP RH Disassembly
29. REMOVE SEATBACK COVER WITH PAD RH Disassembly
30. REMOVE REAR SEATBACK MAT RH Disassembly
31. REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER SUB-ASSEMBLY RH Disassembly
32. REMOVE SEAT VIBRATOR ASSEMBLY Disassembly
33. REMOVE REAR SEAT WIRE RH Disassembly
34. REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY RH Disassembly
