Installation

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedure listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
(a) Install the lumbar support adjuster and attach the 4 clamps.
(b) for Driver Side:
(1) Install the 2 motors with the 4 bolts.
(2) Connect the 2 connectors.
(c) for Passenger Side:
(1) Install the motor with the 2 bolts.
(2) Connect the connector.

2. INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (BACK SIDE) (W/ Climate Control Seat System)
(a) Install the climate control controller with the 2 screws.
3. INSTALL SEATBACK COVER WITH PAD

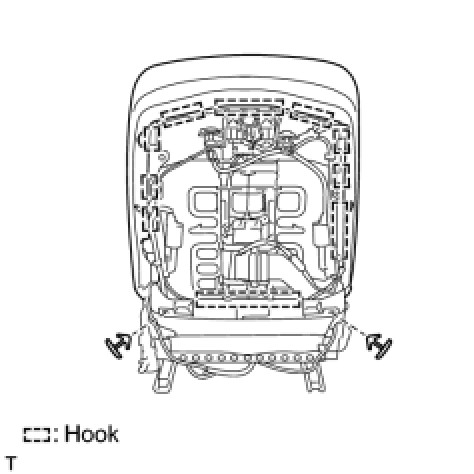

(a) Install the seatback cover (with pad) to the seatback frame and attach the hooks and install the 2 clips.

(b) W/ Climate Control Seat System:

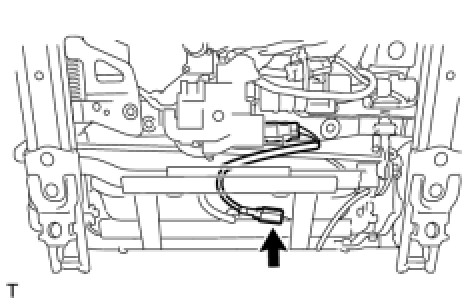

Connect the connector.

(d) Install the seatback cover bracket with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
4. INSTALL FRONT SEAT HEADREST SUPPORT Reassembly
5. INSTALL FRONT SEAT HEADREST ASSEMBLY Reassembly
6. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH Reassembly
7. INSTALL FRONT SEAT CUSHION SHIELD INNER LH Reassembly
8. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH Installation
9. INSTALL FRONT SEAT CUSHION SHIELD LH Reassembly
10. INSTALL FRONT SEAT ASSEMBLY LH
(a) Install the front seat assembly Installation.
