Reassembly

SLIDING ROOF: SLIDING ROOF HOUSING: REASSEMBLY

REASSEMBLY

1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

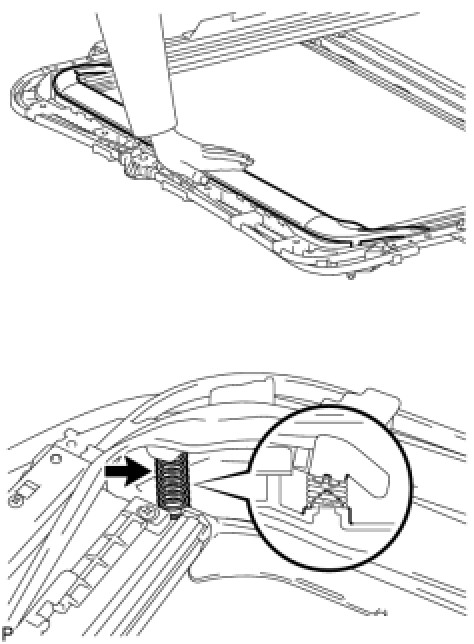

(a) Hold down the window deflector.
NOTE:
Check and be sure that the spring indicated by the arrow in the illustration is securely installed.

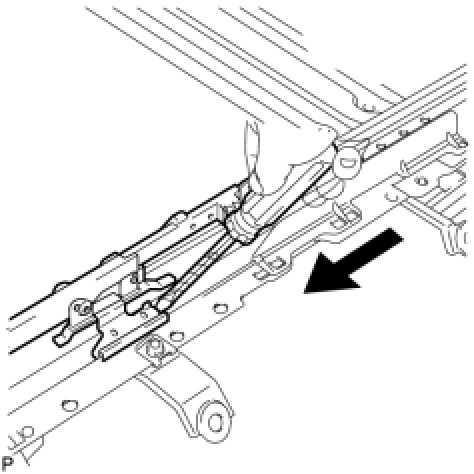

(b) Using a screwdriver, slide the drive cable in the direction indicated by the arrow in the illustration to install it.
HINT: Tape the screwdriver tip before use.





(c) Attach the 2 claws to install the drip channel.

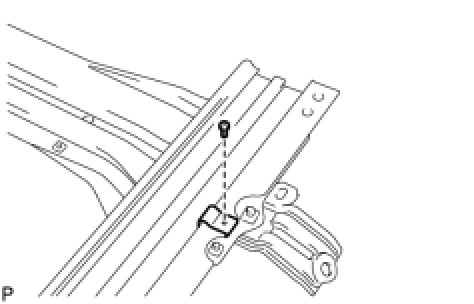

(d) Install the 2 sliding roof side stoppers with the 2 screws.





2. ADJUST SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

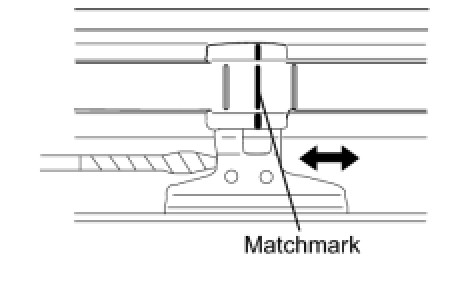

(a) Using a screwdriver, align the matchmarks by sliding the drive cable in the directions indicated by the arrow in the illustration.
HINT: Tape the screwdriver tip before use.

3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

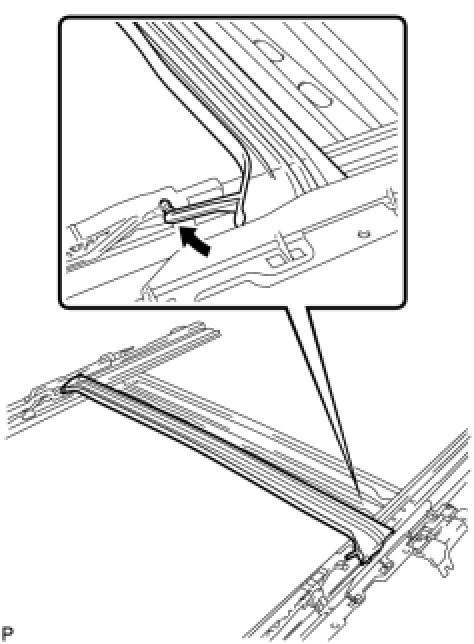

(a) Insert the sunshade trim into the sliding roof housing.





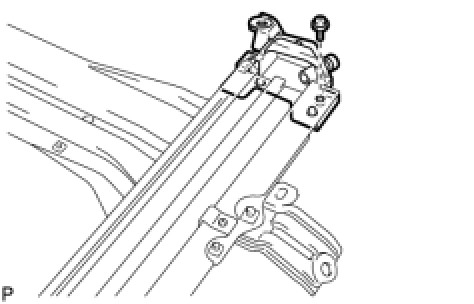

(b) Install the sliding roof piece LH and RH with the 2 screws.
4. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

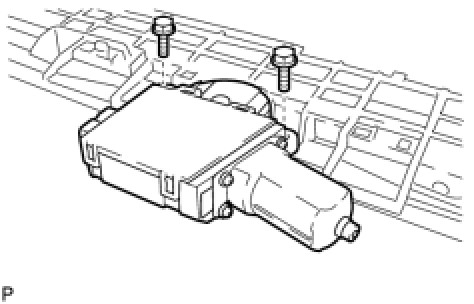

(a) Install the drive gear with the 2 bolts.
Torque: 5.4 Nm (5.5 kgf-cm, 48 in-lbf)

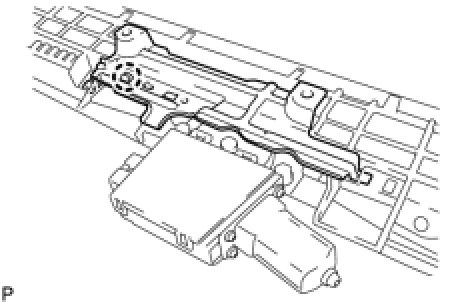

(b) Attach the bracket's claw to install the bracket.
