Entry Lock and Unlock Switch (for Front)

DOOR LOCK: ENTRY LOCK AND UNLOCK SWITCH (for Front): INSPECTION

INSPECTION

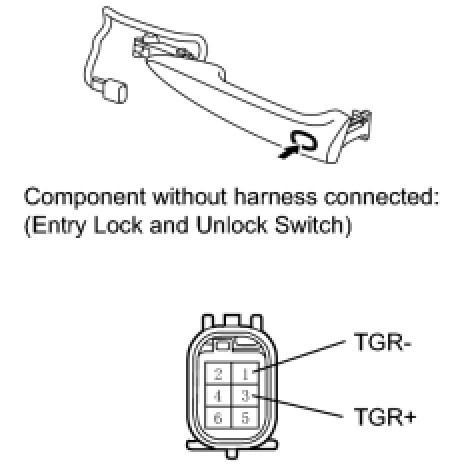

1. INSPECT ENTRY LOCK AND UNLOCK SWITCH
(a) Disconnect the connectors.
(b) Remove the outside handle.
(c) Measure the resistance according to the value(s) in the table below.

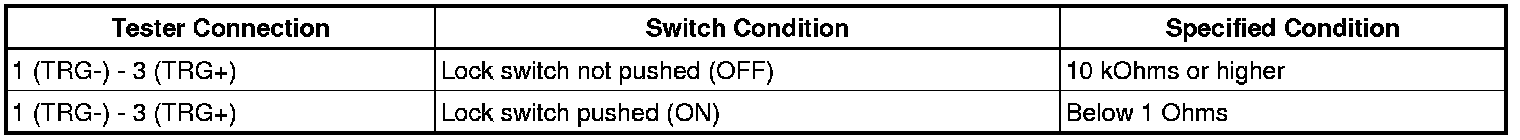

Standard resistance
