Removal

DOOR LOCK: ELECTRICAL KEY OSCILLATOR (for Front Floor): REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
4. REMOVE NO. 3 BOX PANEL Removal
5. REMOVE REAR CONSOLE PANEL UPPER Removal
6. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal
7. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY Removal
8. REMOVE CONSOLE COVER LOWER Removal
9. REMOVE CONSOLE BOX ASSEMBLY Removal
10. REMOVE NO. 1 CONSOLE BOX DUCT





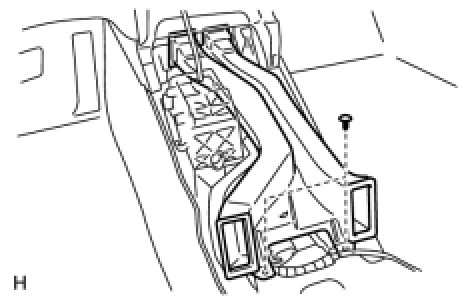

(a) Using a clip remover, remove the 2 clamps.

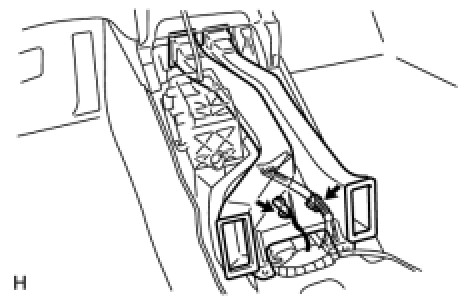

(b) Using a clip remover, remove the 2 clips and duct.





11. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR

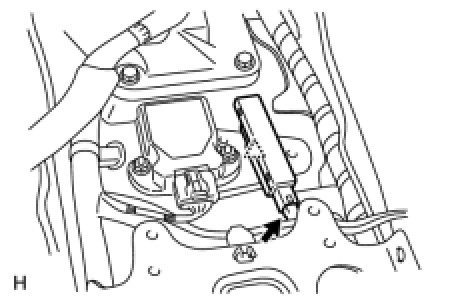

(a) Disconnect the connector.
(b) Using a clip remover, remove the clamp and electrical key.
