Disassembly

INTERIOR: ROOF HEADLINING (for Standard Body): DISASSEMBLY

DISASSEMBLY

1. REMOVE ROOF SILENCER PAD





(a) W/O Sliding Roof:
Remove the 4 roof silencer pads.





(b) W/ Sliding Roof, W/O Rear Cooler:
Remove the 4 roof silencer pads.





(c) W/ Sliding Roof, W/ Rear Cooler:
Remove the 4 roof silencer pads.





2. REMOVE NO. 1 ROOF WIRE

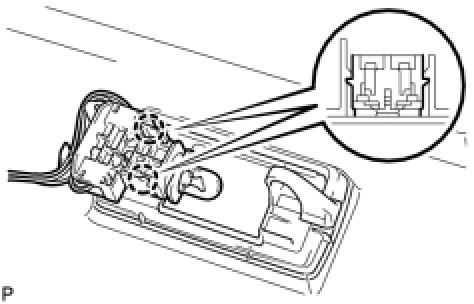

(a) Detach the 2 claws and remove the bulb holder from the vanity light.
HINT: Use the same procedure to remove the bulb holder on the other side.

(b) Remove the double-sided tape and roof wire.
