INTERIOR: REAR CONSOLE BOX (for Ottoman): INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL REAR SEAT CONSOLE ARMREST ASSEMBLY

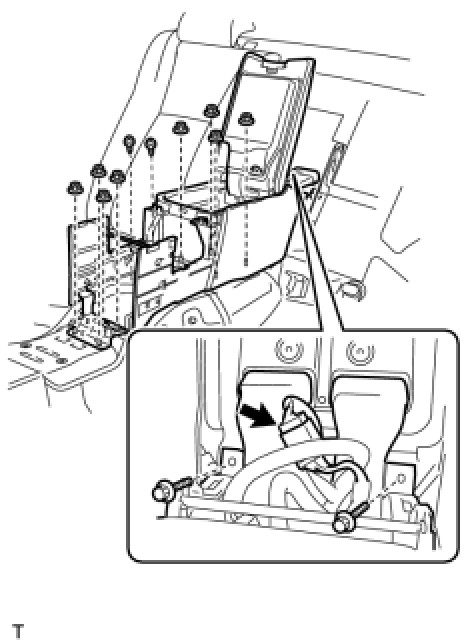

(a) Connect the connector.
(b) Install the console armrest with the 2 screws.
(c) Install the 8 nuts and 2 bolts.





(d) Install the console armrest cover.
2. INSTALL VOLTAGE INVERTER ASSEMBLY Installation
3. INSTALL REAR SEAT CONSOLE TABLE ASSEMBLY

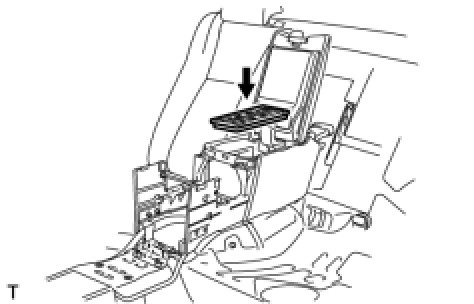

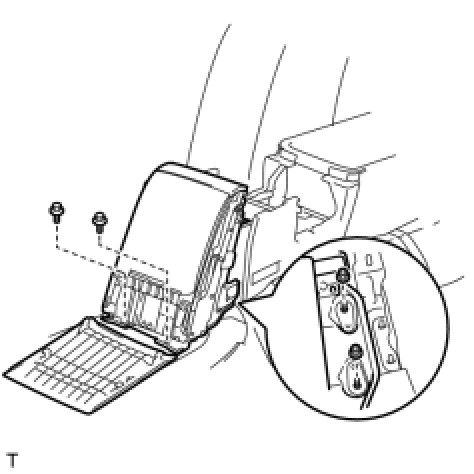

(a) Install the console table with the 2 nuts and 2 bolts.
4. INSTALL REAR SEAT CONSOLE TABLE COVER FRONT

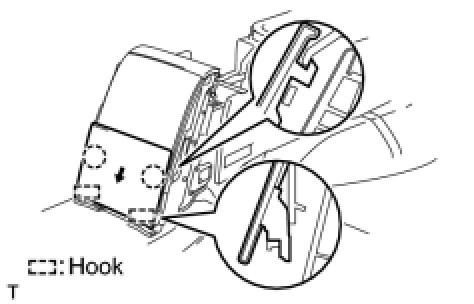

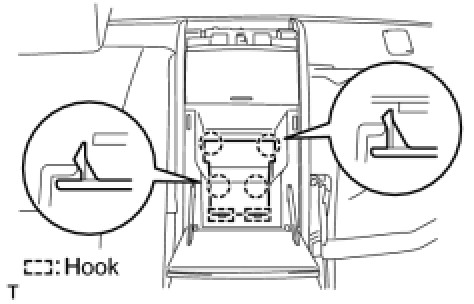

(a) Push down the table cover and attach the 2 hooks.
(b) Attach the 2 claws to install the table cover.
5. INSTALL REAR SEAT CONSOLE PANEL ASSEMBLY

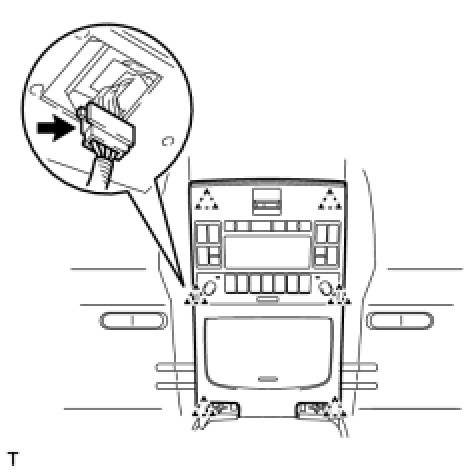

(a) Connect the connector.





(b) Attach the 6 clips to install the console panel.
6. INSTALL REAR SEAT CONSOLE ARMREST GARNISH RH

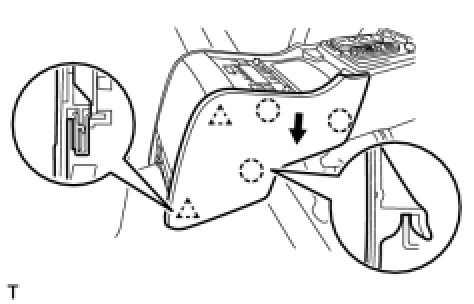

(a) While lowering the armrest garnish, attach the 3 claws and 2 clips to install it.
7. INSTALL REAR SEAT CONSOLE ARMREST GARNISH LH
HINT: Use the same procedures described for the RH side.

8. INSTALL REAR SEAT CONSOLE BOX ASSEMBLY

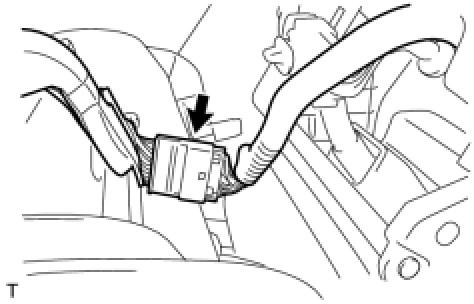

(a) Connect the connector.

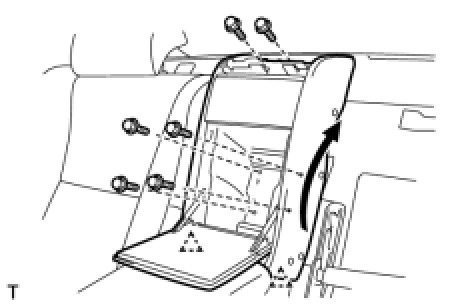

(b) Move the console box in the direction of the arrow shown in the illustration, and attach the 2 clips. Then install the console box with the 6 bolts.





(c) Attach the 2 hooks and install the rear seat console box lower cover to the console box.
(d) Attach the 4 claws.

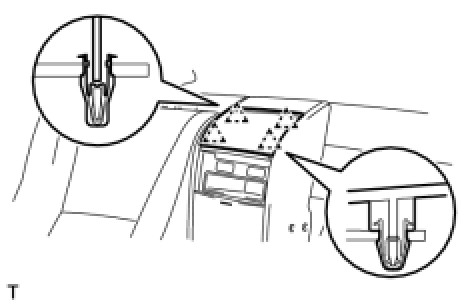

(e) Attach the 4 clips to install the rear seat console box front panel.
