INTERIOR: FRONT CONSOLE BOX: REASSEMBLY

REASSEMBLY

1. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

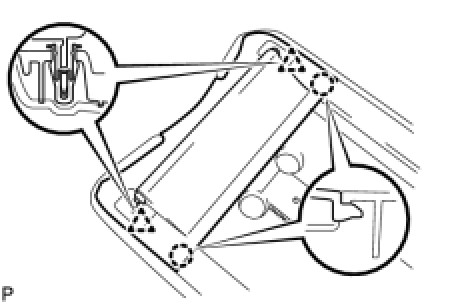

(a) Attach the 2 clips and 2 claws to install the door lock.
2. INSTALL CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY





(a) Install the 2 screws.
(b) Slide and install the door hinge with the 2 screws.

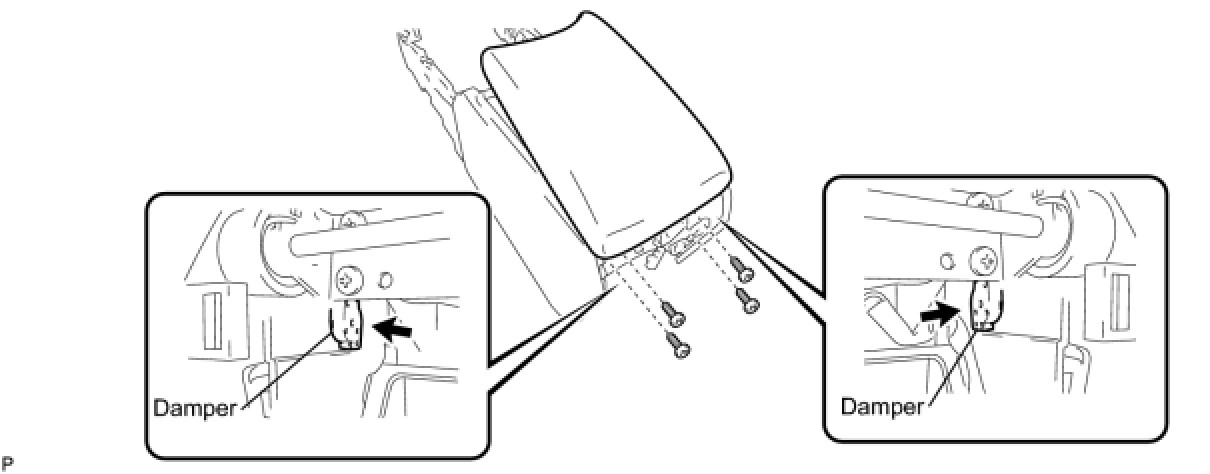

3. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
(a) Install the 4 screws.

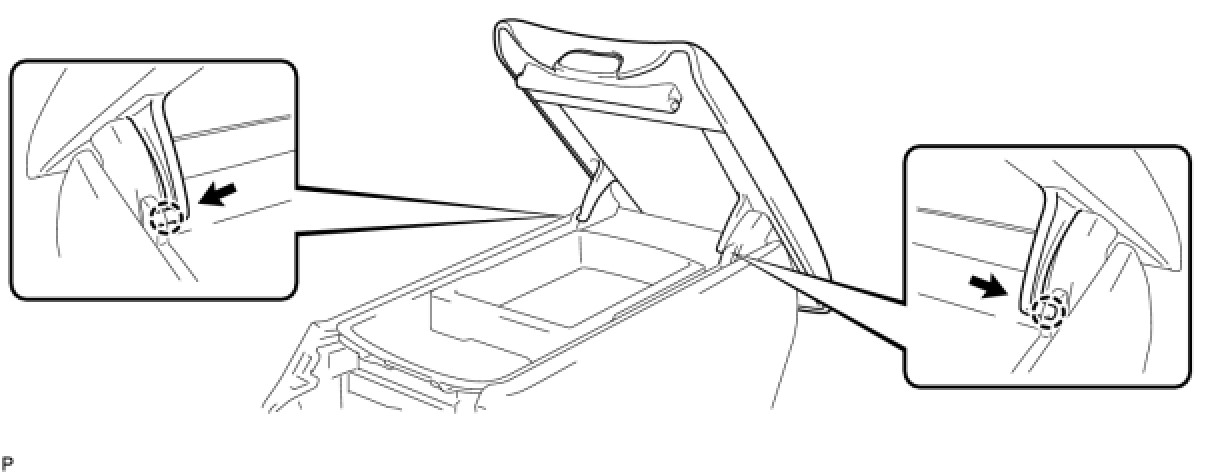

(b) Attach the 2 dampers.





(c) Attach the 2 claws to install the compartment door.





4. INSTALL CONSOLE BOX POCKET LOWER

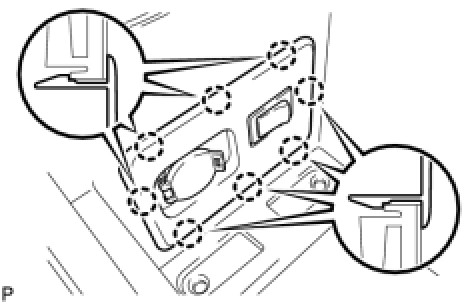

(a) Attach the 8 claws to install the box pocket.
