Installation

EXTERIOR: NAME PLATE: INSTALLATION

INSTALLATION
HINT: When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

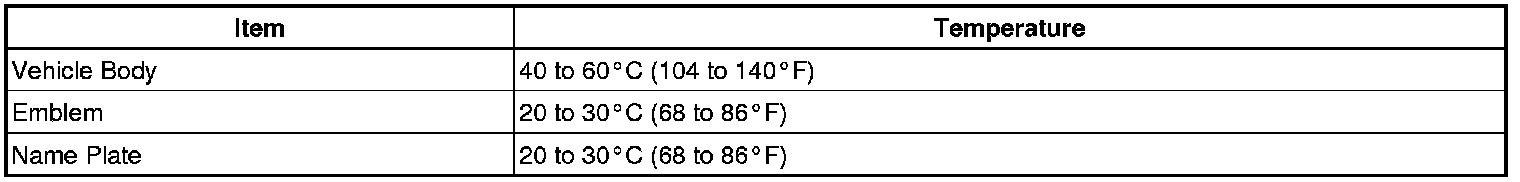

Heating temperature





NOTE:
Do not heat the vehicle body, emblem and name plate excessively.

1. INSTALL SYMBOL EMBLEM
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install the emblem.
(1) Using a heat light, heat the vehicle body and emblem.
(2) Remove the peeling paper from the face of the emblem.
NOTE:
After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the emblem.
2. INSTALL NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.





(b) Install the name plate.
(1) Using a heat light, heat the vehicle body and emblem.
(2) Remove the peeling paper from the face of the emblem.

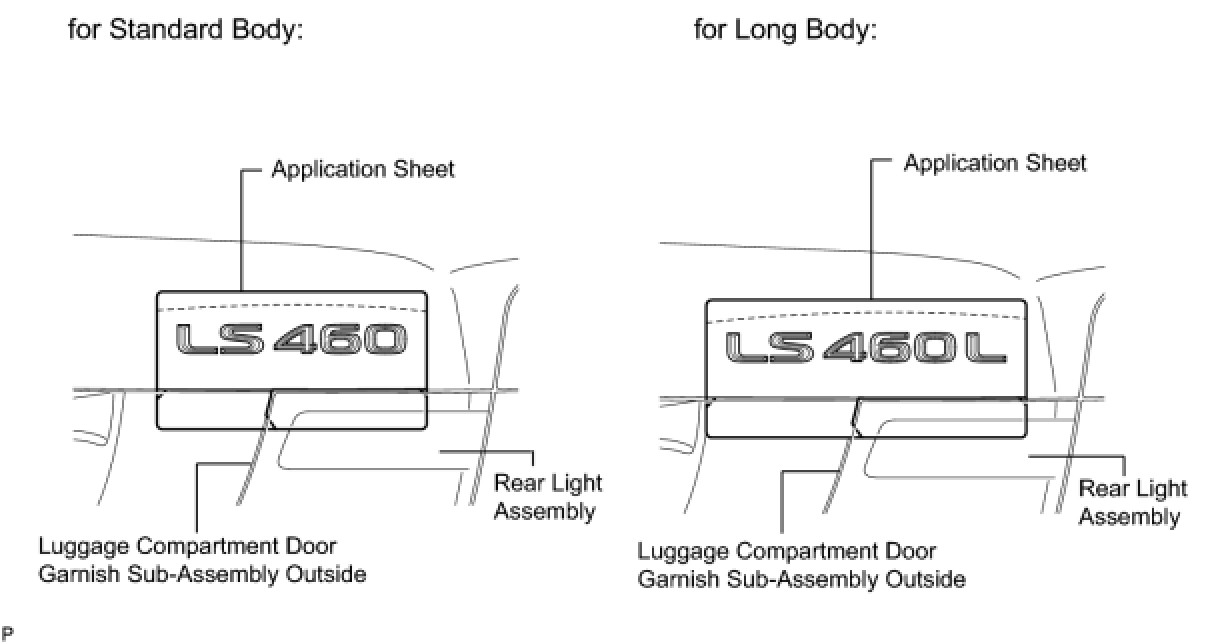

(3) Align the application sheet as shown in the illustration, and install the emblem.
(4) Remove the application sheet.
3. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Install the emblem.
(1) Using a heat light, heat the vehicle body and emblem.
(2) Remove the peeling paper from the face of the emblem.

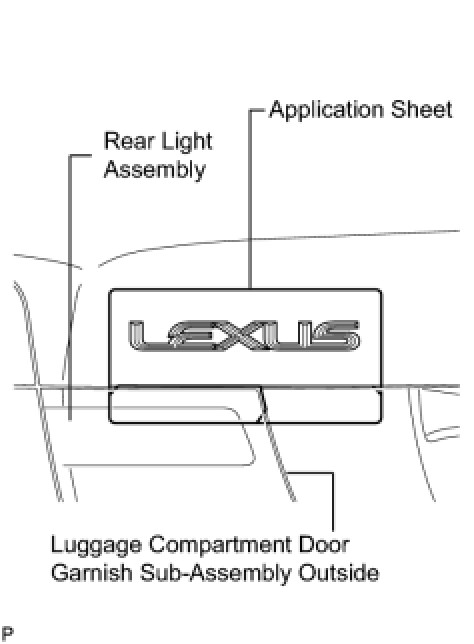

(3) Align the application sheet as shown in the illustration, and install the emblem.
(4) Remove the application sheet.
