Removal

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: REMOVAL

REMOVAL

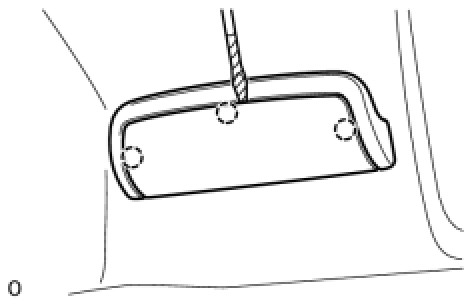

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP





(a) Using a screwdriver, detach the 3 claws.
HINT: Tape the screwdriver tip before use.





(b) Remove the 2 screws and assist grip.

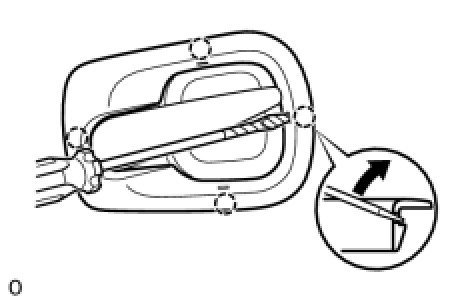

2. REMOVE DOOR INSIDE HANDLE BEZEL





(a) Using a screwdriver, detach the 4 claws and remove the bezel.
HINT: Tape the screwdriver tip before use.

3. REMOVE SWITCH BEZEL (W/ Power Trunk Lid System)





(a) Using a screwdriver, detach the 2 claws and remove the bezel.
HINT: Tape the screwdriver tip before use.

4. REMOVE NO. 2 COURTESY LIGHT ASSEMBLY





(a) Using a screwdriver, detach the 2 claws and remove the luggage compartment light.
HINT: Tape the screwdriver tip before use.

5. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH
(a) Detach the 2 claws and remove the rear combination light service cover LH.
6. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH
(a) Detach the 2 claws and remove the rear combination light service cover RH.
7. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH





(a) Using a clip remover, remove the 3 clips and cover.
8. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH





(a) Using a clip remover, remove the 3 clips and cover.
9. REMOVE BACK DOOR TRIM COVER





(a) Using a clip remover, remove the 4 clips.
(b) Remove the 10 clips and cover.

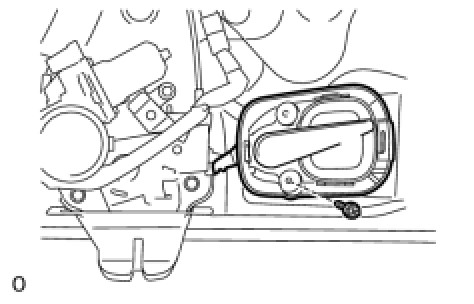

10. REMOVE LUGGAGE DOOR LOCK OPENER ASSEMBLY





(a) Remove the screw and door lock opener.

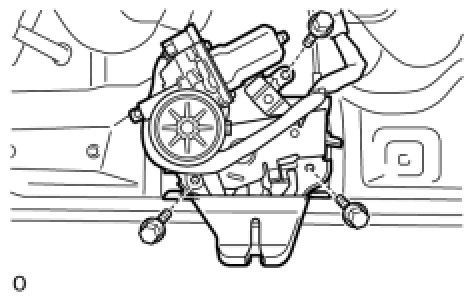

11. REMOVE LUGGAGE DOOR CLOSER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 3 bolts and luggage door closer.
12. REMOVE LUGGAGE COMPARTMENT LOCK CYLINDER





(a) Disconnect the connector.
(b) Remove the 2 nuts and lock cylinder.
13. REMOVE LUGGAGE COMPARTMENT DOOR CLOSER SWITCH (W/ Power Trunk Lid System)





(a) Disconnect the connector.
(b) Remove the 2 screws and door closer switch.
14. REMOVE TELEVISION CAMERA ASSEMBLY (W/ Rear View Monitor)





(a) Disconnect the connector.
(b) Remove the 2 nuts and television camera.
15. REMOVE REAR LIGHT ASSEMBLY LH Removal
16. REMOVE REAR LIGHT ASSEMBLY RH Removal
17. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE

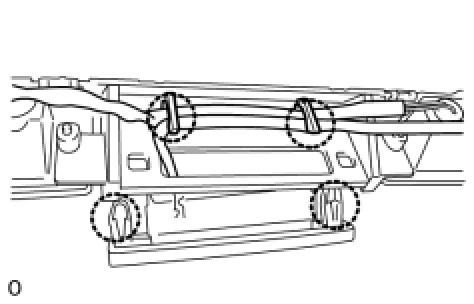

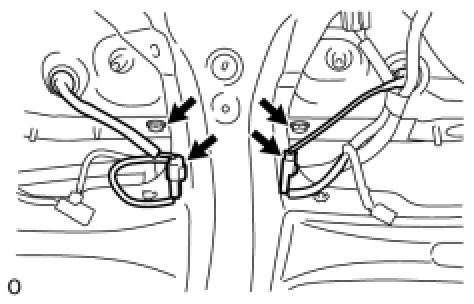

18. REMOVE BACK DOOR GARNISH RETAINER SUB-ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 2 bolts.
(c) Remove the 2 clips and back door garnish.

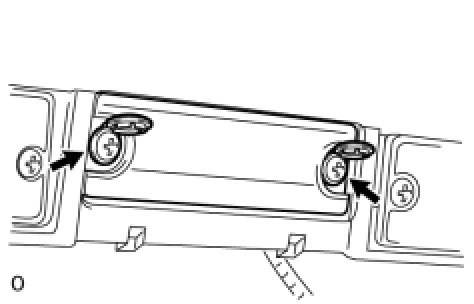

19. REMOVE LICENSE PLATE LIGHT ASSEMBLY





(a) Remove the 2 screws and license plate light assembly.
20. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY





(a) Remove the 2 screws and opening switch.
