Fuel Door Release Actuator: Testing and Inspection

ENGINE HOOD / DOOR: FUEL LID OPENER MOTOR ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT FUEL FILLER OPENING LID LOCK SUB-ASSEMBLY





(a) Check the shaft stroke.

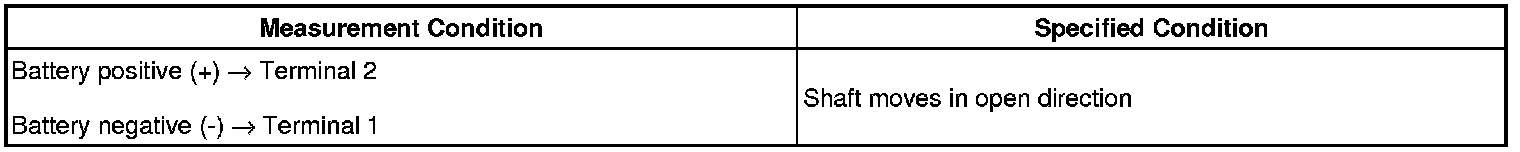

(1) Apply battery voltage to the lock control and check that the lock operates in the open direction.
OK:






If the result is not as specified, replace the lock sub-assembly.

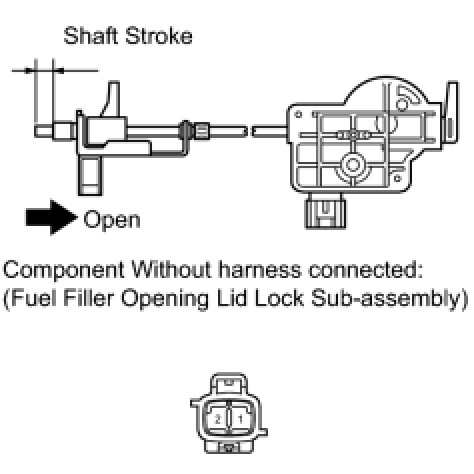

(2) Check the shaft stroke.
Standard:
10.6 mm (0.417 in.) or more
