Removal

ENGINE HOOD / DOOR: FUEL LID OPENER MOTOR ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal
2. REMOVE ROPE HOOK Removal
3. REMOVE ROPE HOOK ASSEMBLY Removal
4. REMOVE DECK TRIM SIDE BOARD LH Removal
5. REMOVE DECK TRIM SIDE BOARD RH Removal
6. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal
7. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (W/O Rear Cooler) Removal
8. REMOVE NO. 1 COOLER COVER (W/ Rear Cooler) Removal
9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal
10. REMOVE REAR FLOOR FINISH PLATE Removal
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH Removal

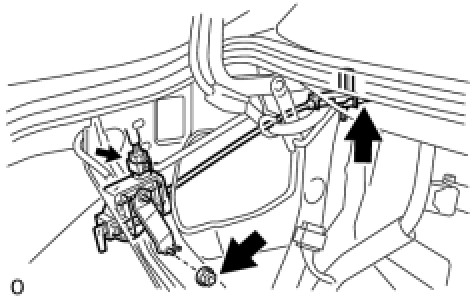

12. REMOVE FUEL FILLER OPENING LID LOCK SUB-ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 2 nuts and fuel filler opening lid lock.
