Reassembly

EXTERIOR: REAR BUMPER: REASSEMBLY

REASSEMBLY

1. INSTALL NO. 1 ULTRASONIC SENSOR (W/ Intuitive Parking Assist System)
(a) Install the No. 1 ultrasonic sensor Installation.
2. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (W/ Intuitive Parking Assist System)
(a) Install the No. 1 ultrasonic sensor retainer Installation.
3. INSTALL NO. 3 LUGGAGE ROOM WIRE (W/ Intuitive Parking Assist System) Installation





4. INSTALL REAR BUMPER EXTENSION LH
(a) Install the bumper extension with the 4 bolts.
5. INSTALL REAR BUMPER EXTENSION RH
HINT: Use the same procedures described for the LH side.





6. INSTALL REAR BUMPER SIDE RETAINER LH
(a) Install the retainer with the 2 bolts.
7. INSTALL REAR BUMPER SIDE RETAINER RH
HINT: Use the same procedures described for the LH side.





8. INSTALL REAR BUMPER PIECE LH
(a) Attach the 2 claws to install the bumper piece.
HINT: Attach the claw on the outer side first.

9. INSTALL REAR BUMPER PIECE RH
HINT: Use the same procedures described for the LH side.

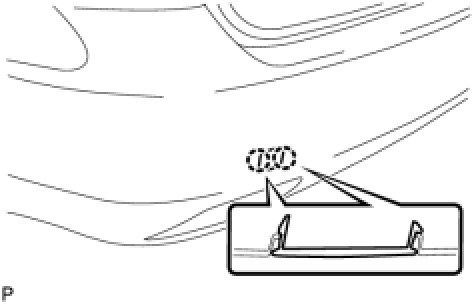

10. INSTALL REAR BUMPER PROTECTOR
(a) Install the 2 new bumper protectors.
