Illumination for Panel Switch does not Come on with Tail Switch ON

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/O Multi-display): Illumination for Panel Switch does not Come on with Tail Switch ON

Illumination for Panel Switch does not Come on with Tail Switch ON

INSPECTION PROCEDURE

PROCEDURE

1. INSPECT NIGHTTIME ILLUMINATION
(a) Turn on the light control switch and check the nighttime illumination of the vehicle interior.

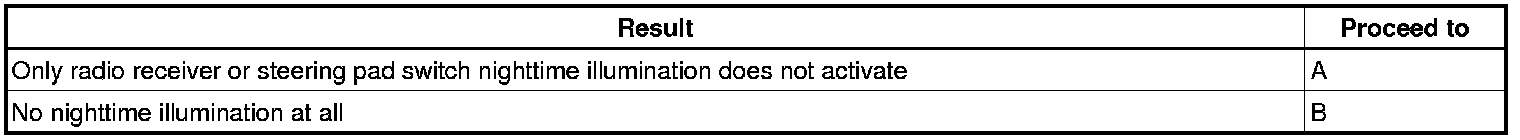

Result





B -- GO TO METER / GAUGE SYSTEM
A -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
