Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/O Multi-display): Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

Sound Signal Circuit between Radio Receiver and Stereo Component Amplifier

DESCRIPTION

The circuit sends a sound signal from the radio receiver to the stereo component amplifier.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)




(a) Disconnect the L51 receiver connector.
(b) Disconnect the R34 amplifier connector.

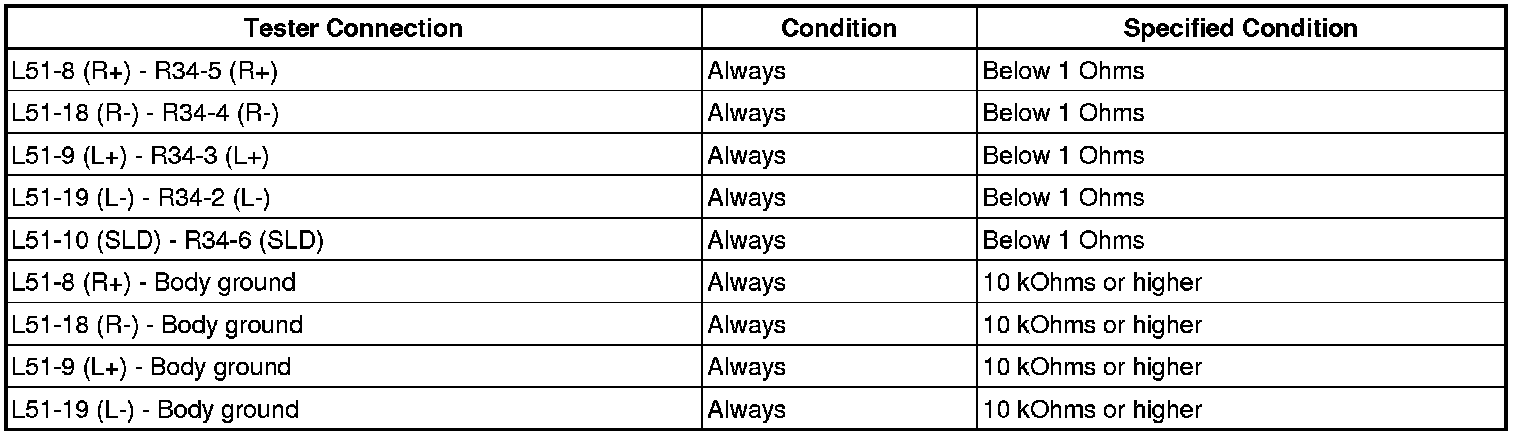

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
