Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/ Multi-display): Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter

Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter

DESCRIPTION

The stereo component amplifier performs switch operation control during driving by receiving a vehicle speed signal from the combination meter.

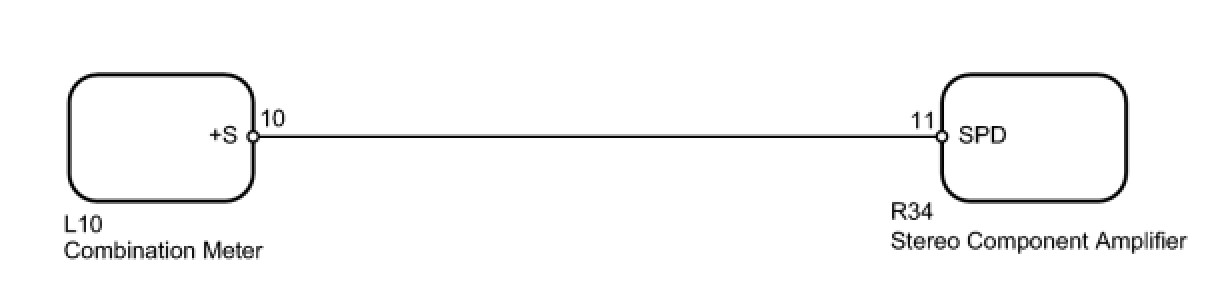

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK OPERATION OF SPEEDOMETER
(a) Drive the vehicle and check if the function of the speedometer in the combination meter is normal.
OK:
Actual vehicle speed and the speed indicated on the speedometer are the same.
HINT: The vehicle speed sensor is functioning normally when the indication on the speedometer is normal.

NG -- GO TO METER / GAUGE SYSTEM
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER - COMBINATION METER)

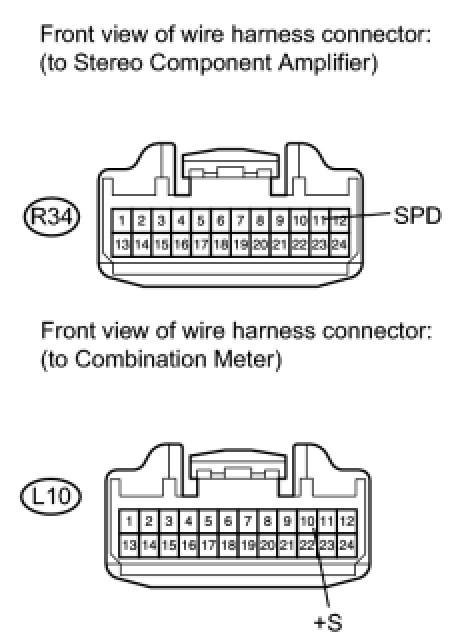

(a) Disconnect the R34 display connector.
(b) Disconnect the L10 meter connector.

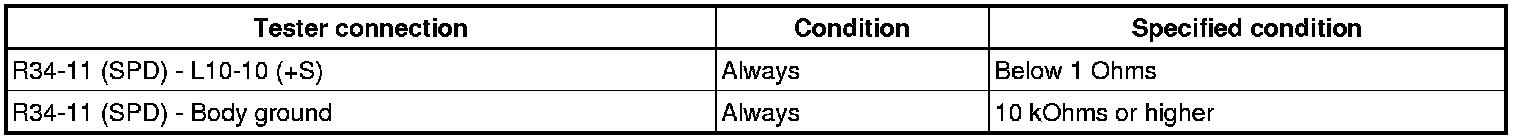

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
