Multi-display Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (W/ Multi-display): Multi-display Power Source Circuit

Multi-display Power Source Circuit

DESCRIPTION

The circuit provides power to the multi-display.

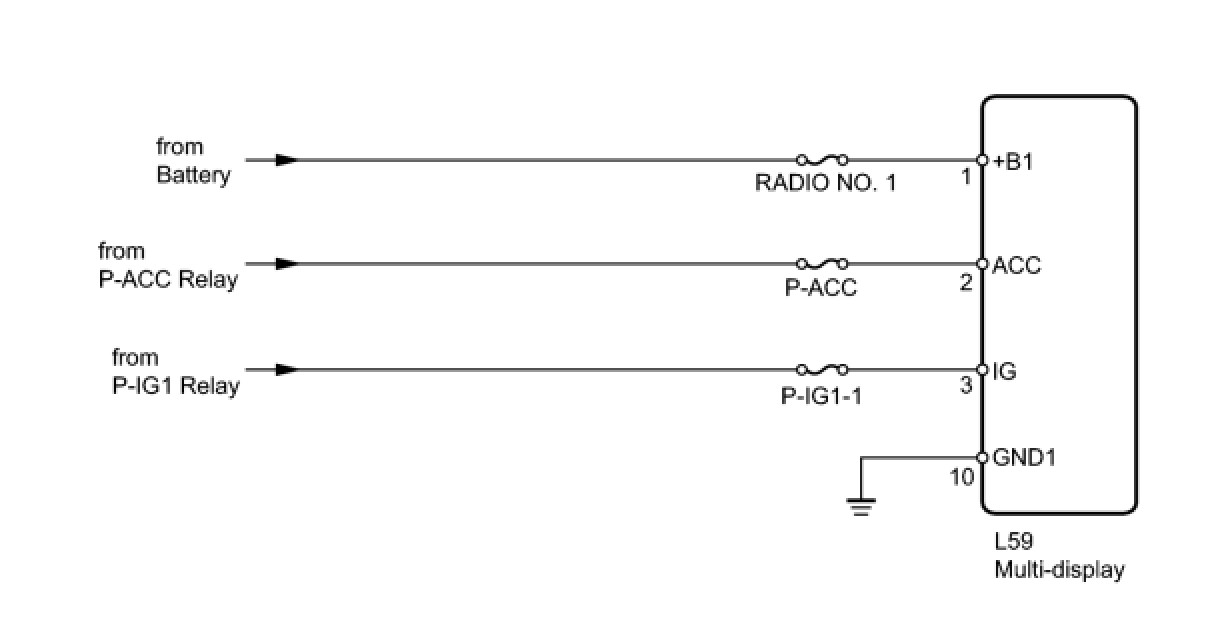

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (RADIO NO. 1, P-ACC. P-IG-1)
(a) Disconnect the RADIO NO. 1, P-ACC and P-IG-1 fuses from the passenger side junction block.

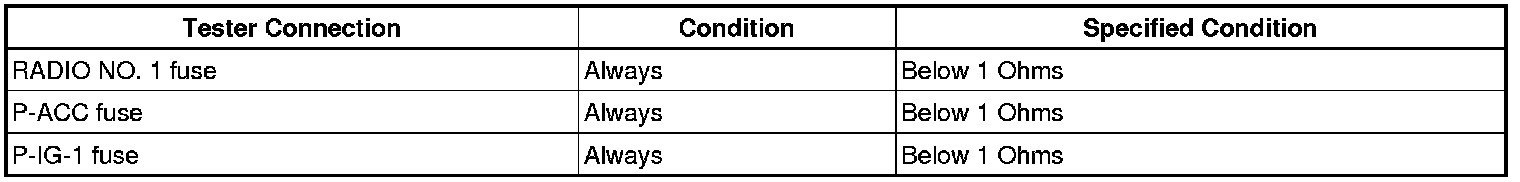

(b) Measure the resistance of the fuses.
Standard resistance:






NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - BATTERY AND BODY GROUND)

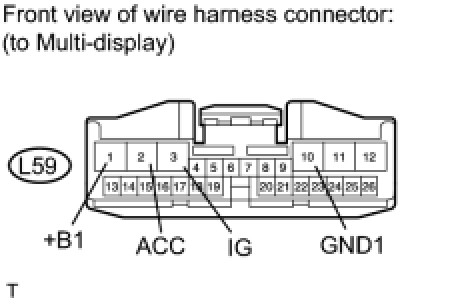

(a) Disconnect the L59 display connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
