Rear Package Tray Speaker

AUDIO / VISUAL: REAR PACKAGE TRAY SPEAKER: INSPECTION

INSPECTION





1. INSPECT STEREO COMPONENT SPEAKER ASSEMBLY

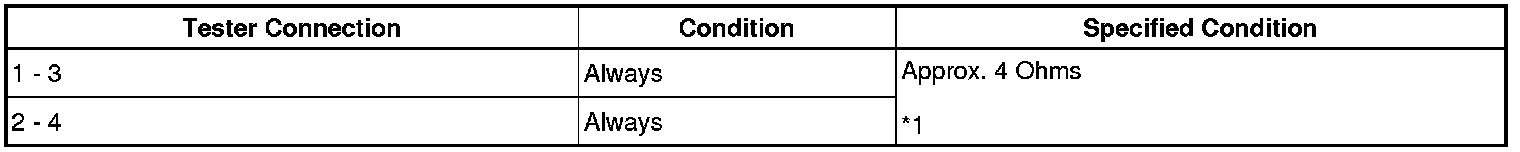

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the speaker assembly.





2. INSPECT STEREO COMPONENT SPEAKER ASSEMBLY (for 19 Speakers)
(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the speaker assembly.
