Rear Door Speaker (for Long Body)

AUDIO / VISUAL: REAR DOOR SPEAKER (for Long Body): INSPECTION

INSPECTION

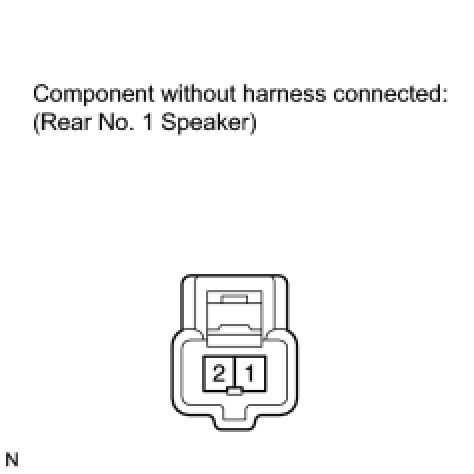

1. INSPECT REAR NO. 1 SPEAKER ASSEMBLY

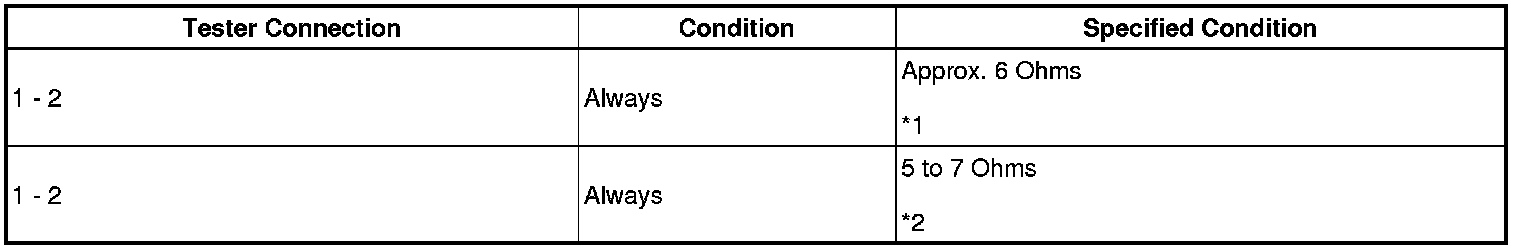

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT:
- *1: for Standard models.
- *2: for 19 speakers models.
If the result is not as specified, replace the speaker assembly.

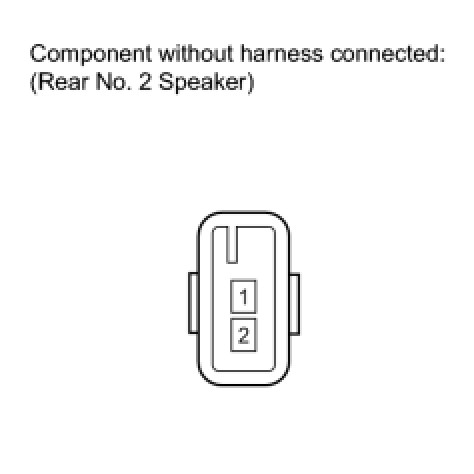

2. INSPECT REAR NO. 2 SPEAKER ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the speaker assembly.
3. INSPECT REAR NO. 3 SPEAKER ASSEMBLY
(a) Check that the malfunction disappears when the speaker is replaced with a normal one.
OK:
Malfunction disappears.
HINT:
- Connect all the connectors to the rear No. 3 speakers.
- When there is a possibility that either the right or left rear speaker is defective, inspect by interchanging the right one with the left one.
- Perform the inspection above on both LH and RH sides.
