Instrument Panel Speaker

AUDIO / VISUAL: INSTRUMENT PANEL SPEAKER: INSPECTION

INSPECTION

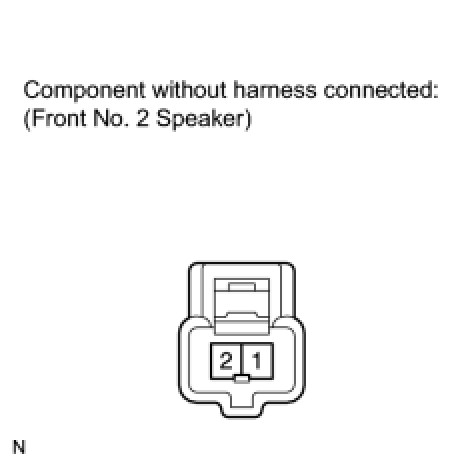

1. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

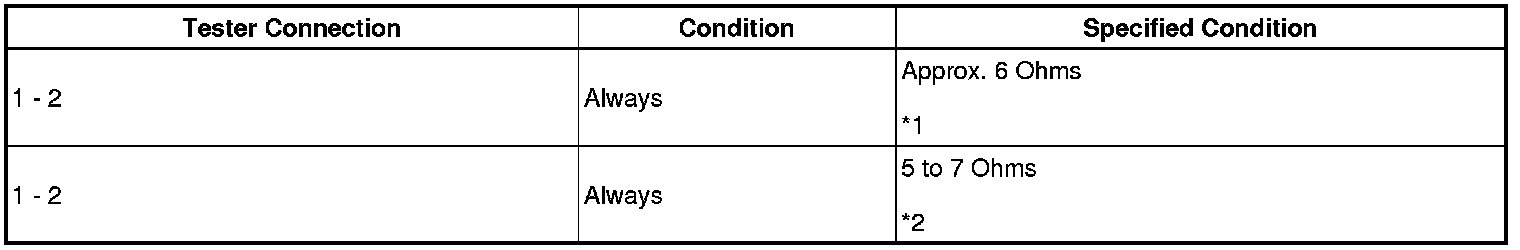

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT:
- *1: for Standard models.
- *2: for 19 speakers models.
If the result is not as specified, replace the speaker assembly.





2. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT:
- *1: for standard models.
- *2: for 19 speakers models.
If the result is not as specified, replace the speaker assembly.
