Front Door Speaker

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSPECTION

INSPECTION

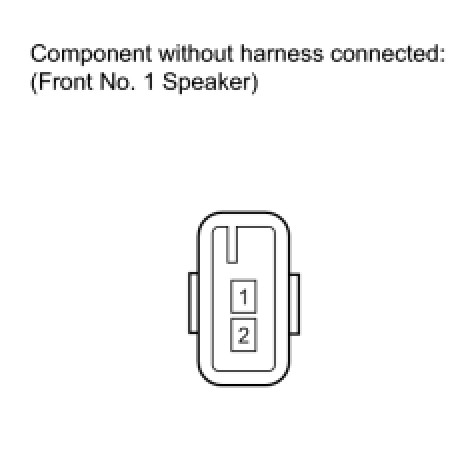

1. INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

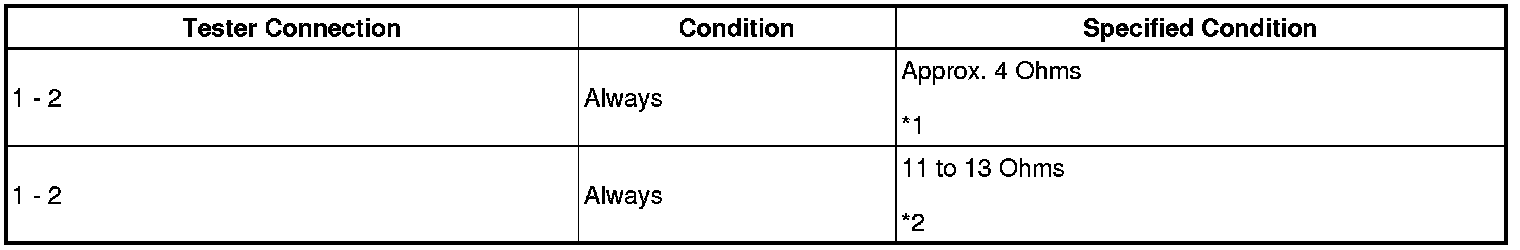

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT:
- *1: for Standard models
- *2: for 19 speakers models
