Removal

AUDIO / VISUAL: REAR DOOR SPEAKER (for Standard Body): REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH [1][2]Removal
4. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY [1][2]Removal
5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY [1][2]Removal
6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY (W/ Rear Door Sunshade) [1][2]Removal
7. REMOVE REAR NO. 1 SPEAKER ASSEMBLY
(a) Disconnect the speaker connector.
(b) Remove the 2 screws.

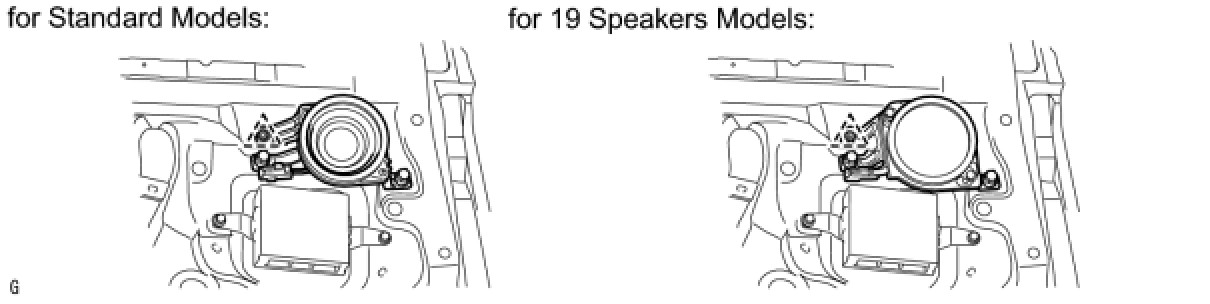

(c) Detach the clip and remove the speaker.
NOTE:
Do not touch the cone part of the speaker.









8. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 19 Speakers)
(a) Disconnect the speaker connector.

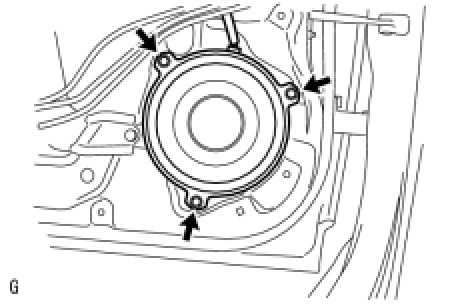

(b) Remove the 3 screws.
NOTE:
Do not touch the cone part of the speaker.





9. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (for 19 Speakers)
(a) Disconnect the connector.

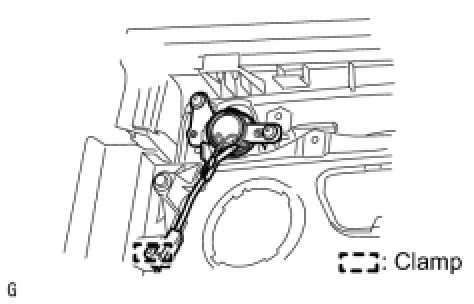

(b) Detach the clamp, and remove the 2 screws and speaker.
NOTE:
Do not touch the cone part of the speaker.
