AUDIO / VISUAL: PILLAR SPEAKER (for Quarter): INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

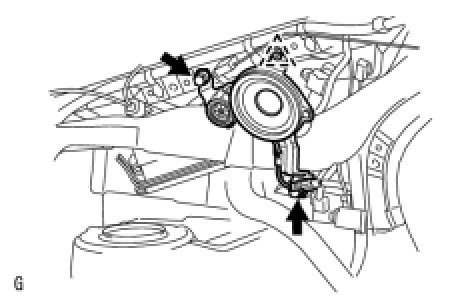

1. INSTALL REAR HEADER SPEAKER ASSEMBLY (for 19 Speakers)
(a) Connect the speaker connector.
(b) Install the speaker and attach the clip.
(c) Install the bolt.
NOTE:
Do not touch the cone part of the speaker.

2. INSTALL ROOF SIDE GARNISH INNER LH Installation
3. INSTALL REAR SEAT SIDE GARNISH LH Installation
4. INSTALL REAR SEAT ASSEMBLY
(a) for Power Seat:
(1) Install the rear seat Installation.
(b) for Ottoman:
(1) Install the rear seat Installation.
(c) for Fixed Seat:
(1) Install the rear seat Installation.
5. INSTALL REAR DOOR SCUFF PLATE LH
(a) for Standard Body:
(1) Install the rear door scuff plate LH Installation.
(b) for Long Body:
(1) Install the rear door scuff plate LH Installation.
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
8. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
