Installation

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
(a) Connect the connector.
(b) Temporarily install the speaker by attaching the claws of the speaker to the door panel.
(c) Install the speaker with the 3 screws.
NOTE:
Do not touch the cone part of the speaker.

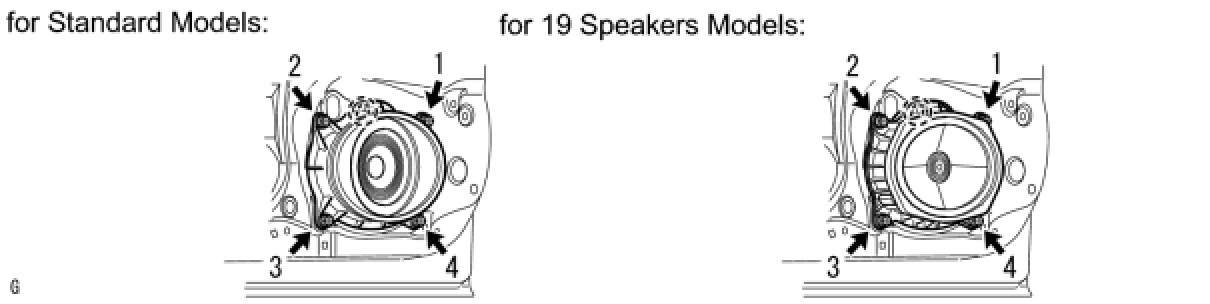

HINT: Install the screws in the order shown in the illustration.





2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH [1][2]Installation
3. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY [1][2]Installation
4. INSTALL DOOR INSIDE HANDLE BEZEL [1][2]Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
