AUDIO / VISUAL: HARD DISK DRIVE: INSTALLATION

INSTALLATION

1. INSTALL DISC PLAYER DISC

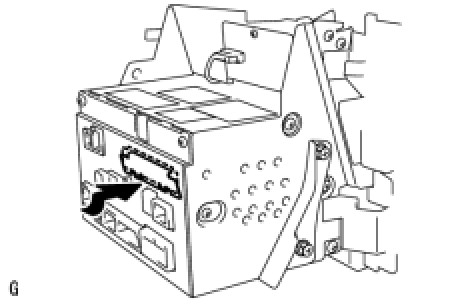

(a) Push the disc player disc in the direction of the arrow shown in the illustration to install it.

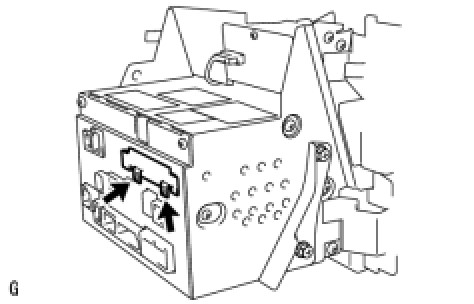

(b) Install the disc player disc in the direction of the arrow shown in the illustration.





(c) Install the 2 screws.
2. INSTALL DISPLAY AND NAVIGATION ASSEMBLY
(a) Install the display and navigation Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
