Removal

AUDIO / VISUAL: SATELLITE RADIO TUNER: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Removal
4. REMOVE ROPE HOOK ASSEMBLY Removal
5. REMOVE ROPE HOOK Removal
6. REMOVE DECK TRIM SIDE BOARD RH Removal
7. REMOVE REAR FLOOR FINISH PLATE Removal
8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Removal
9. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (W/O Rear Cooler) Removal
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT Removal
11. REMOVE NO. 1 COOLER COVER (W/ Rear Cooler) Removal
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Removal





13. REMOVE SATELLITE RADIO TUNER ASSEMBLY WITH BRACKET
(a) Disconnect the connectors.
(b) Remove the 3 nuts and tuner with bracket.





14. REMOVE NO. 1 SATELLITE RADIO TUNER BRACKET

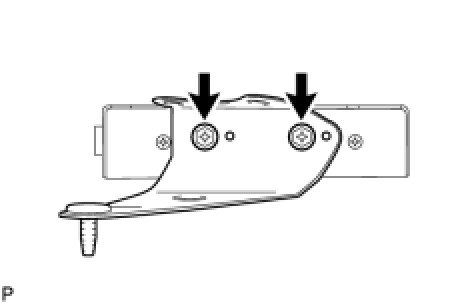

(a) Remove the 2 bolts and bracket.





15. REMOVE NO. 2 SATELLITE RADIO TUNER BRACKET

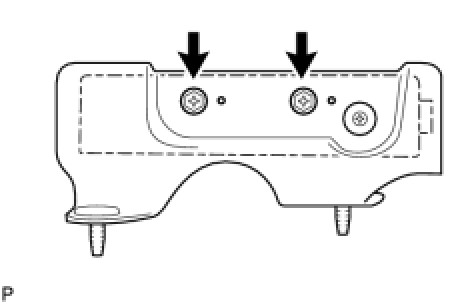

(a) Remove the 2 bolts and bracket.
