Removal

AUDIO / VISUAL: RADIO RECEIVER: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
6. REMOVE NO. 3 BOX PANEL Removal
7. REMOVE REAR CONSOLE PANEL UPPER Removal
8. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER Removal
9. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

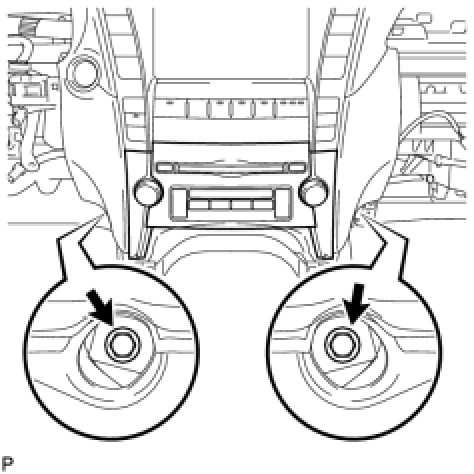

(a) Remove the 2 bolts.

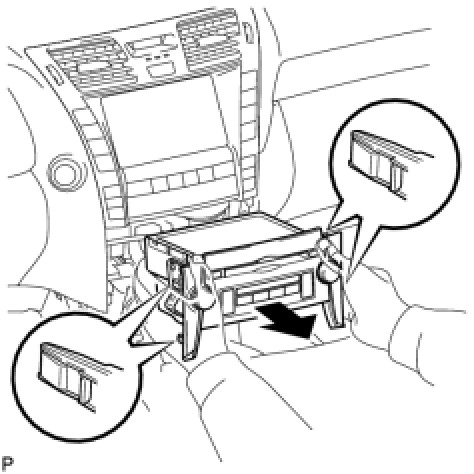

(b) Pull the radio receiver to detach the 4 clips on the backside of the radio receiver.
(c) Disconnect the connectors and remove the radio receiver.





10. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
(a) Detach the 5 clips and remove the panel.

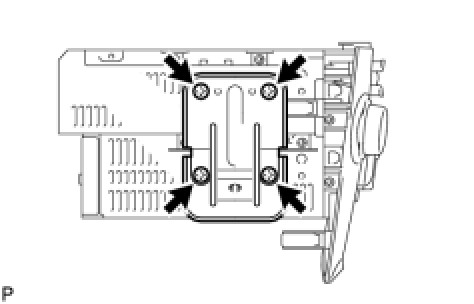

11. REMOVE NO. 2 RADIO BRACKET
(a) Remove the 4 bolts and bracket.





12. REMOVE NO. 1 RADIO BRACKET
(a) Remove the 4 bolts and bracket.
