AUDIO / VISUAL: RADIO RECEIVER: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.





1. INSTALL NO. 2 RADIO BRACKET
(a) Install the bracket with the 4 bolts.





2. INSTALL NO. 1 RADIO BRACKET
(a) Install the bracket with the 4 bolts.





3. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
(a) Attach the 5 clips to install the panel.
4. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
(a) Connect the connectors.

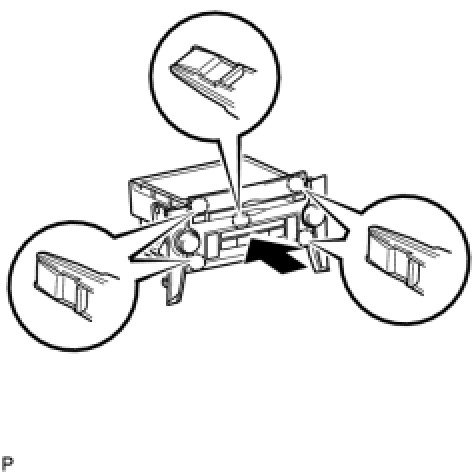

(b) Insert the radio receiver and attach the 4 clips on its backside.
NOTE:
When inserting the radio receiver, do not press the knobs on it.





(c) Install the radio receiver with the 2 bolts.
5. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER Installation
6. INSTALL REAR CONSOLE PANEL UPPER Installation
7. INSTALL NO. 3 BOX PANEL Installation
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
13. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
