AUDIO / VISUAL: AUDIO AND REAR AIR CONDITIONER CONTROL SWITCH (for Ottoman): INSTALLATION

INSTALLATION





1. INSTALL REAR POWER SEAT MODULE SWITCH ASSEMBLY

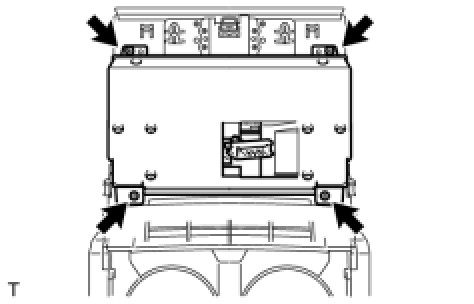

(a) Install the rear switch with the 4 screws.
2. INSTALL REAR SEAT CONSOLE PANEL ASSEMBLY Installation
3. INSTALL REAR SEAT CONSOLE ARMREST GARNISH RH Installation
4. INSTALL REAR SEAT CONSOLE ARMREST GARNISH LH Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
