AUDIO / VISUAL: DISC PLAYER (for Ottoman): REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR SEAT CONSOLE BOX ASSEMBLY Removal
4. REMOVE DISC PLAYER CONTROLLER WITH BRACKET

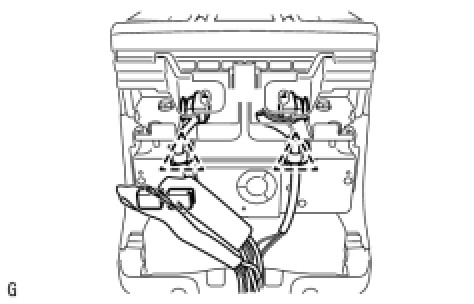

(a) Disconnect all the connectors and remove the clips.





(b) Remove the 4 bolts and disc player.





5. REMOVE NO. 1 DISC PLAYER BRACKET

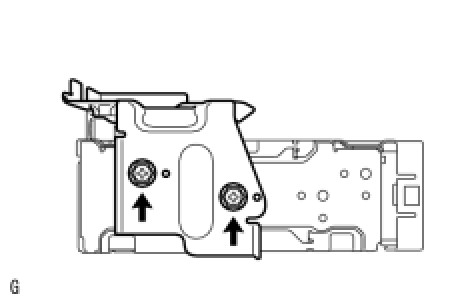

(a) Remove the 2 bolts and bracket.





6. REMOVE NO. 2 DISC PLAYER BRACKET

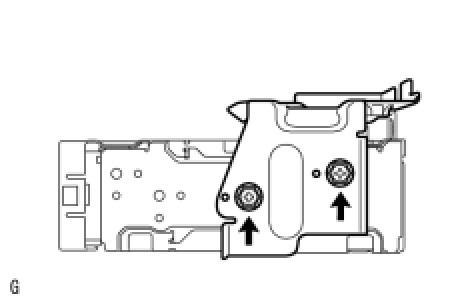

(a) Remove the 2 bolts and bracket.
