AUDIO / VISUAL: DISC PLAYER (for Ottoman): INSTALLATION

INSTALLATION





1. INSTALL NO. 1 DISC PLAYER BRACKET

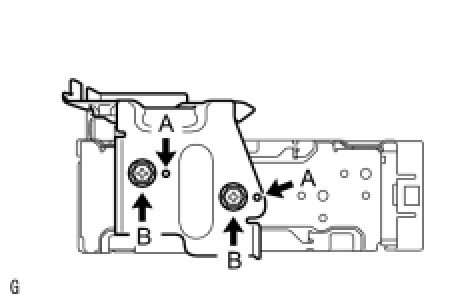

(a) Set the bracket's aligning protrusions labeled A into the disc player's holes.
(b) Install the bracket with the 2 bolts labeled B.





2. INSTALL NO. 2 DISC PLAYER BRACKET

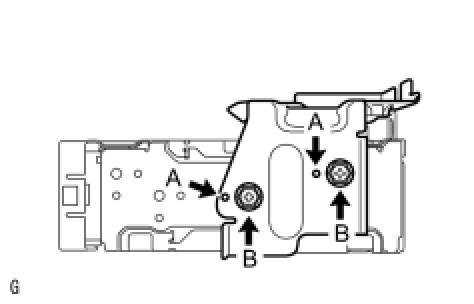

(a) Set the bracket's aligning protrusions labeled A into the disc player's holes.
(b) Install the bracket with the 2 bolts labeled B.
3. INSTALL DISC PLAYER CONTROLLER WITH BRACKET

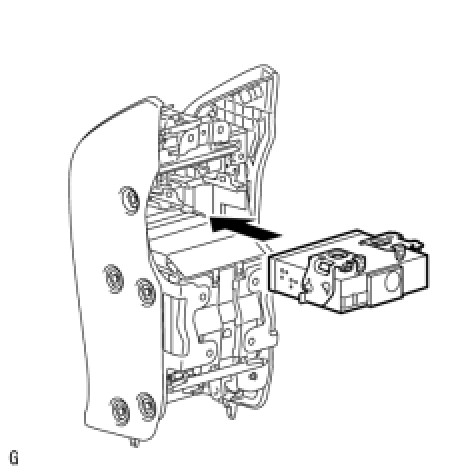

(a) Install the disc player to the rear console box.

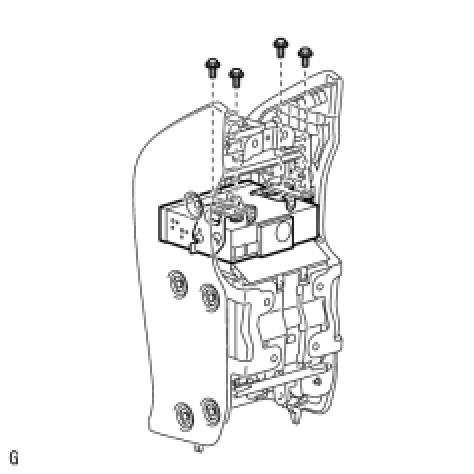

(b) Install the 4 bolts.





(c) Install the clips and connect all the connectors.
4. INSTALL REAR SEAT CONSOLE BOX ASSEMBLY Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
