Voice is not Recognized

NAVIGATION: NAVIGATION SYSTEM (for HDD): Voice is not Recognized

Voice is not Recognized

INSPECTION PROCEDURE

PROCEDURE

1. CHECK NAVIGATION SETTINGS

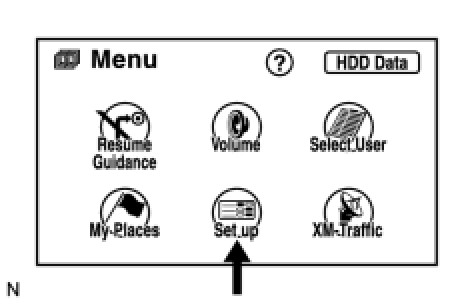

(a) Enter the "Menu" screen by pressing the "MENU" switch.
(b) Select "Set up".

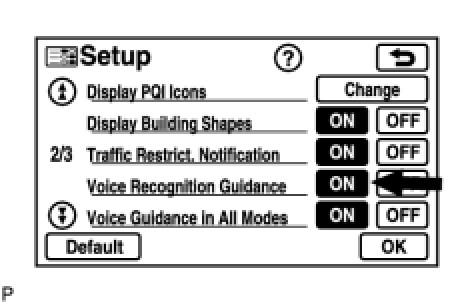

(c) Check that "Voice Recognition Guidance" is not OFF.
OK:
Voice Recognition Guidance is not OFF.
NG -- TURN VOICE RECOGNITION GUIDANCE "ON"
OK -- Continue to next step.

2. CHECK MICROPHONE (NAVIGATION CHECK MODE)




(a) Enter the "MICROPHONE & VOICE RECOGNITION CHECK" mode Navigation Check Mode.
(b) When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
(c) Push the recording switch and perform voice recording.
HINT: The recording limit is 5 seconds.
(d) Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.
OK:
All check results are normal.
NG -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
OK -- END
