Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory

NAVIGATION: NAVIGATION SYSTEM (for HDD): Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory

Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory

INSPECTION PROCEDURE

PROCEDURE

1. CHECK SATELLITE RADIO
(a) Check radio condition.

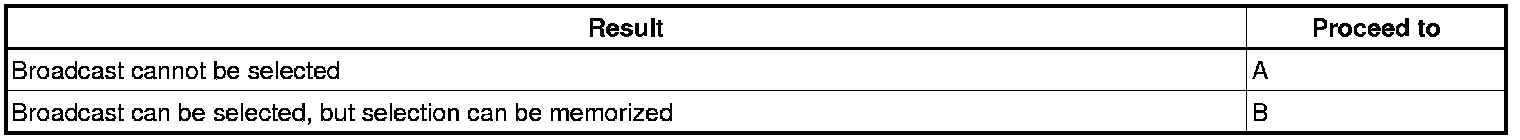

Result:





B -- CHECK SATELLITE RADIO
A -- Continue to next step.

2. CHECK CONTRACT CONDITIONS
(a) Check if the pay-type contract has been extended, or if the contract period is ended.
OK:
Pay-type contract is valid
NG -- TO RECEIVE PAY-TYPE BROADCASTS, CONTRACT MUST BE MADE WITH SATELLITE RADIO TUNER COMPANY
OK -- Continue to next step.

3. PERFORM ACTIVATION REFRESH BY REFERRING TO SATELLITE RADIO TUNER COMPANY WEB SITE (http://www/xmradio.com/refresh)
(a) Perform activation refresh by referring to satellite radio tuner company web site (http://www.xmradio.com/refresh/).
OK:
Malfunction disappears
NG -- CHECK DISPLAY
OK -- END
4. CHECK DISPLAY
(a) Check the display's screen.

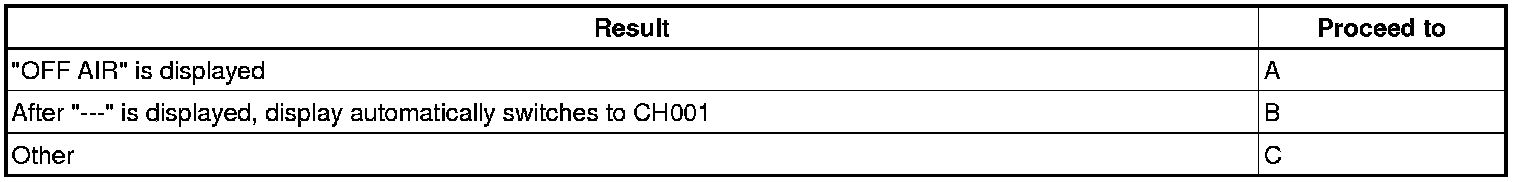

Result:





B -- CHANNEL BROADCAST HAS ENDED (CONFIRM WITH RADIO STATION)
A -- CHANNEL IS CURRENTLY NOT BEING BROADCAST. IF BROADCAST RESUMES, SELECTION CAN BE PERFORMED (CONFIRM WITH RADIO STATION)
C -- Continue to next step.

5. CHECK DTC
(a) Check for DTCs.

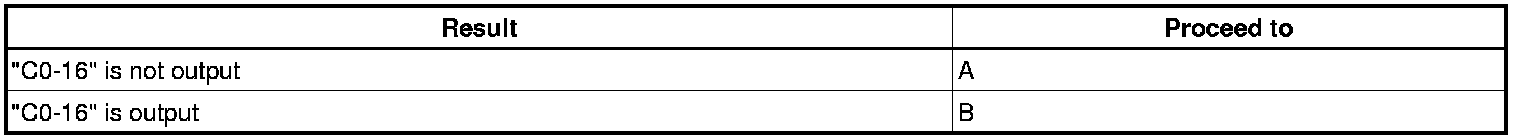

Result:





B -- REPLACE SATELLITE RADIO TUNER ASSEMBLY
A -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
6. CHECK SATELLITE RADIO
(a) Check if all preset channels have been erased.
OK:
Preset channels are all erased
OK -- CHECK BATTERY
NG -- Continue to next step.

7. ADD PRESET CHANNEL INTO MEMORY AGAIN
(a) Check if the preset channels that have been erased can be added into memory again.
OK:
Preset channels can be added into memory
NG -- CHECK DTC
OK -- Continue to next step.

8. CHECK BATTERY
(a) Check if the battery was replaced.
OK:
Battery was not replaced.
NG -- ADD PRESET CHANNEL INTO MEMORY AGAIN
OK -- Continue to next step.

9. CHECK DTC
(a) Check for DTCs.

Result:





B -- REPLACE SATELLITE RADIO TUNER ASSEMBLY
A -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
