Cannot Change from FM / AM to Satellite Radio

NAVIGATION: NAVIGATION SYSTEM (for HDD): Cannot Change from FM / AM to Satellite Radio

Cannot Change from FM / AM to Satellite Radio

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DIAGNOSIS MENU (SYSTEM CHECK MODE)
(a) Start the diagnostic mode Navigation System (for HDD).
(b) Check the connection condition of the satellite radio tuner.

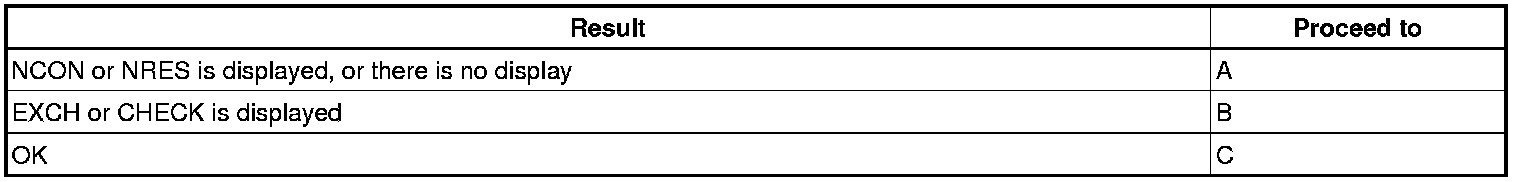

Result:





C -- REPLACE RADIO RECEIVER ASSEMBLY
B -- REPLACE SATELLITE RADIO TUNER ASSEMBLY
A -- Continue to next step.

2. CHECK CONNECTION OF SATELLITE RADIO TUNER
(a) Check if the wire harness is securely connected to the satellite radio tuner.
OK:
Wire harness is securely connected.
NG -- SECURELY CONNECT WIRE HARNESS
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
