Fail-Safe Chart








NAVIGATION: NAVIGATION SYSTEM (for HDD): FAIL-SAFE CHART

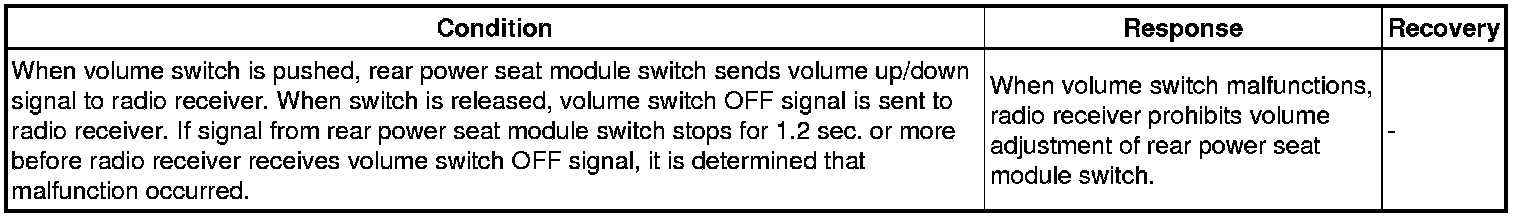

FAIL-SAFE CHART

Rear power seat module switch (Volume switch):
