Bluetooth Tel Check Mode

NAVIGATION: NAVIGATION SYSTEM (for DVD): BLUETOOTH TEL CHECK MODE

BLUETOOTH TEL CHECK MODE
HINT: Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed area may not be shown the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE Navigation System (for DVD)
2. "BLUETOOTH" TEL CHECK





(a) Select ""Bluetooth" TEL Check" from the "Diagnosis MENU" screen.

3. "BLUETOOTH" CHECK





(a) Select ""Bluetooth" Check" from the ""Bluetooth" Handsfree Check Menu" screen.

(b) Select "Serial Communication Log" from the ""Bluetooth" Check Menu" screen.








(1) The communication log data in the multi-display are displayed on this screen.
HINT: The displayed data can be used as a reference.

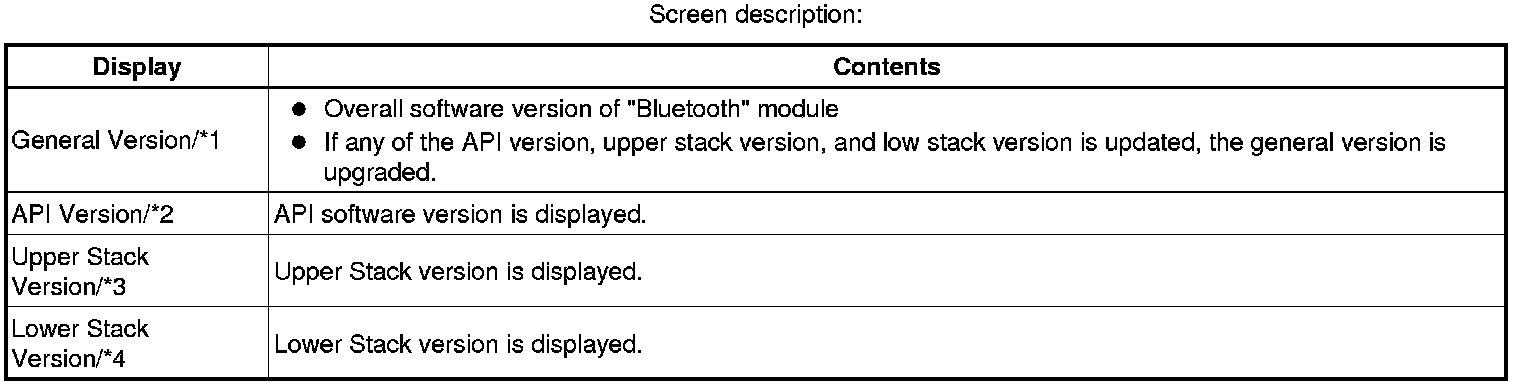

(c) Select "Software Version" from the ""Bluetooth" Check Menu" screen.








(1) Check the software version of the "Bluetooth" module.





HINT: This function is controlled by the multi-display.

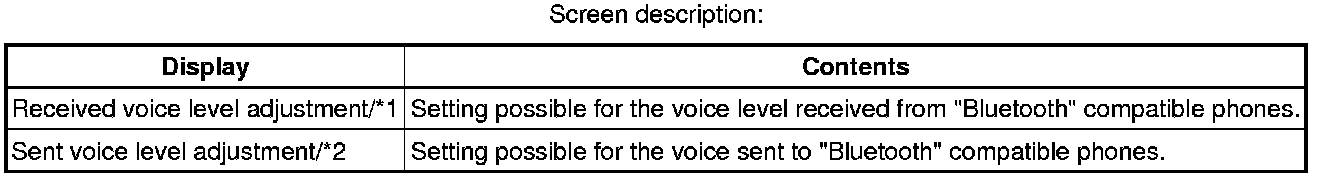

4. HANDSFREE VOICE QUALITY SET





(a) Select "Handsfree Voice Quality Set" from the ""Bluetooth" Handsfree Check Menu" screen.





(b) Check the handsfree voice level.





HINT: This function is controlled by the multi-display.
NOTE:
"Voice Quality Type" should not be changed.
